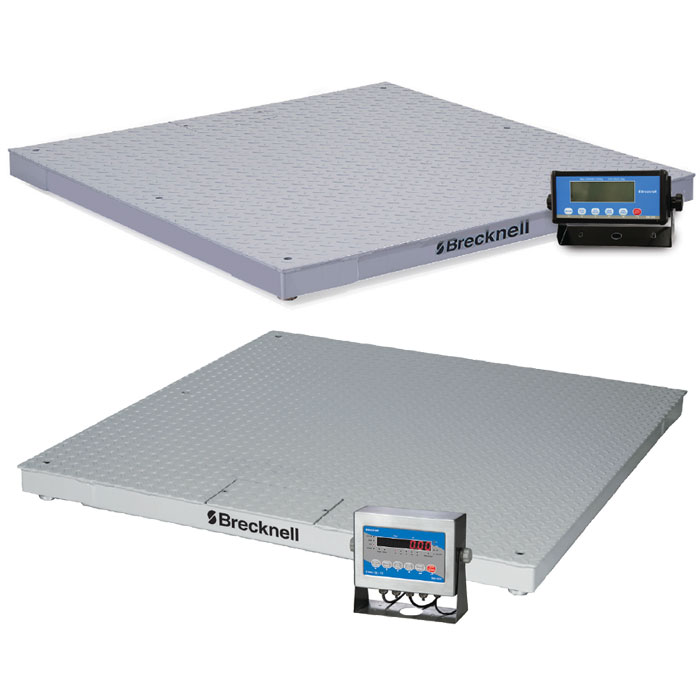

Brecknell DCSB-SBI Legal-for-Trade Floor Scales
This robust DCSB Floor Scale and Indicator System is used for a wide range of general weighing applications where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts. Ideal for most warehouse and shipping areas or where goods need to be consistently weighed.
Brecknell DCSB-SBI Legal-for-Trade Floor Scales
Legal for Trade
Legal For Trade

Specifications Chart

This robust DCSB Floor Scale and Indicator System is used for a wide range of general weighing applications where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts. Ideal for most warehouse and shipping areas or where goods need to be consistently weighed.
  • Accuracy - NTEP at 5000d, Class III
  • Power - 9V 600mA power supply with USA/UK/EU adapters (included) and four AA batteries (not included)
  • Construction - Carbon steel fabrication with 0.25" / 6 mm thick safety tread top plate & heavy duty welded channel under structure
  • Indicator - Comes fully calibrated with the robust aluminum SBI 240 legal-fortrade indicator
  • Capacity - 2500 lb x 0.5 lb / 1250 kg x 0.2 kg - 5000 lb x 1 lb / 2500 kg x 0.5 kg - 10,000 lb x 2 lb / 5000 kg x 1 kg
  • Display - 6½ digits 1" / 25 mm high, large seven segment LCD with white backlight
  • Operator Keys - Setup, Print/Func, Acc/Total, Unit/Data, Tare/Preset, Zero/On/Off
Brecknell Brecknell DCSB-SBI Legal-for-Trade Floor Scales

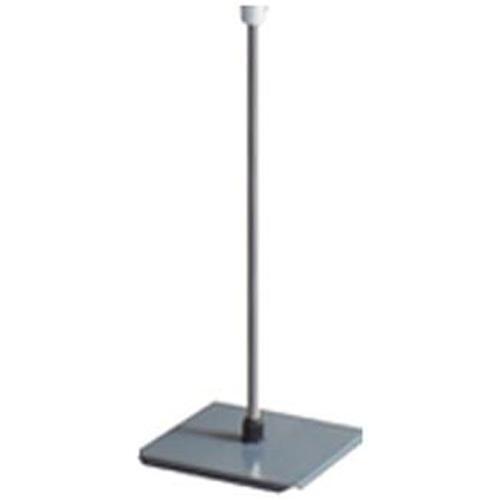

Salter Brecknell SBI-240 Floor Indicator Stand
Salter Brecknell SBI-240 Floor Indicator Stand, add $127.50
Salter Brecknell SBI-521 Floor Indicator Stand
Salter Brecknell SBI-521 Floor Indicator Stand, add $127.50

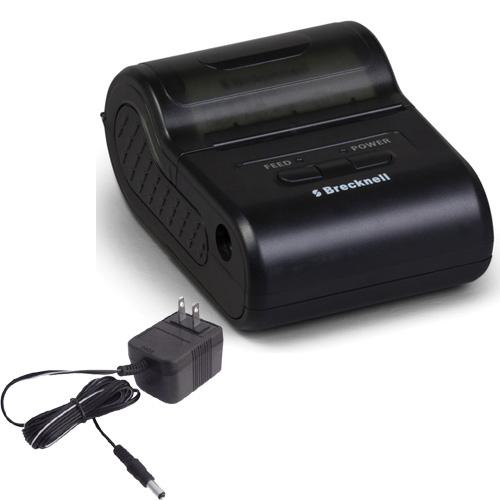

Salter Brecknell CP103 Thermal Printer with Power Adapter
Salter Brecknell CP103 Thermal Printer with Power Adapter , add $375.00

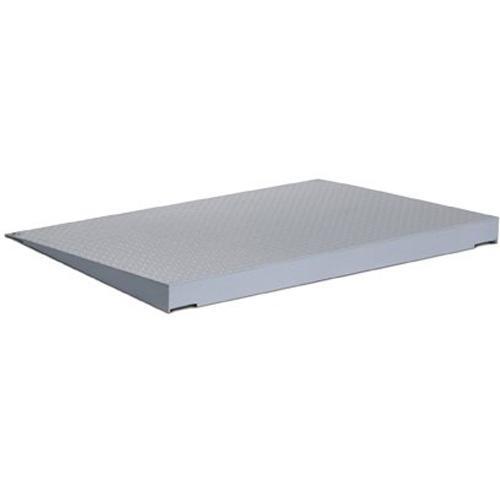

Brecknell 816965005437 Ramp, 36 x 36 for DSB-Series
Brecknell 816965005437 Ramp, 36 x 36 for DSB-Series, add $595.00
For 36 x 36 in Only
For 48 x 48 in Only
Salter Brecknell 52775-0020 Ramp, 48 x 36
Salter Brecknell 52775-0020 Ramp, 48 x 36, add $649.00
For 59 x 59 in Only
Salter Brecknell 52775-0038 Ramp, 60 x 36
Salter Brecknell 52775-0038 Ramp, 60 x 36, add $650.00

DCSB Specififications
Deck Construction: Fabricated from high quality carbon steel with a 1/4" / 6 mm hard wearing checker plate top deck structure and specially designed folded channel understructure to help maximize strength where needed
Finish: Powder coated finish
Load Cell: NTEP/OIML approved, IP68 potted 350 ohm +/- 3.5Ħ Load Cell Rated Output: 3 mv/V
J-Box: IP65 stainless steel junction box with floor scale top access for ease of installation and service Interface Cable Length: 16�L/ 5 m
Leveling Feet: Four adjustable leveling feet with top hole access for quick installation
Threaded Eye Bolts: Four threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corner protection to prevent damage to leveling feet
Overload Protection: 150% of rated capacity
Floor Scale Height Adjustment: min 3.1" / 79 mm; max 4.1" / 104 mm
Shipping Weight with Indicator: DCSB3636: 154 lb/ 70 kg - DCSB4848: 265 lb / 120 kg - DCSB5959: 355 lb / 161 kg


SBI 240 Specififications
Indicator Construction: Die cast aluminum indicator housing with adjustable steel desk/wall bracket
Display: 6.5 digits 1" / 25 mm high, large seven segment LCD with white backlight
Operator Keys: Setup, Print/Func, Acc/Total, Unit/ Data, Tare/Preset, Zero/On/Off
Functions: Weighing, counting, check weighing, precentage weighing and accumulation Unit: lb, oz, lb/oz, kg, g, pcs, %
Protocol: Standard NCI interfaces to most common shipping software including USPS™ Worldship Online
Load Cell Capability: Can run up to four 350 ohm load cells
Excitation: 5 VDC up to 55mA Internal ADC: 16,000,000
Display Resolution: 100-100,000d primary units / 100-125,000d second unit
Communication: One USB (VCP) and one RS-232 bi-directional full duplex port
Floor Scale Connection: 9.8" / 250 mm cable is fixed to indicator side with quick release connector. An additional 16.4" / 5 mm of cable is connected to the floor scale junction box.
Annunciators: -0-, motion, gross, net, tared, total, pcs, lb, kg, lo, ok, hi
Calibration: Front panel accessible
Power: 9V 600mA, 110-230V switch mode external power supply and comes standard with USA/UK/EU interchangeable plug adapters or four AA batteries
Battery Life: 32 hours with backlight, 45 hours no backlight
Time and Date: Year/Month/Day
Operating Temperature: 14° F to 104° F / -10° C to 40° C
Dimensions (L x W x H): 9.5" x 4.9" x 2.5" 241 mm x 125 mm x 64 mm
Certifications: CE, NTEP CC #15-084 (indicator), Measurement Canada AM-5998, NTEP COC #02-070 (base) RoHS 3, UKCA, UL approved power adapter, WEEE



SBI-521 LED Indicator Indicator Construction: IP65 heavy duty stainless steel Indicator housing
Display: 0.7" / 17 mm LED display
Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Functions: Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CHG
Unit: kg, lb, lb:oz, PCS, %
Display Resolution: Up to 50,000 graduations
Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485
Digital Calibration: Front panel calibration and configuration
Power: 6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer
Battery Life: Up to 30 hours in between re-charges
Certifications: NTEP at 5,000d, Class III, CC #11-119

Specifications

Model 810036380041
SBI240DCSB-36x362500
810036380058
SBI240DCSB-48x485000
810036380072
SBI240DCSB-59x595000
810036380065
SBI240DCSB-48x4810000
810036380089
SBI240DCSB-59x5910000
816965005352
SBI521DCSB-48x485000
810036380096
SBI521DCSB-59x595000
816965005376
SBI521DCSB-48x4810000
810036380102
SBI521DCSB-59x5910000
Price Brecknell 810036380041 DC
$1,095.00
buy now
Brecknell 810036380058 DC
$1,195.00
buy now
Brecknell 810036380072 DC
$1,495.00
buy now
Brecknell 810036380065 DC
$1,295.00
buy now
Brecknell 810036380089 DC
$1,595.00
buy now
Brecknell 816965005352 DC
$1,395.00
buy now
Brecknell 810036380096 DC
$1,895.00
buy now
Brecknell 816965005376 DC
$1,695.00
buy now
Brecknell 810036380102 DC
$1,995.00
buy now
Capacity x Redability 2500 x 0.5 lb 5000 x 1 lb 5000 x 1 lb 10000 x 2 lb 10000 x 2 lb 5000 x 1 lb 5000 x 1 lb 10000 x 2 lb 10000 x 2 lb
Platform Size

36 x 36 in

48 x 48 in

59 x 59 in

48 x 48 in

59 x 59 in

48 x 48 in

59 x 59 in

48 x 48 in

59 x 59 in

Legal for Trade NTEP CC #15-084 (indicator) - NTEP COC #02-070 (base) NTEP CC #11-119 (indicator) - NTEP COC #02-070 (base)
Functions Weighing, counting, check weighing, precentage weighing and accumulation Unit: lb, oz, lb/oz, kg, g, pcs, % Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CH
Communication USB, RS-232 RS-232
Rating - IP65
Protocol Standard NCI (USPS™, Worldship) -
Display 6.5 digits 1" / 25 mm high, large seven segment LCD with white backlight 0.7" / 17 mm LED display Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Indicator SBI-240 (Die cast aluminum) SBI-521 (stainless steel)
Battery Life 32 hours 30 hours
Operator Keys Setup, Print/Func, Acc/Total, Unit/ Data, Tare/Preset, Zero/On/Off Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
