The EC-2 provides the features you need for counting and weighing and is available in four capacities from six to sixty pounds. Connect to a second platform to expand your capacity
Designed with CAS reliability, the EC-2 Series Counting Scale stands alone its field. High accuracy and simple to use. Optional label or receipt printer. Great for use in manufacturing, parts shops, hardware stores, etc.
The EC-2 provides the features you need for counting and weighing and is available in four capacities from six to sixty pounds. Connect to a second platform to expand your capacity.
6, 15, 30, and 60 lb capaciities
Easily Connects Second Platform to Expand Capacity
Save Up to 200 Presets
Up to 4 External Devices can be used simultaneously
Lb/kg or Lb/g Switchable
Dual channel for second platform (up to 10 tons - 4 load cell platform)
Soft touch tact keyboard
Large easy to read LCD display
Three backlight colors as HI/OK/LO indicators
Rechargeable Battery Included
Accumulation mode
Negative counting
Key command function
OPTIONS
Light Tower
RP Series Remote Platform
HFS Series Floor Scale
DEP-50 Receipt Printer
DLP-50 Label Printer
WEIGHT/COUNT COMPARISON FUNCTION
Set the weight or count range and the EC-2 will indicate whether the actual weight or count is HI, LO, or OK, with alarm beep sounds and color display indicators. The optional Light Tower offers a larger visual alternative

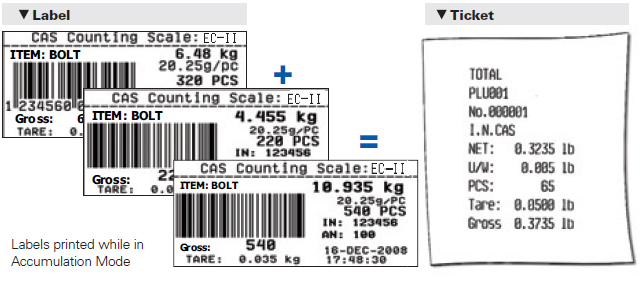

LABEL & RECEIPTS
Connect the EC-2 Dual Channel Counting Scale to the optional DEP-50 Receipt Printer or DLP-50 Label Printer. Print the data, weight, unit weight, quantity, tare, gross, item number, & item name (ASCII code).
Model
EC2-6
EC2-15
EC2-30
EC2-60
Price
$415.00
$415.00
$415.00
$415.00
Weighing Capacity
6 x 0.0002 lbs
15 x 0.0005 lbs
30 x 0.001 lbs
60 x 0.002 lbs
3 x 0.0001 kg
6 x 0.0002 kg
15 x 0.0005 kg
30 x 0.001 kg
3,000 x 0.1 g
6,000 x 0.2 g
15,000 x 0.5 g
30,000 x 1 g
External Resolution
1/30,000
Internal Resolution
600,000
Display Type
LCD
Stabilization Time
< 2 Seconds
Weight Units
g/kg/lb
Zero Range
±2% (Zero Range), ±10% (Inital Zero Range)
Tare Range
Full Capacity by Subtraction
Interface
RS-232C
Safe Overload
120% of Capacity
Operating Temp.
-10° C ~ 40° C / 14° F ~ 104° F
Power Source
AC Adapter DC 12V / 850 mA Rechargeable Battery - 6V, 5Ah
Battery Life
80 hrs continuous use w/12 hr recharge time

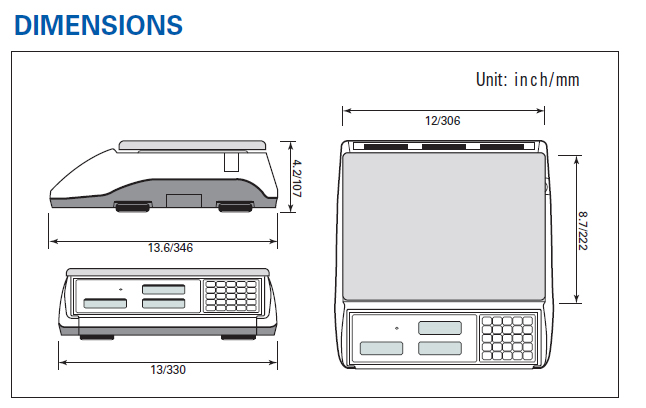

Platter Size (inch/mm)
12 (W) x 8.7 (D) / 306 (W) x 222 (D)
Dimensions (inch/mm)
13 (W) x 13.6 (D) x 4.2 (H) / 330 (W) x 346 (D) x 107 (H)
