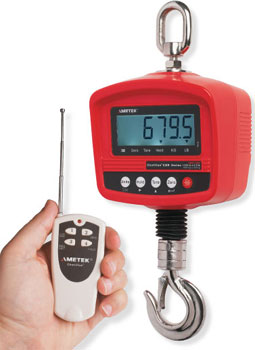

The CHATILLON® CDR Series digital scale is an economical weighing solution for general purpose weighing. The CDR Series is available in five capacities with a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, backlighted LCD display that indicates measured values in either pounds (lbs) or kilograms (kg). The CDR Series is powered using rechargeable battery pack. The scale can display the peak weight. You may add accessories and tare out their weight up to 100% of the scale’s rated capacity. Operation is simple using the integral membrane-style keypad.
The standard remote controller allows users to change units, clear measurements, zero and tare out weight and capture peak weight at a distance of up to 100 feet (30m). The remote controller may not be used with the CDR-66-N.
The CHATILLON® CDR Series digital scale is an economical weighing solution for general purpose weighing. The CDR Series is available in five capacities
with a measurement accuracy of better than 0.2% full scale. The scale features an easy-to-read, backlighted LCD display that indicates measured values in
either pounds (lbs) or kilograms (kg). The CDR Series is powered using rechargeable battery pack. The scale can display the peak weight. You may add
accessories and tare out their weight up to 100% of the scale’s rated capacity. Operation is simple using the integral membrane-style keypad
The standard remote controller allows users to change units, clear measurements, zero and tare out weight and capture peak weight at a distance of up to
100 feet (30m). The remote controller may not be used with the CDR-66
The CDR Series scale is supplied with hanging loop, S-hook, charger/adapter and power converter/surge protector for USA, EU, UK, Japan, Thailand, and
Australian power configurations. The CDR Series is supplied with a Certificate of Calibration with NIST data
Features
- Displays Lb and Kg units of measure
- Rugged Housing
- Peak Weight Capture
- 300% Safety Overload (500% Ultimate Overload)
- Rechargeable Battery
- 1 Year Warranty
| Model w/ NIST Cert |
CDR-66-N |
CDR-132-N |
CDR-330-N |
CDR-660-N |
CDR-1320-N |
| Price |
$296.65
|
$381.65
|
$505.75
|
$590.75
|
$675.75
|
| Capacity |
66 lb x 0.02 lb
30 kg x 10 g |
132 lb x 0.05 lb
60 kg x 20 g |
330 lb x 0.1 lb
150 kg x 50 g |
660 lb x 0.2 lb
300 kg x 100 g |
1320 lb x 0.5 lb
600 kg x 200 g |
| CDRI Remote |
Not Available |
Included |
Included |
Included |
Included |
| Accuracy |
Better than 0.2% of full scale |
| Safe Overload |
300% of rated capacity |
| Ultimate Overload |
500% of rated capacity |
| Display |
LCD, Backlighted |
| Display Rate |
15Hz |
| Resolution |
6000:1, 3000:1 (CDR-66-N) |
| Conformance (CE) |
EN55011, EN55024, EN61000, IEC 61000-4 |
| Data Sampling Rate |
60Hz |
| Power |
Rechargeable Battery 6V |
| Recharge Time |
Typically 12 hrs |
| Continuous Operation |
30 hrs (typical) |
| Key Pad |
Membrane-style (On/off, Units, Tare/Zero, Hold) |
| Operating Temperature |
32o to 104oF (0o to 40oC) |
| Storage Temperature |
-4o to 104oF (-20o to 40oC) |
| Instrument Weights |
5 lbs (2.5 kg) |
| Shipping Weight |
8 lbs (3.6 kg) |
|
