Chatillon DFS-II-R-ND Force Gauge for Smart Load and Torque Sensor Chatillon
The DFS II-R-ND allows the user to change SLC load cells adding the flexibility of having one base indicator and several load cells to meet different testing needs. The Chatillon® DFS II Series offers the best price performance of any digital force gauge available today. Our brand new DFS II Series of Digital Force Gauges is the first of their type to offer wireless data transfer and communication via integral Bluetooth.
Chatillon DFS2-R-250G Digital Force Gauge - 0.5 x 0.0001 lbf call now

Specifications Chart

View Test Stands

Specifications Chart

The DFS II-R-ND allows the user to change SLC load cells adding the flexibility of having one base indicator and several load cells to meet different testing needs.

The Chatillon® DFS II Series offers the best price performance of any digital force gauge available today. This compact, easy-to-use force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS II may be equipped with integral loadcells or smart remote sensors for load measurement or torque measurement.

Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models. A large, easy-to-read, high resolution, full color dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, load comparisons, % and sharp break detection, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be ?hidden? from the operator. The DFS II offers password protection for gauge set ups.

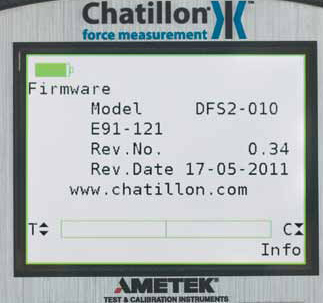

The DFS II now also includes multiple language interfaces. The DFS II is able to change the display language from English to Spanish, French, German, Portuguese, and Chinese. The user can view the screen in color and a local language.

The DFS II gauge comes standard with an RS232 cable, carrying case, battery adapter/charger, testing accessories and NIST Certificate of Calibration with data. The DFS II is supplied standard with Bluetooth® capability for communications with the gauge. RS232 and USB communication capabilities are also onboard.

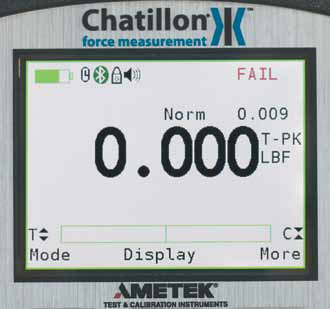

Easy-to-Read Display
A large, easy-to-read full color LCD can display readings, icons and visually indicate gauge or test status using various colors. The high resolution display features brightness adjustments and can be inverted when required. The display can even be ?hidden? at the press of a button. A load bargraph indicating load direction, measured load and safe load and helps prevent overloads: the load bar changes from green to red to indicate proximity to load cell capacity. The integral loadcells feature mechanical overload protection at 150% Full Scale.

Single Touch Operation
The rubber keypad features dedicated and dynamic function keys. The function keys correspond to displayed options and guide the user during operation. A navigation pod lets you navigate through the menus and to scroll and change values quickly. The innovative ?i? key can be used to display critical information on the gauge such as gauge capacity and resolution, battery life remaining, loadcell overload history, even service information including last calibration date, or the location of service centers.

Chatillon DFS-II-R Series Digital Force Gauges

Price:

FREE Shipping!
currently in stock


Load Sensors:
SLC-250G
0.55 x 0.001 lb

add
SLC-0002
2 x 0.0002 lb

add
SLC-0005
5 x 0.0005 lb

add
SLC-0010
10 x 0.001 lb

add
SLC-0025
25 x 0.002 lb

add
SLC-0050
50 x 0.005 lb

add
SLC-0100
100 x 0.01 lb

add
SLC-0200
200 x 0.02 lb

add
SLC-0500
500 x 0.05 lb

add
SLC-1000
1000 x 0.01 lb

add
SLC-2000
2000 x 0.02 lb

add $1325.00
SLC-5000
5000 x 0.5 lb

add
SLC-10000
10,000 x 1 lb

add
more about SLC Load Sensors:

Torque Sensors:
STS-0003
3 x 0.005 lb

add
STS-0012
12 x 0.002 lb

add
STS-0050
50 x 0.005 lb

add
STS-0100
100 x 0.01 lb

add
STS-0200
200 x 0.02 lb

add
more about STS Torque Sensors:

Dependable Measurements
The DFS II Series features an integral loadcell sensor that delivers repeatable, accurate results. The innovative load bargraph shows dynamic load, direction of load and warns you of pending overload conditions including by changing from green, to yellow, then red. Smart technology in the gauge even keeps track of overload history to aide in maintenance and troubleshooting.

Break Detection
Break detection is provided and two types of breaks are supported. A sharp break can be used to detect whenever the load measurement drops 5% from a peak load. Alternatively, you may override the sharp break and setup the gauge with a % break detector. The % break detector allows you to set the drop percentage that is used to define a break. This type of break is useful on samples with high elastic characteristics.

Contact Closure
The DFS II Series may be used to detect a contact break. Using a jumper on Pins 8 and 10, the gauge will detect when a contact is ?opened? and freeze the display reading showing the force required to break the contact.

Load Averaging
Two methods of load averaging are standard with your DFS II.Load averaging is useful to determining load characteristics of long test periods or for samples with characteristically noisy load readings.

Load Method
This method allows you to define a load threshold. The gauge will begin taking readings once the load threshold has been reached and will continue to take and average readings until the measured load falls below the threshold value.

Time Method
The Time method allows you to establish your load averaging based on a load threshold and time duration. The load threshold determines the start of the averaging, while the time duration defines the length of the test period. The gauge will begin taking readings when the threshold is reached and will continue to take and average readings until the time duration has expired.

Comprehensive Results
The DFS II Series supplies you with comprehensive results that are easy to view and understand. The gauge displays:

  • Measured Result with Units
  • Operating Mode
  • Pass-Fail Result
  • High and Low Load Results
  • Saved Results
  • Statistical Calculations; Average with MIN and MAX Results, Cv with Average and Standard Deviation, % Differentiation between Successive Results, Standard Deviation, Graphical representation of saved results

Outputs
The DFS II Series comes standard with digital and analog outputs. RS232 outputs are supported with baud rates from 9600 to 115,600. Simply select the baud rate whether or not you want to gauge to transmit with or without units. You may select the Mitutoyo output when communicating with a Mitutoyo device. Or, you may use the ±2V analog output to drive alarams or other ancillary devices.

The DFS II also communicates through the USB connection using digital protocols. If you want to operate without cables, the DFS II is also supplied standard with Bluetooth® capability making it easy to get results without a cable. The DFS II is supplied standard with standard Chatillon protocol and will work with existing test stands. The gauge also supports Mitutoyo and Alternate protocols.

Filtering
You may filter the display and peak readings with the DFS II Series. The default display rate is 10Hz, however, this may be lowered to 4Hz to accomodate noisy signals. The peak sample rate may be specified as 10Khz, 1Khz or 10Hz to suit specific application needs. A simple menu structure is used to specify filter rates.

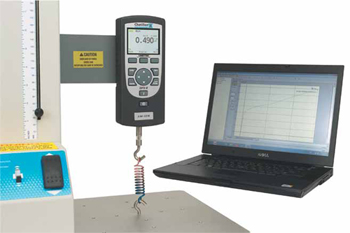

Test Stand Compatibility
The DFS II Series has a universal mounting backplate that enables you to fit the gauge to commonly used Chatillon force testers including the MT Series and LTCM Series testers.

Calibrate and Verify Status
The DFS II Series incorporates flash memory and hosts a set of self-diagnostic functions for monitoring the display, keypad and electronics. Using the ?i? key, you have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge. Zero offset verification is standard and a step-by-step calibration procedure is built-in allowing you to calibrate your DFS II gauge with certified standards.

Supplied Ready-To-Go
Regardless of the configuration ordered, your DFS II Series is supplied ready-to-go. The gauge and accessories are supplied in a durable carrying case that is designed for all components including adapters, load cells, software, and battery charger. The units are delivered with a long life NiMH battery cell that is rechargeable. The charger supplied is a universal charger: no need for adapters for different power supplies. The compliment of adapters is comprehensive and includes a hook, compression tip, extension rod, pointed tip, chisel tip, and a notch tip: everything that you need to get started. And, the DFS II Series is designed to mount directly, or with an available kit, on Chatillon manual and motorized test stands.



This is the unit to select if there is a need for multiple ranges of measurements required: one unit can do it all. It is also more economical to purchase the DFS II-R-ND with SLC load cells than purchasing several individual gauges for the different range applications. The SLC load cells for the non-dedicated models are also available in higher ranges, to 10,000 lbf, allowing for a wider range of applications. The gauge will operate the same as if it were an integral load cell and all functions will operate normally.

Accuracy of the Non-Dedicated Models
There is a small price to pay for the additional range and economical flexibility of having non-dedicated remote load cells. If the non-dedicated remote load cell is chosen, the load cell is not dedicated to that model so the calibration is such that it allows for some variance when connected to different gauges. These units carry an accuracy of ±0.25% of full scale for standard ranges and ±0.50% of full scale for the extended ranges making this an accurate tool given the flexibility.

Dedicated SLC Remote Load Cells
The DFS II Series with dedicated remote load cells is the ideal solution for applications that require a measurement where there is no room for the gauge. The gauge may be handheld our remotely mounted and the load cell may be placed right where it needs to be to take the reading. This is the answer if one load cell will address all of the testing needs or if multiple gauges will be used. The user can have the DFS II Series gauge where it needs to be so that a reading may be easily taken or so that it is not interfering with the test being performed. The gauge will operate the same as if it were an integral load cell and all functions will operate normally.

Accuracy of the Dedicated Remote Models
If the dedicated remote load cell is chosen, the accuracy in the ranges of the standard integral load cells applies. The load cell is dedicated to that model and may be calibrated specifically for that gauge. These units carry an accuracy of ±0.10% of full scale: a highly accurate device.

Non-Dedicated SLC Remote Load Cells
If you need flexibility in your applications, the DFS II Series with non-dedicated remote load cells is the answer. As is the case with the dedicated load cells, the gauge may be handheld our remotely mounted and the load cell may be placed right where it needs to be to take the reading. However, this configuration also gives the user the flexibility of having interchangeable load cells that may be used with a single gauge.

Non-Dedicated STS Remote Torque Sensors
In addition to the force measurement capability of the DFS II Series with non-dedicated remote load cells, Chatillon also offers the STS Series of remote torque sensors. When combined with the DFS II-R-ND Series, these rugged and accurate sensors turn your force gauge into a torque measurement device: no need to purchase another gauge. As is the case with the dedicated load cells, the gauge may be handheld our remotely mounted and the torque sensor may be manipulated to take the reading. This configuration also gives the user the flexibility of having force and torque measurement in a single gauge. This is the unit to select for maximum flexibility: one unit and interchangeable sensors can do it all. The STS series of torque sensors is available in ranges from 3 in-lb to 200 in-lb. The gauge will operate the same as if it were an integral load cell and all functions will operate normally.

Accuracy of the STS Remote Torque Sensors
There is a small price to pay for the additional range and economical flexibility of having non-dedicated remote torque sensors. If the non-dedicated remote torque sensor is chosen the torque sensor is not dedicated to that model so the calibration is such that it allows for some variance when connected to different gauges. These units carry an accuracy of ±0.30% of full scale for standard ranges making this an accurate tool given the flexibility.

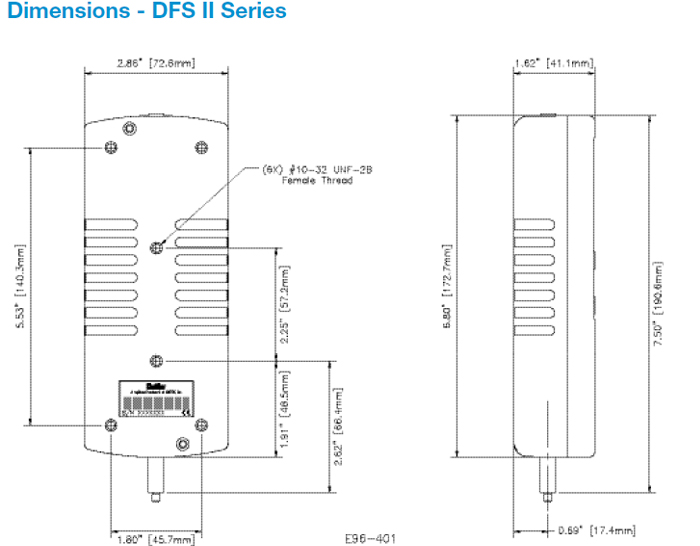

Specifications

Model DFS2-R-ND
Price Chatillon DFS2-R-ND Serie
$1,895.00
buy now
Certification NIST Certificate of Calibration with data
Accuracy: +0.1% of Full Scale - Non dedicate remote cells and torque sensors are 0.25% and 0.3%
Maximum Overload 150% of Rated Capacity
Tare Capacity 10% of Rated Capacity
Resolution: 10,000:1
Peak Capture Rate 10,000 Hz
Data Sampling 10 KHz
Display Update Rate 10 Hz
Data Save Up to 100 Results
Power Battery (Nickel Metal Hydride) or direct AC 120/230Vac
Battery Life With Dimming ON and Bluetooth OFF: 20 Hours
With dimming OFF and Bluetooth OFF: 16 Hours
With dimming ON and Bluetooth ON: 16 Hours
With dimming OFF and Bluetooth ON: 12 Hours
Operating Temperature 440°F to 110°F (5°C to 45°C)
Outputs Bluetooth®, RS232, USB and +2V analog output
Multiple Language Interfaces ,English, Spanish, French, German, Portuguese and Chinese
Instrument Weight 1.5 lbs (0.7 kg)
Shipping Weight: 4 lbs (2 kg)

Included Accessories

Part No. Image Description Capacity
SPK-FMG-008A Chisel Point 100 lbf (500 N)
SPK-FMG-008B Chisel Point 500 lbf, 2.5 kN
SPK-FMG-009A Point Adapter 100 lbf (500 N)
SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN
SPK-FMG-010A Notch Adapter 100 lbf (500 N)
SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN
SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N
SPK-FMG-011B Flat Adapter 5/16-18F 500 lbf, 2.5 kN
SPK-FMG-012A Hook, Low Capacity #10-32 50 lbf 225 N
SPK-FMG-012B Hook, Medium Capacity #10-32 100 lbf 500 N
SPK-FMG-012C Hook, Stationary 5/16-18 500 lbf, 2.5 kN
SPK-FMG-013A Extension Rod, 6? (152mm), Low Capacity (#10-32) 100 lbf 500 N
SPK-FMG-013B Extension Rod, 6? (152mm) (5/16-18F) 500 lbf, 2.5 kN
SPK-DF2-UNIV Universal Battery Charger -
SPK-DF-118 DFX Series Carrying Case -
SPK-DF-RS232 RS232 Cable, 10? (3m) -
NC003164-D TCD WEDGE Software -


Chatillon Remote Force Measurement Sensors


The CHATILLON® SLC Series loadcells are full-bridge strain gauge sensors complete with 15-pin plug. These loadcells are used with the Chatillon DFS-R-ND Series digital indicator. They may also be used with the Chatillon TCD Series digital force testers (recalibration with a TCD Series Console is required).

The loadcell values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator or TCD Series force tester, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured load measurement instrument. The loadcells are connected to the DFS-R-ND or TCD Console with a retractable cord that extends fully to nearly 9 ft. (3 m).

Features
  • Plug & Play Operation
    • DFS-R-ND Gauge
    • TCD110, TCD225 or TCD1100 Digital Testers
  • Accuracy up to 0.1% FS
  • NIST Calibration with Data
  • 1 Year Warranty
Model SLC-250G SLC-0002 SLC-0010 SLC-0025 SLC-0050 SLC-0100 SLC-0200 SLC-0500 SLC-1000 SLC-2000 SLC-5000 SLC-10000
Price Chatillon SLC-250G Remote
$1,095.00
buy now
Chatillon SLC-0002 Remote
$1,095.00
buy now
Chatillon SLC-0010 Remote
$1,095.00
buy now
Chatillon SLC-0025 Remote
$1,095.00
buy now
Chatillon SLC-0050 Remote
$1,152.80
buy now
Chatillon SLC-0100 Remote
$795.00
buy now
Chatillon SLC-0200 Remote
$895.00
buy now
Chatillon SLC-0500 Remote
$1,152.80
buy now
Chatillon SLC-1000 Remote
$795.00
buy now
Chatillon SLC-2000 Remote
$2,995.00
buy now
Chatillon SLC-5000 Remote
$2,295.00
buy now
Chatillon SLC-10000 Remot
$2,995.00
buy now
lbf 0.5 x 0.0001 2 x 0.0002 10 x 0.001 25 x 0.002 50 x 0.005 100 x 0.01 200 x 0.02 500 x 0.05 1000 x 0.01 2000 x 0.02 5000 x 0.5 10,000 x 1
kgf 1 x 0.0001 1 x 0.0001 5 x 0.0005 10 x 0.001 25 x 0.002 50 x 0.005 100 x 0.01 250 x 0.02 500 x 0.05 1000 x 0.1 2500 x 0.2 5000 x 0.5
N 2.5 x 0.0005 10 x 0.001 50 x 0.005 100 x 0.01 250 x 0.02 500 x 0.05 1000 x 0.1 2500 x 0.2 5000 x 0.2 10,000 x 1 25,000 x 2 50,000 x 5
gf 250 x 0.05 1000 x 0.1 5000 x 0.5 10000 x 1 25000 x 2 50000 x 5 - - - - - -
ozf 8 x 0.002 32 x 0.005 160 x 0.02 400 x 0.05 800 x 0.1 1600 x 0.2 - - - - - -
Deflect 0.013 +0.004? 0.015 +0.004? 0.006 +0.003? 0.008 +0.003?? 0.012 +0.003? 0.018 +0.003? 0.013 +0.003? 0.011 +0.003?
Accuracy +0.25% FS
Input Resistance 1000 ohms ±100
Output Resistance 1000 ohms ±100
Rated Output 2.0 mV/V
Safe Overload 150% Full Scale
Non-Linearity ±0.05% Full Scale
Hysteresis ±0.05% of Full Scale
Zero Balance ±+0.1% of Full Scale
Operating Temperature 40°F to 110°F - 5°C to 45°C
Instrument Weight 1 lb (0.5 kg)
Shipping Weight 1.5 lbs (0.7 kg)

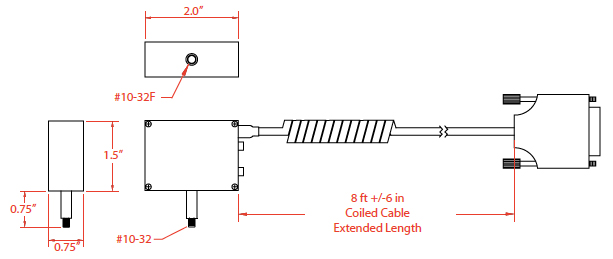

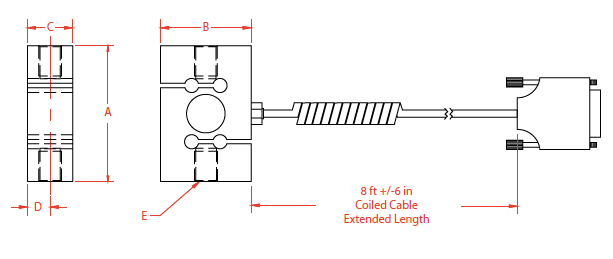

Capacity A B C D E
50 lbf 2.48? 2.0? 0.61? 0.31? 1/4-28F
100 lbf 2.48? 2.0? 0.61? 0.31? 1/4-28F
200 lbf 2.48? 2.0? 0.61? 0.31? 1/4-28F
500 lbf 2.98? 2.0? 0.98? 0.49? 1/2-20F
1000 lbf 2.98? 2.0? 0.98? 0.49? 1/2-20F

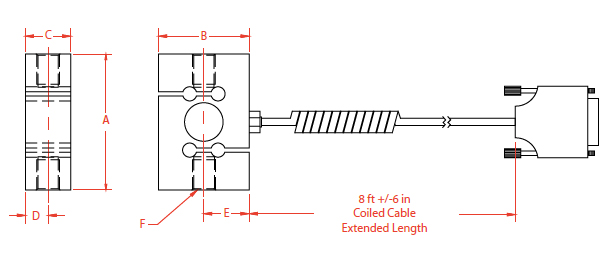

Capacity A B C D E F
2000 lbf 3.44?? 2.25? 0.94? 0.47? 1/2-20F
5000 lbf 3.94? 2.75? 1.19? 0.59? 1.375? 3/4-16F
10,000 lbf 3.94? 3.0? 1.43? 0.71? 1.5? 3/4-16F






The CHATILLON® STS Series torque sensors are full-bridge strain gauge sensors complete with 15-pin plug. These sensors are used exclusively with the Chatillon DFS-R-ND Series digital indicator. The sensor?s torque values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS-R-ND indicator, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured torque measurement instrument. The STS Series torque sensor meets ASTM E4 and BS EN ISO 7500 part 1 for a +0.3% accuracy sensor. The sensors are connected to the DFS-R-ND with a retractable cord that extends fully to nearly 9 ft. (3 m).

    Features
  • Plug & Play Operation - DFS-R-ND Gauge
  • Accuracy up to 0.1% FS
  • NIST Calibration with Data
  • 1 Year Warrant
Model STS-0003 STS-0012 STS-0050 STS-0100 STS-0200
Price Chatillon STS-0003 Remote
$1,695.00
buy now
Chatillon STS-0012 Remote
$1,695.00
buy now
Chatillon STS-0050 Remote
$1,695.00
buy now
Chatillon STS-0100 Remote
$1,695.00
buy now
Chatillon STS-0200 Remote
$1,695.00
buy now
lbf-in 3 x 0.0005 12 x 0.002 50 x 0.005 100 x 0.01 200 x 0.02
kg-cm 3.5 x 0.005 12.5 x 0.002 50 x 0.005 100 x 0.01 200 x 0.02
N-cm 35 x 0.005 125 x 0.02 500 x 0.05 1000 x 0.1 2000 x 0.2
N-m 0.35 x 0.0001 1.25 x 0.0002 5 x 0.0005 10 x 0.001 20 x 0.002
oz-in 50 x 0.005 192 x 0.02 800 x 0.1 - -
Accuracy ±0.3% of Full Scale
Input Resistance 1000 ohms ±100
Output Resistance 1000 ohms ±100
Rated Output 2.0 mV/V
Safe Overload 150% Full Scale
Non-Linearity ±0.05% Full Scale
Hysteresis ±0.05% of Full Scale
Zero Balance ±+0.1% of Full Scale
Operating Temperature 40°F to 110°F - 5°C to 45°C
Instrument Weight 1 5b (0.7 kg)
Shipping Weight 2 lbs (1 kg)

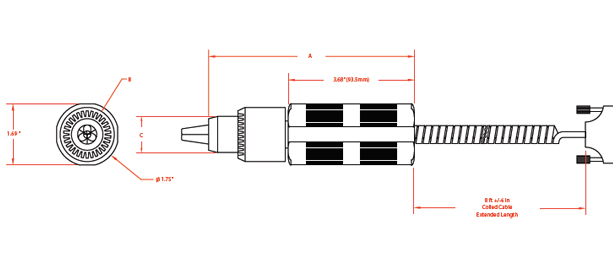

Capacity A B C Sample Size
50 oz-in 5.62? 1.25? 1.0? 1/16 - 3/8?
12 lb-in 6.0? 1.62? 1.2?? 5/64 - 1/2?
50 lb-in 6.0? 1.62? 1.2? 5/64 - 1/2?
100 lb-in 6.0? 1.62? 1.2? 5/64 - 1/2?
200 lb-in 6.0? 1.62? 1.2? 5/64 - 1/2?
