Imada SVL-220 - Manual Lever Test Stand 220 lbs
Model SVL-220S vertical manual lever test stands provide quick, consistent testing. Both compression and tension tests can be performed with a simple downward stroke of the lever. The test stand is designed to provide a simple move to change from compression to tension mode. Return springs reset the lever in compression mode and gravity does the work in tension mode. The stroke can be adjusted with a mechanical limit.
Imada SVL-220 - Manual Lever Test Stand 220 lbs call now

Specifications Chart

Imada SVL-220
Manual Lever Test Stand 220 lbs

FREE UPS Ground Shipping
(48 US States Only)

Model

  • Maximum load 220 lbf (100 kgf)
  • Stroke: Stroke: 2.3" 60mm per 170°
  • Easy to change from tension to compression mode
  • Optional digital distance meter

Force gauge sold separately

Model SVL-220 vertical manual lever test stands provide quick, consistent testing. Both compression and tension tests can be performed with a simple downward stroke of the lever. The test stand is designed to provide a simple move to change from compression to tension mode. Return springs reset the lever in compression mode and gravity does the work in tension mode. The stroke can be adjusted with a mechanical limit. The stands accommodate any of the standard range Imada mechanical or digital force gauges and can be equipped with a precision digital distance meter. SVL-220 is perfect for compression and tension applications where rapid action is desired.

Distance Meter Specifications:

  • Display - Push button for inch/mm, zero set and on/off
  • Resolution - 0.0005"/0.01 mm
  • Accuracy - ±0.01"/0.2mm
Model SVL-220 SVL-220S SVH-220 SVH-220S
Imada SVL-220 - Manual Le
$1,300.00
buy now
Imada SVL-220S - Manual L
$1,750.00
buy now
Imada SVH-220 - Vertical
$1,300.00
buy now
Imada SVH-220S - Vertical
$1,750.00
buy now
Capacity 220 lb 220 lb 220 lb 220 lb
Type Lever Hand Wheel
Distance Meter NO YES NO YES
Accuracy ±0.01"/0.2mm 0.1% of reading or 0.005"/0.1mm, whichever is greater
Stroke 2.3" 60mm per 170° 2.36" (60mm)
Resolution 0.0005"/0.01 mm

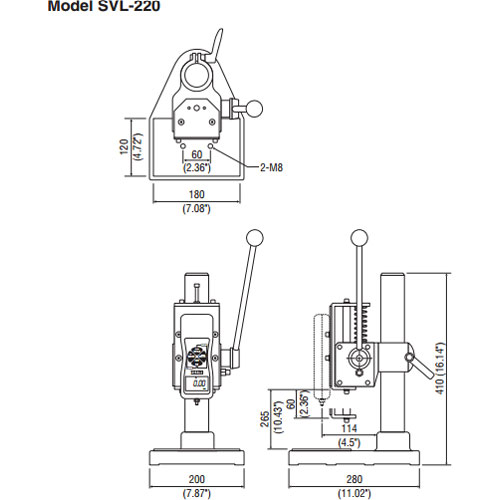

DIMENSIONS
