Imada MH-275 Horizontal Motorized Test Stands

MH-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

MH-275 without distance meter
MH-275S with distance meter
Maximum load 275 lbf

Imada MH-275 Horizontal Motorized Test Stands

FREE UPS Ground Shipping
(within the 48 continental US States)

call now
Force gauge and attachments are sold separately

MH-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

  • One stand for both compression (push) and tension (pull) tests
  • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control Force Control operation with Imada Z Series force gauges
  • Wide speed range: 0.3 – 7 in/min (optional speed ranges available)
  • Stroke 9.5"
  • Optional timer and digital distance meter
  • Conditional Overload Prevention

Connect the MH-275 test stand with an Imada Series force gauge and enable force controlled testing and Conditional Overload Prevention.

High/Low Set Point Force Control - Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

One Way Force Control - Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

Speed control, quick return and emergency stop are standard features. The MH-275 accepts any of the standard range Imada force gauges. Optional timer and digital distance meter available.

AP-002 Adapter Plate is available to mount most other force gauges to IMADA test stands.

Speed Configurations
Standard Speed 0.3~7"/min
*Optional High Speed 0.6~15.7"/min
*Optional Low Speed 0.2~4.2"/min
* Specify Speed When Ordering

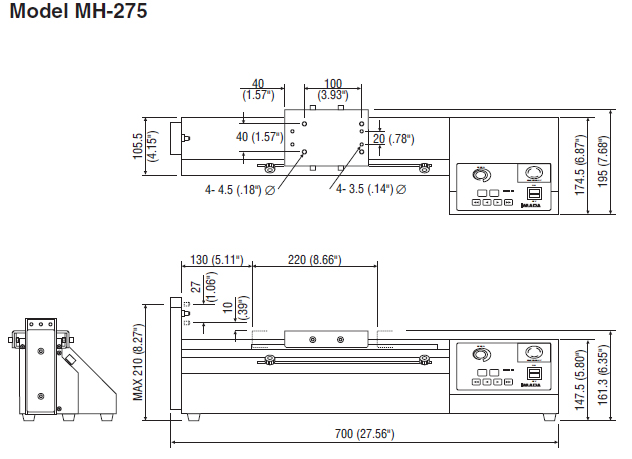

Dimensions
