Imada SH-Series Horizontal Manual Wheel Force Test Stands

Horizontal Manual Wheel stand model SH-Series. for both compression/push and tension/pull force measurement. Maximum 220 or 750 pound load.

Imada SH-220 Horizontal Manual Lever Test Stand SH-220
SH-220
Imada SH-220 Horizontal Manual Lever Test Stand SH-750
SH-750
Force gauge sold separately

Specifications Chart

Imada SH-220 Horizontal
Manual Lever Test Stand

FREE UPS Ground Shipping
(within the 48 continental US States)

Imada DB-2 Data Button
Imada DB-2 Data Button, add $245.00
Imada SW-2X Software
Imada SW-2X Software, add $199.00

SH-220 without distance meter
SH-220S with distance meter
SH-750 without distance meter
SH-750S with distance meter

\

For push / pull tests and other force measurements where a horizontal test stand is required, the SH-220 Manual Horizontal Hand Wheel Test Stands are an ideal choice. The test stands feature the advantages of the hand wheel design; relatively consistent speed, precise gauge positioning, and bi-directional movement. The low-profile SH-220 accepts any of the standard range Imada force gauges and special attachments.

DS2 ZTA FB PS
More Info More Info More Info More Info
  • Continuous stroke 7.5"
  • Horizontal design is ideal for push / pull testing and other applications
  • Hand wheel provides relatively consistent speed for repeatable tests
  • Gauge remains in place when hand wheel is released
  • One stand for both compression (push) and tension (pull) tests
Models SH-220 SH-220-S SH-750 SH-750-S
$2250.00 $2940.00 $2650.00 $3340.00
Capacity 220 lbf 220 lbf 750 lbf 750 lbf
Stroke 11.8" (300mm) 11.8" (300mm) 14.5" (370mm) 14.5" (370mm)
Travel / Rotation 1.2mm 1.2mm 0.6mm 0.6mm
Distance Meter Included - Yes - Yes
Distance Meter Display Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off
Distance Meter Resolution 0.0005"/0.01 mm 0.0005"/0.01 mm
Distance Meter Accuracy ±0.01"/0.2mm ±0.01"/0.2mm

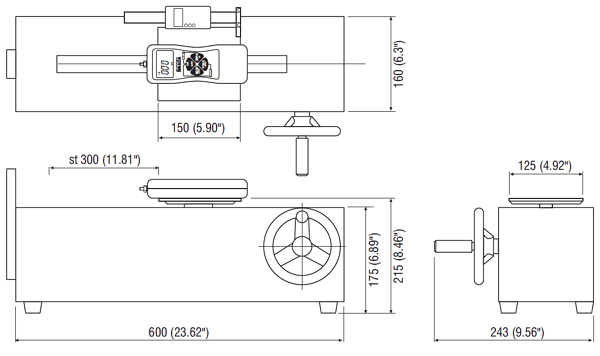

Dimensions
