181500

181501-RFX, 181502-RFX, 181503-RFX, 181504-RFX, 181505-RFX, 181506-RFX

Accessories For RFX models
	Intercomp 101225-RFX HH60 Handheld Weighing RFX Indicator, add $895.50
	Intercomp 101225-RFX-P HH60 Handheld Weighing RFX Indicator with Bluetooth Printer, add $1,570.50
	Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer, add $2,695.50
	Intercomp 140759 IntercompWeigh™ Software , add $895.50
	Intercomp 189012 RFX™ USB Node for PC, add $445.50
	Intercomp Part 3402014 Wireless Thermal Printer with RFX™ Communication Module, add $715.50
Cases for all PT300
	Intercomp Part 100047 Carrying Case for 2 scales for PT300, add $985.50
	Intercomp Part 100048 Carrying Case for 4 scales for PT300, add $1,255.50
	Intercomp Part 100049 Carrying Case for 6 scales for PT300, add $1,345.50
Ramps/Dummy Pads for all PT300
	Intercomp Part 100070 Ramp (Fabricated Aluminum) for PT300, add $130.50
	Intercomp Part 100088 Dummy Pad (Cast Aluminum Replica) for PT300, add $400.50

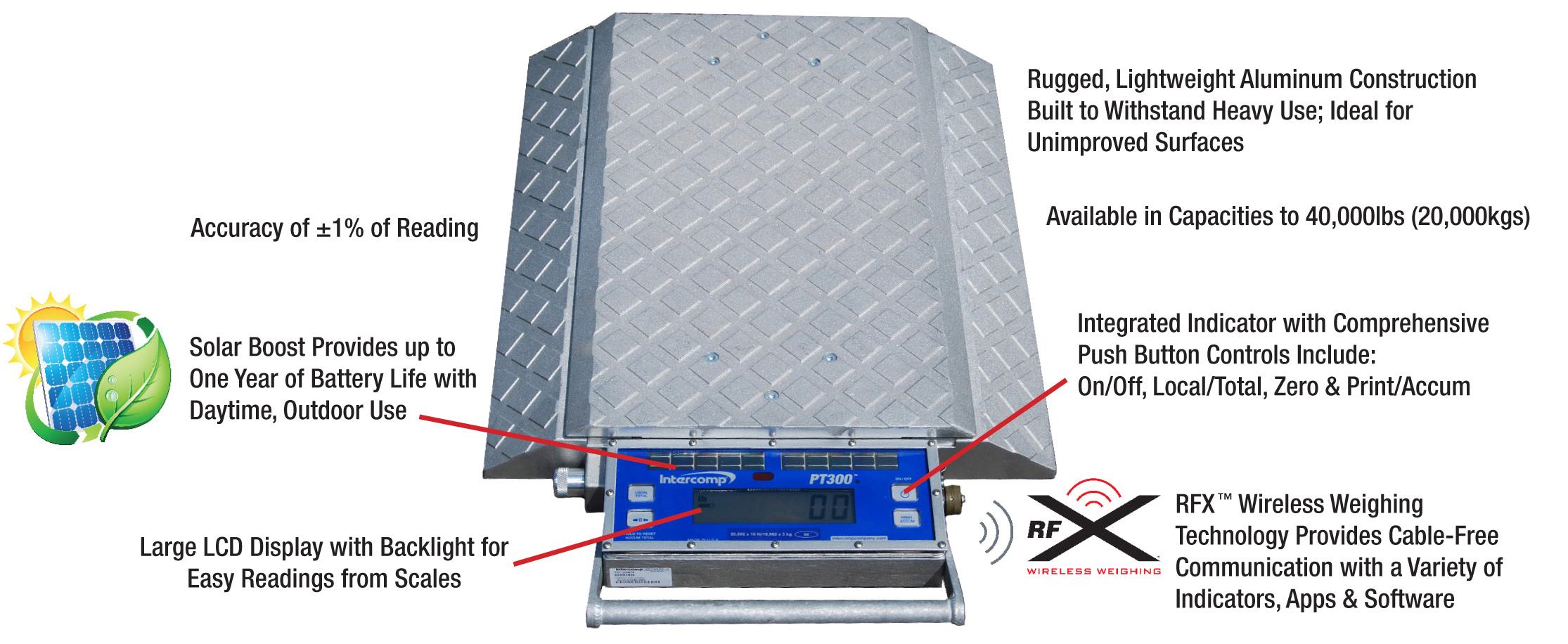

PT300DW™ scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of ± 1%.

The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard Rechargeable AA Batteries last up to 300 Hours in the Scales.

Fully Integrated RFX™ Wireless Weighing Technology, using no antennas and makes it possible to sequentially couple and number PT300™ scales in the series for the purpose of obtaining a total vehicle weight through the total button or by linking the scales to a computer, display, or Intercomp’s complete line of weighing indicators. For customers whose local regulations prevent the use of any wireless radio communication, radios can be disabled or you can select from hardwired alternatives

• •5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
• Accuracy of ±1% of Reading
• Large, Easy-to-Read, LCD Display
• Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
• Solar Boost Provides up to One Year of Battery Life with Daytime, Outdoor Use

In addition, battery life has been significantly enhanced with the use of solar panels that will power the scales for up to a year before needing direct power charging with daytime outdoor use.

PT300DW ™ Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions.

The PT300DW ™ is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment.

Model	181508 PT300DW	181503 (20mA) PT300DW	181501-RFX PT300DW	181502-RFX PT300DW	181503-RFX PT300DW	181504-RFX PT300DW	181505-RFX PT300DW	181506-RFX PT300DW
	$2,200.50	$1,950.75	$2,800.75	$3,225.75	$1,950.75	$2,078.25	$2,078.25	$1,950.75
Connection Type	Wired	Wired	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
			Wired	Wired	Wired	Wired	Wired	Wired
Capacity	20,000 x 10 lb	20,000 x 20 lb	30,000 x 50 lb	40,000 x 100 lb	20,000 x 20 lb	20,000 x 10 lb	10,000 x 5 lb	5,000 x 5 lb
	10,000 x 5 kg	10,000 x 10 kg	15,000 x 25 kg	20,000 x 50 kg	10,000 x 10 kg	5,000 x 5 kg	5,000 x 2 kg	2,500 x 2 kg
Legal for Trade	-	-	-	-	-	-	-	-
Accuracy	±1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar, Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life

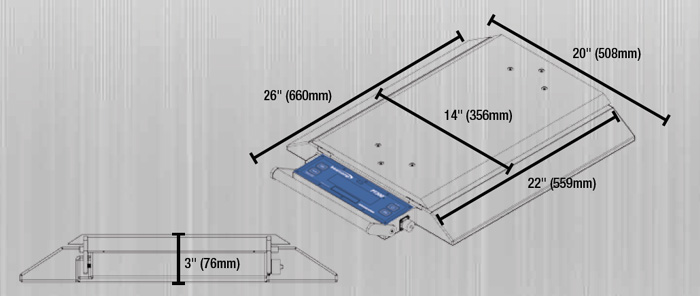

Platform Size	22" x 14" (559 x 356mm)

2 Scale Kits

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Two Scales
Model	181501-RFX-K2 PT300	181502-RFX-K2 PT300	181503-RFX-K2 PT300	181504-RFX-K2 PT300	181505-RFX-K2 PT300	181506-RFX-K2 PT300
Price Wireless and solar (with no cables)	$7,902.00	$8,802.00	$6,102.00	$6,372.00	$6,372.00	$6,102.00
Price with Charging and Interconnecting Cables	-	-	181520-RFX	181521-RFX	181522-RFX	181523-RFX
			$6,399.00	$6,669.00	$6,669.00	$6,399.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	60,000 x 50 lb (2 x 30,000 lb)	80,000 x 100 lb (2 x 40,000 lb)	40,000 x 20 lb (2 x 20,000 lb)	40,000 x 10 lb (2 x 20,000 lb)	20,000 x 5 lb (2 x 10,000 lb)	10,000 x 5 lb (2 x 5,000 lb)
	30,000 x 25 kg (2 x 15000 kg)	40,000 x 50 kg (2 x 20,000 kg)	20,000 x 10 kg (2 x 10,000 kg)	20,000 x 5 kg (2 x 10,000 kg)	10,000 x 1.5 kg (2 x 5,000 kg)	5,000 x 1.5 kg (2 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Accuracy	±1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)

4 Scale Kits

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Four Scales
Model	181501-RFX-K4 PT300	181502-RFX-K4 PT300	181503-RFX-K4 PT300	181504-RFX-K4 PT300	181505-RFX-K4 PT300	181506-RFX-K4 PT300
Price Wireless and solar (with no cables)	$14,283.00	$16,083.00	$10,683.00	$11,223.00	$11,223.00	$10,683.00
Price with Charging and Interconnecting Cables	-	-	181540-RFX	181541-RFX	181542-RFX	181543-RFX
			$11,133.00	$11,673.00	$11,673.00	$11,133.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	120,000 x 50 lb (4 x 30,000 lb)	160,000 x 100 lb (4 x 40,000 lb)	80,000 x 20 lb (4 x 20,000 lb)	80,000 x 10 lb (4 x 20,000 lb)	40,000 x 5 lb (4 x 10,000 lb)	20,000 x 5 lb (4 x 5,000 lb)
	60,000 x 25 kg (4 x 15,000 kg)	80,000 x 50 kg (4 x 20,000 kg)	40,000 x 10 kg (4 x 10,000 kg)	40,000 x 5 kg (4 x 10,000 kg)	20,000 x 1.5 kg (4 x 5,000 kg)	10,000 x 1.5 kg (4 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)

6 Scale Kits

Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With Six Scales
Model	181501-RFX-K6 PT300	181502-RFX-K6 PT300	181503-RFX-K6 PT300	181504-RFX-K6 PT300	181505-RFX-K6 PT300	181506-RFX-K6 PT300
Price Wireless and solar (with no cables)	$20,934.00	$22,914.00	$15,534.00	$16,344.00	$16,344.00	$15,534.00
Price with Charging and Interconnecting Cables	-	-	181560-RFX	181561-RFX	181562-RFX	181563-RFX
			$16,137.00	$16,947.00	$17,172.00	$16,137.00
Connection Type	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
	Wired	Wired	Wired	Wired	Wired	Wired
Capacity	180,000 x 50 lb (6 x 30,000 lb)	240,000 x 100 lb (6 x 40,000 lb)	120,000 x 20 lb (6 x 20,000 lb)	120,000 x 10 lb (6 x 20,000 lb)	60,000 x 5 lb (6 x 10,000 lb)	30,000 x 5 lb (6 x 5,000 lb)
	90,000 x 25 kg (6 x 15,000 kg)	170,000 x 50 kg (6 x 20,000 kg)	60,000 x 10 kg (6 x 10,000 kg)	60,000 x 5 kg (6 x 10,000 kg)	30,000 x 1.5 kg (6 x 5,000 kg)	12,500 x 1.5 kg (6 x 2,5000 kg)
Legal for Trade	-	-	-	-	-	-
Accuracy	±1% of Reading
Display	Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Solar Power Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22" x 14" (559 x 356mm)
