Virtually any production environment relies upon pallet trucks as an economical means of transporting goods in and around tight locations. Now let Intercomp provide you with another cost effective weigh on the go solution – the PW800 Pallet Truck Scale. As the world’s largest manufacturer of pallet truck scales, we offer the widest range of sizes and accessories for weighing and counting almost all types and sizes of pallets. Intrinsically safe units are available for explosive environments.

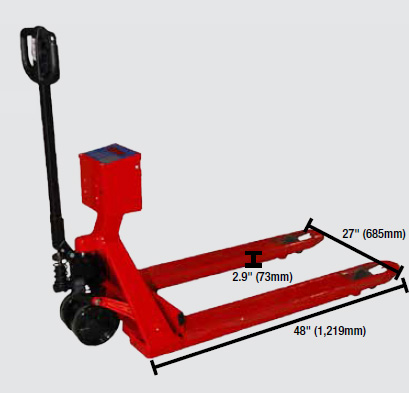

The PW800 is the preferred choice because it integrates its load cells within the existing forks. Other designs incorporate false forks thereby increasing the fork height, width, pallet truck weight and reducing accuracy. The PW800 uses load cells which are certified by the U.S. National Institute of Standards and Technologies to provide +/- 0.1% accuracy. The industry’s highest standard capacity at 5,000 x 1 lb and lowest profile forks at 2.9 inches guarantees you can accurately and safely lift any conventional pallet.

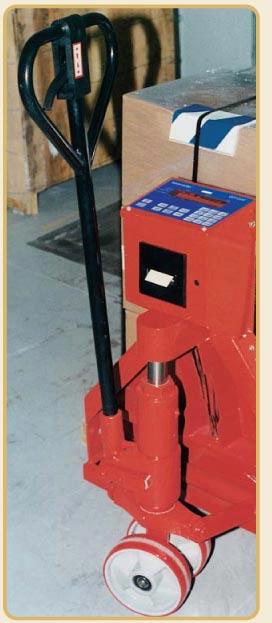

The unit maximizes run time by providing up to fifty hours of continuous use via D size commercially available rechargeable or alkaline batteries for easy and low cost replacement. Weights are clearly seen on a 0.8 inch high LED display while the membrane keypad provides functions for gross/net/tare as well as parts counting. All electronics are shock mounted and contained in a rugged durable enclosure. Standard fork sizes are 27 x 48 and 21 x 48 inches/ 685 x 1219 and 533 x 1219 mm.

• Lowest profile forks 2.9 inches/73 mm
• Fast, low-cost parts counting & totalization for taking inventory
• Accuracy of +- 0.1% which is better than most fork lift scales
• 5,000 lb/2,500 kg capacity in 1 lb/0.5 kg increments
• Low-cost operation (9) D-cell batteries with up to 40 hour battery life
• Quick verification of incoming/outgoing freight
• Instant check of truck loading by weight
• Multi-purpose mobile weighing
• Large, easy-to-read 0.8 inch/ 20 mm LED display
• Electric walkie retrofits

• Tare – Up to 100% capacity
• Zero – Up to 100% of capacity
• Units – lb/kg
• Push button print of Gross
• Net Tare
• Total & Count
• Displays Gross
• Net & Tare Weight
• Weight totalization up to 100,000 lbs
• Parts counting
• Count totalizations up to 100,000 counts
• Adjustable baud rates from 75 to 9600
• Selectable AZT off, 0.6, 1 or 3 graduations
• Adjustable display update/weight averaging

• RS232 & RS485 Output
• Tape Printer
• LCD Display
• Galvanized or Stainless Steel
• Forks Available in Different Lengths & Widths
• Explosion Proof
• External Battery Charger
• Drum Brake
• Brass Wheels

These ultra portable scales are connected to Intercomp’s GP1000 battery operated indicator for gross/net/tare functions while readings are easily viewed in almost any environment via a 1 inch high LCD display with back light.

The US840 quickly slides into your pallet for accurate readings in hard to reach places. Easy to store and transport for use at multiple locations.

The TB830 accommodates both sides of a pallet using an independent twin beam design which is easily positioned to handle a wide variety of pallet sizes. Perfect for unconventional pallets not normally handled by your pallet truck, walkie or lift truck scales.

Intercomp also offers a complete line of bench, floor, roller-deck and cargo scales to complete our range of total solutions. Contact us for further information on these all purpose alternatives.
