Mark-10 ESM303 Motorized Test stand 300 lbF
Authorized Dealer
The ESM303 is a highly configurable single-column force tester for tension and compression measurement applications up to 300 lbF [1.5 kN], with a rugged design suitable for laboratory and production environments.
Mark 10 ESM30-H

View Spec Cart

View Grips

Compatible Force Gauges

call now

The ESM303 is a highly configurable single-column force tester for tension and compression measurement applications up to 300 lbF [1.5 kN], with a rugged design suitable for laboratory and production environments. Sample setup and fine positioning are a breeze with available FollowMeTM force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods.

When the ESM303’s clearance is insufficient for the application, its modular mechanical design allows for single- and double-column extensions. Modularity extends to the controller functions as well. Individual functions, such as travel measurement, cycling, loadholding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.

Force and travel data can be output to a PC for graphing and analysis using MESURTMgauge software. Or, fully control the stand by a PC through a customwritten program with ASCII communication.

Standard Features
  • Selectable speed setting
  • Upper and lower travel limit switches
  • Adjustable, removal controller with intuitive menu navigation
  • Password protection of test parameters
  • Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
  • USB output of force vs. time or force vs. travel
  • Compact footprint, suitable for crowded workbenches
  • Ergonomic design, with smart, clean cable management
  • Integrated electronics assembly, easily removed and transported

Key Features
Simple controller interface
Simple controller interface
Rugged aluminum up/down/stop keys are designed for industrial environments. Zero Travel and FollowMeTM keys add convenience. Removable for remote use. See the following page for a full list of available functions.
Simple controller interface
Limit switches
Adjustable upper and lower solid state limit switches stop test stand travel with 0.001 in. [0.025 mm] repeatability
Simple controller interface
Adjustable mounting plate with T-slot base
The mounting plate may be repositioned in the X- and Y-directions, for proper sample alignment. Matrix of threaded holes for fixture mounting.
Simple controller interface
Modular designAll electronics are installed onto a single panel, easily accessible and removable for updating and service.

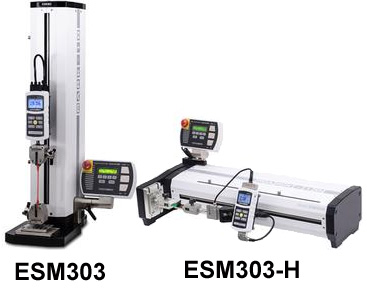

Model ESM303 ESM303-H
Price Mark-10 ESM303 Motorized
$3,068.50
buy now
Mark-10 ESM303H Motorized
$3,655.13
buy now
Force Capacity < 24 in [610 mm]/min: 300 lbF [1.5 kN]
> 24 in [610 mm]/min: 200 lbF [1 kN]
Standard: Speed range 0.5 - 13 in/min [13 - 330 mm/min]
Optional: Speed range 0.02 - 45 in/min [0.5 - 1,100 mm/min]
Maximum travel 18.0 in [457 mm]
Speed setting accuracy ±0.2%
Speed variation with load ±0.0% [Stepper motor driven]
Travel accuracy ±0.002 in per 10 in [±0.05 mm per 250 mm]
Travel resolution 0.001 in [0.02 mm]
Limit switch repeatability: ±.001 in [0.03 mm]
Power: Universal input 80-240 VAC, 50/60 Hz
Weight: 56.5 lb [25.6 kg] 62.5 lb [28.4 kg]
Mark-10 ESM303 Motorized Test Stand

Price From: $3,068.50

Mark 10 ESM303-001-1 Single column extension for ESM303 6 inch  / 150 mm
Mark 10 ESM303-001-1 Single column extension for ESM303 6 inch / 150 mm, add $418.00
Mark 10 ESM303-001-2 Single column extension for ESM303 12 inch / 300 mm
Mark 10 ESM303-001-2 Single column extension for ESM303 12 inch / 300 mm, add $579.50
Mark 10 ESM303-001-3 Single column extension for ESM303 24 inch / 600 mm
Mark 10 ESM303-001-3 Single column extension for ESM303 24 inch / 600 mm, add $731.50
Mark 10 ESM303-002-1 Double column extension for ESM303 6 inch  / 150 mm
Mark 10 ESM303-002-1 Double column extension for ESM303 6 inch / 150 mm, add $1,828.75
Mark 10 ESM303-002-2 Double column extension for ESM303 12 inch / 300 mm
Mark 10 ESM303-002-2 Double column extension for ESM303 12 inch / 300 mm, add $2,090.00
Mark 10 ESM303-002-3 Double column extension for ESM303 24 inch / 600 mm
Mark 10 ESM303-002-3 Double column extension for ESM303 24 inch / 600 mm, add $2,348.40
Mark-10 AF008 FollowMeTM Force-Based Manual Positioning for ESM303
Mark-10 AF008 FollowMeTM Force-Based Manual Positioning for ESM303, add $299.25
Mark-10  ESM303-003 Safety Shield For ESM303 Test Stand
Mark-10 ESM303-003 Safety Shield For ESM303 Test Stand , add $1,759.88
Mark-10 AF009 Travel indication with USB output for ESM303
Mark-10 AF009 Travel indication with USB output for ESM303, add $1,092.50
Mark-10 AF010 Computer control via USB for ESM303
Mark-10 AF010 Computer control via USB for ESM303, add $1,092.50
Mark-10 AF011 Programmable travel set points for ESM303
Mark-10 AF011 Programmable travel set points for ESM303, add $299.25
Mark-10 AF012 Programmable travel set points for ESM303
Mark-10 AF012 Programmable travel set points for ESM303, add $299.25
Mark-10 AF013 Auto return for ESM303
Mark-10 AF013 Auto return for ESM303, add $209.00
Mark-10 AF014 Cycling / dwell time for ESM303
Mark-10 AF014 Cycling / dwell time for ESM303, add $299.25
Mark-10 AF016 Independent up and down speeds for ESM303
Mark-10 AF016 Independent up and down speeds for ESM303, add $180.50
Mark-10 AF017 Extended speed range, low for ESM303
Mark-10 AF017 Extended speed range, low for ESM303, add $209.00
Mark-10 AF018 Extended speed range, high for ESM303
Mark-10 AF018 Extended speed range, high for ESM303, add $209.00
Mark-10 AF019 Break detection for ESM303
Mark-10 AF019 Break detection for ESM303, add $209.00
Mark-10 AF020 Load holding for ESM303
Mark-10 AF020 Load holding for ESM303, add $470.25
Mark-10 AF021 Preload / sample touch for ESM303
Mark-10 AF021 Preload / sample touch for ESM303, add $299.25
Mark-10 AF022 Profiles for ESM303
Mark-10 AF022 Profiles for ESM303, add $598.50
Mark-10 09-1252 Gauge to Test Stand Controller Interface Cable
Mark-10 09-1252 Gauge to Test Stand Controller Interface Cable, add $128.25
Mark-10 09-1158 Type B to A Test Stand to PC USB Cable
Mark-10 09-1158 Type B to A Test Stand to PC USB Cable, add $28.50
Mark-10 AC1064 Load Cell Hardware Kit
Mark-10 AC1064 Load Cell Hardware Kit , add $57.00
Mark-10 AFCOMP Complete options package for ESM303
Mark-10 AFCOMP Complete options package for ESM303, add $4,313.00
Mark-10 AFCOMP-H Complete Options Package for ESM303H Test Stand
Mark-10 AFCOMP-H Complete Options Package for ESM303H Test Stand, add $4,313.00
Mark-10 09-1166 Gauge to Dual Banana Plug Analog Cable
Mark-10 09-1166 Gauge to Dual Banana Plug Analog Cable, add $76.00
Mark-10 09-1214 Gauge to Test Stand Crosshead Interface Cable
Mark-10 09-1214 Gauge to Test Stand Crosshead Interface Cable, add $128.25

View Spec Cart

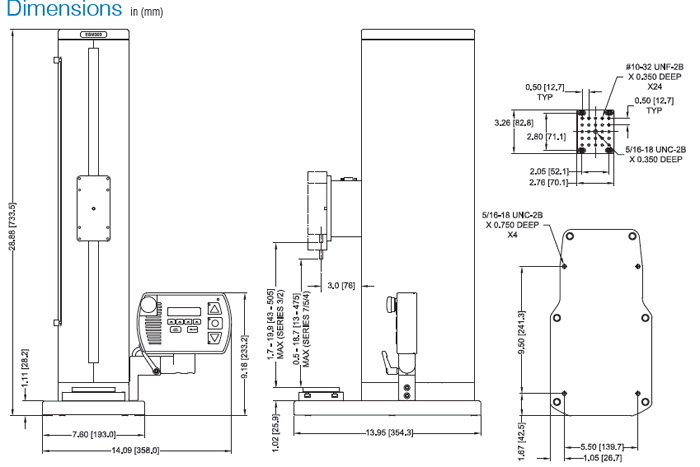

ESM303

ESM303

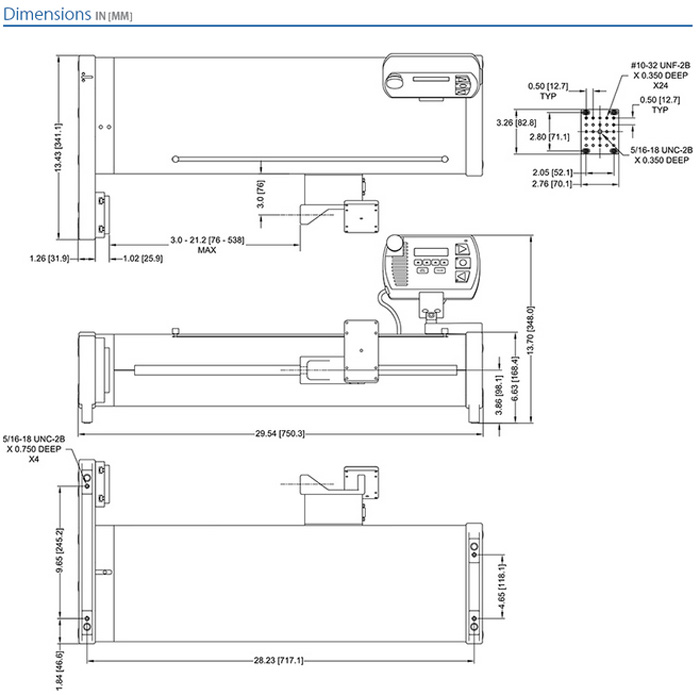

ESM303-H

ESM303-H
Additional Features & Items
FollowMeTM
FollowMeTM
Using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead. Responsive enough for quick positioning as well as fine adjustments.
Force gauges
Force gauges
Consider a Series 7 or 5 gauge for force vs. time or force vs. travel data output, and to take advantage of all available test stand functions.
Grips and eye end adapters
Grips and eye end adapters
Wide range of grips for tensile, peel, compression, and specialized applications. Eye end adapters allow for quick grip installation and removal, and prevent rotation
Indicator / load cell adapter
Indicator / load cell adapterAccommodates any Mark-10 indicator and Series R01 or R03 force sensors. Includes mounting hardware
Single column extensions
Single column extensions
Increase the vertical clearance for tall samples. Three lengths are available - 6, 12 and 24 in [150, 300, and 600 mm].
Double column extensions
Double column extensions
Accommodate up to a 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Three heights are available - 6, 12 and 24 in [150, 300, and 600 mm]. Base contains rows of T-slots for fixture mounting.
MESURTMgauge extensions
MESURTMgauge data collection softwareOutput force vs. time or force vs. distance data from the ESM303’s USB port. MESURTMgauge graphs, tabulates, calculates statistics, and provides reporting and output tools.

Optional Functions

Any of the below functions may be purchased at time of order or may be activated in the field at a later date via an activation code. A complete options package is also available at a discounted price. The stand is supplied in Demo Mode, a 160-hour time period in which all functions are temporarily enabled

Feature Part No. Description Requirements
FollowMeTM AF008 Crosshead movement responds to manually pushing or pulling on the force gauge shaft or load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning. - Series 7 or 5 gauge or indicator with load cell
- 09-1214 interface cable
Travel indication AF009 Travel is indicated on the control unit display, with output via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoderbased designs. Backlash and nonlinearity are virtually eliminated - Field hardware installation required.
- If data output to a PC is required, add 09-1214 and 09-1158 cables, and a Series 7 or 5 gauge or indicator with load cell.
Computer control AF010 The ESM303 may be fully controlled by a PC through a custom-written program in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Mark-10). - Series 7 or 5 gauge or indicator with load cell
- AF009 travel indication
- AF011 programmable travel set points
- 09-1214 interface cable
- 09-1158 USB output cable
Programmable travel limits AF011 The stand stops at or cycles between programmable upper and lower travel distances. - AF009 travel indication option
Overload protection AF012 Protects a force gauge or force sensor against overload. Program the desired percentage of full scale of the gauge. Adjustable analog voltage setting allows the stand to interface with virtually any gauge with analog output - Series 7 or 5 gauge or indicator with load cell
- 09-1214 interface cable
Auto return AF013 The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the opposite limit. - If reversing at force set point: Series 7 or 5 gauge or indicator with load cell, and 09-1214 interface cable
- If reversing at travel limit: AF011 programmable travel limits option
- If reversing at break: AF019 break detection option and 09-1214 interface cable
Cycling / dwell time AF014 Same as auto return, but with the ability to program up to 100,000 cycles. Programmable dwell time for upper and lower limits (set independently) can be set up for up to 10,000 seconds. - Same as auto return, at the same speed in each direction. Add AF016 for independent up and down speeds.
Independent up and down speeds AF016 Individually configure speeds for the up and down directions. -
Low speed range extension AF017 Extends the standard speed range down to 0.02 in/min (0.5 mm/min). -
High speed range extension AF018 Extends the standard speed range up to 45 in/min (1,100 mm/min). -
Break detection AF019 Crosshead stops at a sudden drop in force. Programmable percentage of peak force. - Series 7 or 5 gauge or indicator with load cell
- 09-1214 interface cable
Load holding AF020 Dynamically adjusts the crosshead position to maintain a programmed load for an indefinite or specified period of time - Series 7 or 5 gauge or indicator with load cell
- If a specified time is required, add AF014 cycling / dwell time option
- 09-1214 interface cable
Preload / sample touch AF021 Stops the crosshead and/or zeroes the travel display at an initial preload - useful in tensile, compression, spring, elongation, and other applications. Preload is programmable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero, and (3) zero without stopping. - AF009 travel indication
- Series 7 or 5 gauge or indicator with load cell
- 09-1214 interface cable
Profiles AF022 Save and recall sets of test parameters, such as speeds, travel limits, preloads, etc. Up to 50 profiles may be stored. -
Complete options package AFCOMP Includes all functions listed above, plus 09-1214 interface cable and 09-1158 USB cable.
Requires a Series 7 or 5 gauge or indicator with load cell.

The ESM303 includes 5” extension rod, small hook, medium hook, #10-32 coupler, 2” dia. compression plate, gauge/indicator mounting screws, Allen wrench set, and Resource CD.
