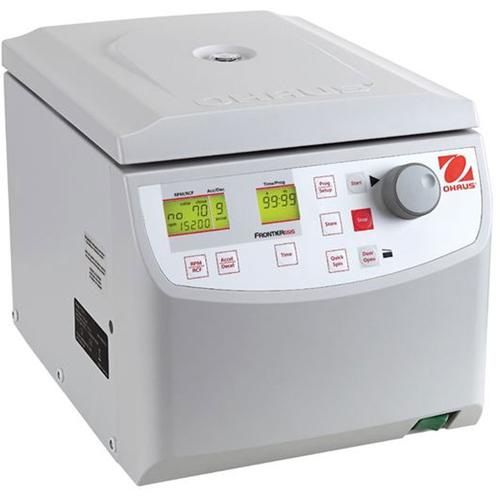

| Ohaus Frontier 5000 Micro Centrifuges |
Authorized Dealer |
| Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation.
|
| Ohaus Scales |
Frontier microliter benchtop centrifuges provide high-speed operation for spin-down applications requiring a wide variety of tube volumes and capacities. With refrigeration capabilities, multi-acceleration/deceleration settings, multiple safety features, and an unmatched capacity, Frontier provides stable liquid separation for life science applications requiring high-speed operation.
- The intuitive control panel with rotary knob puts the ability to quickly set and recall speed and g-force, as well as control the temperature (R model only) at your fingertips.
- A powerful brushless induction motor, 10 acceleration and deceleration ratings, and memory for up to 99 commonly-used parameters are a few of Frontier 5515(R)’s features that propel high-performance.
- Frontier 5515(R) has a lid locking system and sensor that stops the centrifuge if the rotors become imbalanced, protecting the operator from being injured by the spinning rotors.
|
|
|
|
|
| Model |
FC5515 (120V) |
FC5515R (120V) |
| Price |
$2,172.60
|
$4,746.40
|
| Maximum Capacity (Rotor) |
44 x 1.5 / 2.0ml;12 x 5 ml |
44 x 1.5 / 2.0ml;12 x 5 ml |
| Maximum Relative Centrifuge Force (x g) |
21,953 g |
21,953 g |
| Net Weight |
38 lb (17 kg) |
77 lb (35 kg) |
| Program memories |
99 |
99 |
| Rotor In Package |
N/A |
N/A |
| Acceleration Gear |
10 |
10 |
| Deceleration Gear |
10 |
10 |
| Lid lock |
Motor driven |
Motor driven |
| Safety Certification |
CE;FCC |
CE;FCC |
| Power Consumption |
280 W |
560 W |
| Dimensions (HxLxW) |
11.5 in x 15.5 in x 11.3 in (292 mm x 393 mm x 287 mm) |
11.5 in x 22.1 in x 11.3 in (292 mm x 561 mm x 287 mm) |
| Display |
LCD with backlight |
LCD with backlight |
| Noise Level |
< 60 + 2 dB(A) |
< 57 + 2 dB(A) |
| Power |
AC Power (Included) |
AC Power (Included) |
| Pre-cool time |
Not applicable |
From room temperature to 4° < 10min |
| Rotor Compatibility |
Angle 24 x 1.5 ml / 2.0 ml
Angle 24 x 1.5 ml / 2.0 ml Sealable
Angle 12 x 5 ml Sealable
Angle 44 x 1.5 ml / 2.0 ml
Angle 4 x 8 place PCR Strips
Angle 30 x 1.5 ml / 2.0 ml Sealable
Hematocrit rotor, 24 × Capillaries |
Angle 24 x 1.5 ml / 2.0 ml
Angle 24 x 1.5 ml / 2.0 ml Sealable
Angle 12 x 5 ml Sealable
Angle 44 x 1.5 ml / 2.0 ml
Angle 4 x 8 place PCR Strips
Angle 30 x 1.5 ml / 2.0 ml Sealable |
| Running Time |
Continous |
Continous |
| Working Environment |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing) |
|
