Specifications Chart Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. Fast stabilization time Improves operational efficiency Increases throughput Improves productivity Optimized linearity and repeatability specifications Provides accurate and repetitive results Superior vibration filtering Provides balance stability in unstable environments Intuitive SOFTWARE SmarText™ 2.0 is OHAUS’ easy-to-use graphical software featuring 14 applications, QWERTY and numeric keypads, and below-minimum weight indication. Color VGA display with icons for simple menu navigation High resolution, 5.7 in (145 mm) color TFT display reproduces highly readable operating software Resistive touch screen display quickly responds to operator’s touch or stylus 14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings Minimum Weight capability with visual warning feature QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data • User Manager with administrator capability Library function to store and recall customized applications Alternate RS232 command feature adapts the balance to existing data acquisition software External input for zero, tare or print operations via the external foot switch accessory Audible and visual feedback for button presses as well as the indication of the check weighing status The all-new Explorer® Series of Analytical and Precision balances — a product so extraordinary, it’s like nothing you’ve seen before!

Ohaus All New Explorer Series Select EX124 $3,264.85 EX224 $3,705.15 EX324 $4,242.35 EX223 $2,580.85 EX423 $2,805.85 EX623 $3,069.35 EX1103 $3,705.15 EX2202 $2,580.60 EX4202 $2,805.85 EX6202 $3,069.35 EX10202 $3,705.15 EX6201 $2,629.90 EX10201 $2,825.40 Ohaus 83021085 Interface Cable, USB (Type A to B), EX, add $95.40 Ohaus 83021083 Display Extension Cable, EX, add $43.20 Ohaus 470004-010 Security Device, add $114.30 Ohaus 83033633 In Use Cover for EX, add $40.50 Ohaus 83021082 Interface Kit, Ethernet, EX, add $95.40 Ohaus 83021081 Interface Kit, Second RS232, EX, add $95.40 Ohaus 83021102 Tower Mount for Display EX, add $81.90 Ohaus 83021086 Foot Switch Kit, EX, add $90.90 Ohaus 80253384 Density Determination Kit for Ohaus new Explorer , add $390.60 Ohaus 80251992 Palm-Sized Thermal Printer, add $388.80 Ohaus 80252042 Palm-Sized Dot Matrix Printer, add $457.20 Full List of Compatible Accessories Specifications Chart

Ingenious DRAFTSHIELD

• Frameless, flip-top design provides unobstructed access to the weighing chamber
• The expansive side entry 6.3 x 9.4 in (160mm x 240mm) allows you to freely place and remove large weigh boats or other large vessels in the weighing chamber
• Antistatic coated glass helps dissipate static charges in the weighing chamber that could adversely affect the weighing results
• Side doors seamlessly glide on top-mounted bearings, helping to prevent any potential bind up when balance is left uncleaned
• Easy to install and remove glass panels and a stainless steel bottom make Explorer extremely easy to clean
• A draftshield chamber light is available when the balance is used in low-lighting environments

Practical TOUCHLESS SENSORS

• Hands-free operation
  • Improves weighing efficiency
  • Eliminates sample residue transfer
  • Minimizes contamination
• Two sensors on the base and two on the display can be set up individually to allow for remote operations

Completely re-imagined from the ground up, the OHAUS Explorer® rises to a whole new level.

Intelligent calibration

• Fully-automatic internal calibration system
• No need for external masses
• Eliminates cost to maintain external weights
• Self-calibrates the system when it senses a temperature change sufficient enough to affect weighing accuracy, or every 11 hours

Intuitive user setup

• Easy to view illuminated level indicator placed at the front of the balance
• Adjustable thumbwheels are easy to turn to level the balance
• Level assist screen helps users to quickly identify which thumbwheels need to be adjusted to level the balance
• Data Transfer Function helps to output data directly into Microsoft Excel
• Instructional messaging during applications use guides users through the weighing process
• User information menu allows users to quickly view and learn more about the available balances features
• Up to 11 operating languages make Explorer’s Intuitive User Setup truly universal

The Explorer® is a revolutionary shift in the way users interact and operate a weighing instrument, all based on our ingeniously practical design philosophy

Ingenious modular design

• Display features:
  • Angular adjustment to optimize viewing
  • Easy access communication ports including standard USB and RS232 and an optional third port of either RS232 or Ethernet
  • Left and right side cable exit feature for customized installation capability
  • Tower and wall mount ready for modular installation
  • In-use cover for protection against rugged use
  • Extension cable accessory extends remote use up to 10 feet
• Base features:
  • QuadraStance™ design with four adjustable thumbwheels provides superior stability
  • Robust die-cast metal bottom housing
  • Accessory tower mount ready for modular installation
  • Cable storage system

Practical approvals*

Applications

• Weighing - Determine the weight of items in the selected unit of measure. Minimum Weight feature is also available.
• Percent Weighing - Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight
• Dynamic Weighing - Weigh an unstable load. Balance takes an average of weights over a time period.
• Totalization - Measure cumulative weight of multiple items. Cumulative total may exceed Balance capacity
• Differential Weighing - Store sample weights and calculate the difference between initial weights and final weights
• Peak Hold - Capture and store highest weight in a series. Both stable and unstable weights are captured
• Parts Counting - Count samples of uniform weight. Choose Standard Counting, Check Counting, or Fill Counting
• Pipette Adjustment - Check pipette values by weight analysis, with built-in water density table
• Check Weighing - Compare the weight of a sample against target limits. Choose from Standard, Nominal-weight, or Nominal-Percent
• Filling - Fill a container to a target weight. Progress bar displays filling status
• Formulation - For compounding and recipe making. The number of components can be from two to 99.
• Density Determination - Determine density of solids more dense than water, solids less dense than water, liquids, or porous material.
• Ingredient Costing - Determine cost of formula or recipe based on known cost/quantity of components or ingredients.
• SQC - Monitor and/or control processes to eliminate under and over filling.

Specifications

Model	EX124	EX224	EX324	EX223	EX423	EX623	EX1103	EX2202	EX4202	EX6202	EX10202	EX6201	EX10201
Capacity (g)	120	220	320	220	420	620	1100	2200	4200	6200	10200	6200	10200
Readability (g)	0.0001			0.001				0.01				0.1
Price
	$3,264.85	$3,705.15	$4,242.35	$2,580.85	$2,805.85	$3,069.35	$3,705.15	$2,580.60	$2,805.85	$3,069.35	$3,705.15	$2,629.90	$2,825.40
Repeatability std (g)	±0.0001			±0.001				±0.01				±0.1
Linearity (g)	±0.0002			±0.002				±0.02				±0.2
Stabilization Time (sec)	<2		<3	<1.5				<1
Pan Size	Ø 3.5 in / 90 mm			Ø 3.5 in / 90 mm				7.5 x 7.9 in / 190 x 200 mm
Weighing Applications	Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
Weighing Units	Gram, Milligram, Kilogram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Custom Units
Calibration	AutoCal™ on Ä1.5°C temperature change, 11 hours, and external calibration
Tare Range	To capacity by subtraction
Power Requirements	AC adapter input: 100-240 VAC 0.6A 50-60 Hz
Display Type	Full-color VGA graphic display, 4-wire resistive touch screen
Display Size	5.7 in / 145 mm (diagonal)

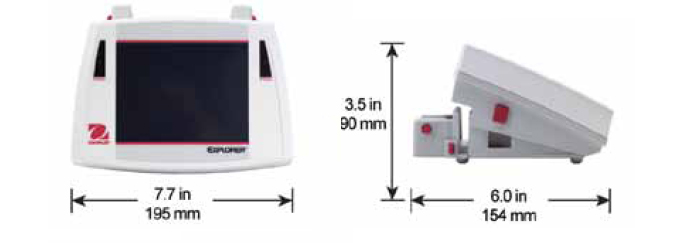

Display Housing Dimensions (W x H x D)	7.7 x 3.5 x 6.0 in / 195 x 90 x 154 mm

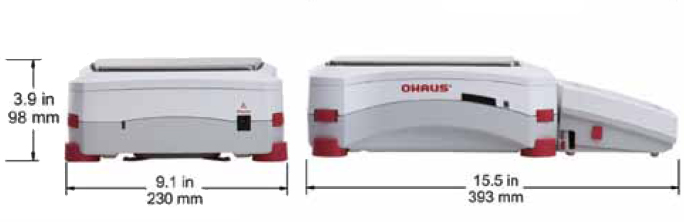

Base Housing Dimensions (W x H x D)	9.1 x 13.8 x 15.5 in / 230 x 350 x 393 mm							9.1 x 3.9 x 15.5 in / 230 x 98 x 393 mm
Communication	RS232, USB
Operating Temperature Range	50°F (10°C) to 86°F (30°C)
Operating Humidity Range	15% to 80% at 87.8°F (31°C) decreasing linearly to 50% at 40°C, non-condensing
Storage Conditions	-14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing
Net Weight	15.2 lb / 6.9 kg							9.5 lb / 4.3 kg		11 lb / 5 kg
Shipping Weight	21.1 lb / 9.6 kg							15 lb / 6.8 kg		16.3 lb / 7.4 kg
Shipping Dimensions	21 x 15 x 21 in / 55 x 38.5 x 55.1 cm							21 x 15 x 12 in / 55 x 38.5 x 29.1 cm

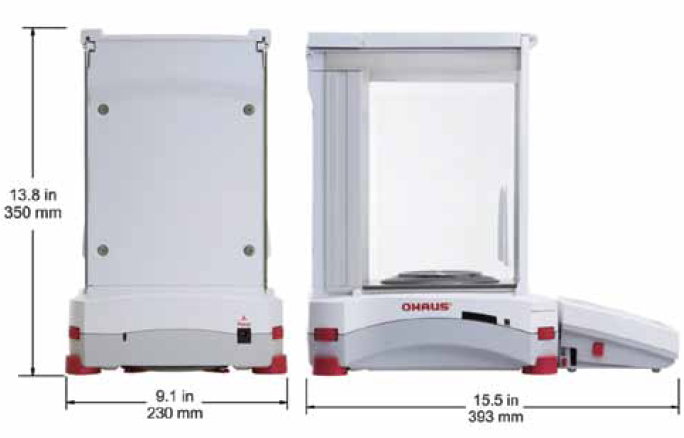

Dimensions

Accessories

EX Explorer Series Accessories
83021085 Interface Cable, USB (Type A to B), EX Price: $95.40 In Stock	83021083 Display Extension Cable, EX Price: $43.20 In Stock	470004-010 Security Device Price: $114.30 In Stock	83033633 In Use Cover for EX Price: $40.50 In Stock	83021082 Interface Kit, Ethernet, EX Price: $95.40 In Stock	83021081 Interface Kit,Second RS232, EX Price: $95.40 In Stock
83021102 Tower Mount for Display EX Price: $81.90 In Stock	83021086 Foot Switch Kit, E Price: $90.90 In Stock	80253384 Density Determination Kit Price: $390.60 In Stock	80500746 Collect Software Price: $422.10 In Stock
Thermal Printer & Thermal Printer Accessories
80251992 Palm-Sized Thermal Printer Price: $388.80 In Stock	80252581 Cable for 802521992 Thermal Printer Price: $95.50 In Stock	80251931 Thermal Paper Refill, 1 Roll Price: $8.00 In Stock	80251931X5 Thermal Paper Refill, 5 pack Price: $41.00 In Stock
Dot Matrix Printer & Dot Matrix Printer Accessories
80252042 Palm-Sized Dot Matrix Printer Price: $457.20 In Stock	80252571 Cable for 80252042 Dot Matrix Printer Price: $95.40 In Stock	80251932 Paper Refill, 1 Roll Price: $8.10 In Stock	80251932X5 Paper Refill, 5 pack Price: $40.50 In Stock	80251933 Printer Ribbon for the 80252042 Dot Matrix Printer Price: $26.10 In Stock
