Ohaus VX 3000 Washdown Legal For Trade Floor Scales

Specifications Chart

Only the VX32XW2500L and VX32XW5000L Models are
Legal for Trade

The OHAUS VX Series is a portable low-profile floor scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.

Quick connects and factory calibration allows the package to operate out-of-the-box with minimal setup.

The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses. Quick connects and factory calibration allows the package to operate out-of-the-box with minimal setup. This time saving solution combines a 5000d NTEP approved floor scale (VX2500L and VX5000L) with four analog sealed load cells, and a stainless steel NEMA 4X/IP66 indicator (T31XW) featuring an RS232 interface, high-visibility backlit LCD display, counting function and easy-to-operate positive feedback keys

Standard Features Include
  • 2,500 lb, 5,000 lb, and 10,000 lb scale capacities
  • 4’ x 4’ and 5’ x 5’ platforms with structural bracing that ensures a rigid construction
  • 1/8” (up to 5,000lb models) and 5/16” (10,000lb models) thick top plate with raised cross-hatch surface for added durability and slip resistance
  • Four IP67 nickel plated alloy steel load cells
  • Side access NEMA4X/IP65 dust and water protected junction box with 25’ long cable
  • Features eye bolt mounting holes to allow easier lifting and positioning of the platform
Ohaus VX 3000 Washdown
Legal For Trade Floor Scales
See Lowest Price In Cart

Ohaus STP-103 Palm-Sized Thermal Printer
Ohaus STP-103 Palm-Sized Thermal Printer, add $854.25
Ohaus SF40A Portable Dot-Matrix Impact Printer
Ohaus SF40A Portable Dot-Matrix Impact Printer, add $1,107.55

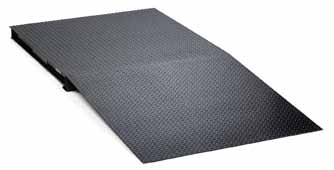

Ohaus 80252766 Floor Ramp 4 ft Wide for VX32XW2500L or VX32XW5000L Floor Scale
Ohaus 80252766 Floor Ramp 4 ft Wide for VX32XW2500L or VX32XW5000L Floor Scale, add $1,053.15
Ohaus 80252795 Floor Ramp 4 ft Wide for VX32XW10000L Floor Scale
Ohaus 80252795 Floor Ramp 4 ft Wide for VX32XW10000L Floor Scale, add $2,439.50
Ohaus 80252767 Floor Ramp 5 ft Wide for VX32XW5000X Floor Scale
Ohaus 80252767 Floor Ramp 5 ft Wide for VX32XW5000X Floor Scale, add $1,355.75
Ohaus 80252796 Floor Ramp 5 ft Wide fo VX32XW10000X Floor Scale
Ohaus 80252796 Floor Ramp 5 ft Wide fo VX32XW10000X Floor Scale, add $2,694.50

Specifications Chart


Only VX32XW2500L and
VX32XW5000L Models
  • Factory-wired and pre-calibrated with OHAUS T31XW stainless steel indicator featuring:
    • 304 stainless steel construction with NEMA 4X/IP66 protection
    • Backlit LCD display with high-visibility 1” high digits
    • Five weighing units (lb, kg, g, oz, lb:oz)
    • Piece counting mode for warehousing and inventory applications
    • Wall mount bracket included
  • VX Series Floor Scales Include The Durable T32XW Indicator

    The OHAUS T32XW Economy Indicator replaces the T31XW with the addition of an improved NEMA4X/IP65 washdown all stainless steel housing and a 58-hour internal rechargeable battery. The T32XW also features software for weighing and simple parts counting. Stainless steel mounting bracket included.

    • lb, oz, lb-oz, kg and g weighing units
    • Ability to drive up to four 350O load cells
    • Up to 20,000 lb/kg capacity with 20,000d maximum displayed default weighing resolution
    • 6,000d NTEP certified and Measurement Canada approved Legal-for-Trade weighing resolution
    • Minimum parts counting average piece weight of 1d
    • Built-in bi-directional RS232C for printing or connection to PC
    • Adjustable filtering levels to meet the requirements of industrial environments

    Ohaus VX 3000 Washdown Legal For Trade Floor Scales

    Specifications

    Model Number

    VX32XW2500L VX32XW5000L VX32XW10000L VX32XW5000X VX32XW10000X
    Price

    Capacity x Readability

    2,500 lb x 0.5 lb
    1,000 kg x 0.2 kg
    5,000 lb x 1 lb
    2,200 kg x 0.5 kg
    10,000 lb x 2 lb
    4,500 kg x 1 kg
    5,000 lb x 1 lb
    2,200 kg x 0.5 kg
    10,000 lb x 2 lb
    4,500 kg x 1 kg

    Dimensions

    4’ x 4’ x 4.5” - 1,219 x 1,219 x 115 mm 5’ x 5’ x 4.5” - 1,524 x 1,524 x 115 mm

    Resolution

    NTEP 5000d NTEP 5000d 5000d 5000d 5000d
    Certifications NTEP: T32XW Indicator: CC 08-066A1 / VX Platform: CC 08-069 / Load cells: CC 91-043A4
    Measurement Canada: T32XW Indicator: AM-5713C rev. 1
    Not NTEP

    Indicator Model

    T32XW
    Indicator Construction NEMA4X/IP66 Stainless Steel
    Weighing Units lb, kg
    Modes Weighing, Counting* (min APW 1d)
    Display 1 in / 25 mm high, 6-digit, 7-segment, bright white backlit LCD
    Keypad 4-button, raised with tactile positive feedback membrane switches
    Stabilization Time Within 2 seconds
    Auto-zero Tracking Off, 0.5, 1 or 3d
    Zeroing Range 0%, 2% or 100% of capacity
    Span Calibration 5 lb or kg to 100% of capacity
    Interface RS232C, bi-directional
    Power 100-240 VAC / 50-60 Hz, internal power supply
    Indicator Dimensions 8.3 x 2.8 x 5.8 in / 212 x 71 x 149 mm

    Net Weight

    185 lb / 84 kg 437 lb / 198 kg 280 lb / 127 kg 660 lb / 300 kg

    Shipping Weight

    259 lb / 118 kg 509 lb / 231 kg 349 lb / 158 kg 729 lb / 331 kg
    Scale Shipping Dimensions (WxDxH) 60 x 48 x 14 in
    1,524 x 1,220 x 356 mm
    72 x 60 x 14 in / 1,829 x 1,524 x 356 mm
    Material Painted Carbon Steel, treaded surface, fixed top plate, thickness 1/8” (up to 5000lb), 5/16” (10,000lb)
    Maximum Central Load 100% of maximum capacity
    Safe End Load Capacity 100% of maximum capacity
    Load Cell 4 x Shear Beam, IP67, nickel plated alloy steel
    LC Output Impedance / Excitation Voltage 350 Ù ± 3 Ù / 10V recommended~15V max, AC/DC
    Junction Box Side panel access, NEMA 4X/IP67 Sealed Stainless Steel
    Feet 4 x fixed bolt design, adjustable height
    Operating Temperature 50°F to 104°F / 10 °C to 40 °C
