| RADWAG WTC Series Precision Balances |
Authorized Dealer |
| The WTC Series precision balance is designed for fast and precise weighing in laboratory conditions. It can be used in areas with no access to mains (230V), as an internal rechargeable battery comes standard. The balance is equipped with a stainless steel weighing pan, RS 232 output, USB-A, USB-B and backlit LCD display.
|
| Lab Balances |
The WTC Series precision balance is designed for fast and precise weighing in laboratory conditions. It can be used in areas with no access to mains (230V), as an internal rechargeable battery comes standard. The balance is equipped with a stainless steel weighing pan, RS 232 output, USB-A, USB-B and backlit LCD display.
- CHECKWEIGHING - Checkweighing function is used for checking whether the measured sample mass is within the predefined threshold values, Low [LO] and Hgh [HI]. The thresholds are given in [g] and [kg] units. Current state of a sample being measured is signalled by means of pictorgams located on a display for laboratory balances, for industrial scales Stackligt System is used. This visual /- inspection is in operation during segregation, control or packing process of products for which mass has bees determined with a specifaied tolerance, eg. 12860 g 961
- PARTS COUNTING - Function using mass measurement for determination of measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
- PERCENT SETUP - Percent setup function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly excessed.
- ANIMAL WEIGHING - Process of mass determination for a product which may unwillingly reposition within the weighing pan. Mass determination in such cases requires much longer period of time when compared to typical weighing process. It is the user who defines period of time needed for control of measured product mass. The user can thus optimaze the function depending on the measured product characteristics.
- PEAK HOLD - Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
- TOTALIZING - Function adding new mass value to already obtained one. This allows to determine mass content of the mixture, being a composition of number of different consistence components. Totalizing is limited by maximum capacity parameter.
| Model |

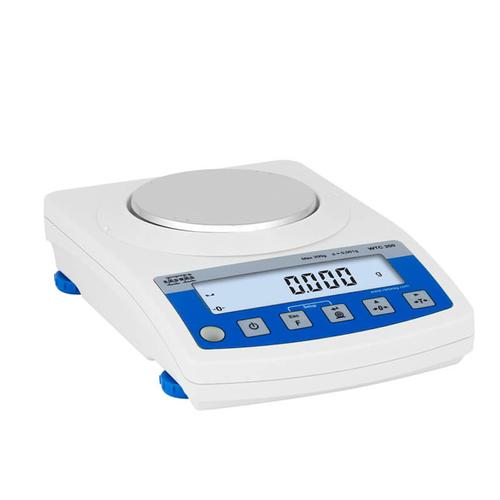

WTC 200 |
WTC 600 |

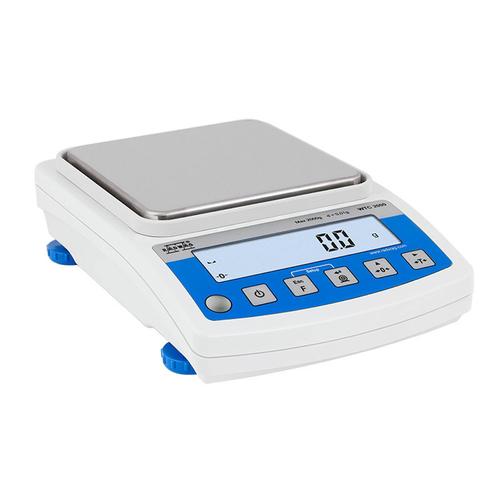

WTC 2000 |
| Price |
$450.30
|
$377.15
|
$425.60
|
| Capacity x Readability |
200 x 0.001 g |
600 x 0.01 g |
2000 x 0.01 g |
| OIML Class |
- |
II |
- |
| Tare range |
-200 g |
-600 g |
-2000 g |
| Linearity |
±0.004 g |
±0.02 g |
±0.03 g |
| Repeatability |
0.002 g |
0.01 g |
0.01 g |
| Stabilization time |
2 s |
| Working temperature |
+15 - +30 °C |
| Pan size |
ø 100 mm |
128 × 128 mm |
128 × 128 mm |
| Atmospheric humidity |
10÷85% RH no condensation |
| Display |
LCD (backlit) |
| Power supply |
100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
| Operation time on batteries |
33 h (average time) |
| Interface |
1×RS 232, USB-A, USB-B |
RS 232 |
1×RS 232, USB-A, USB-B |
| Adjustment / Calibration |
external |
| IP rating |
IP 43 |
| Net weight/Gross weight |
1.3/2 kg |
