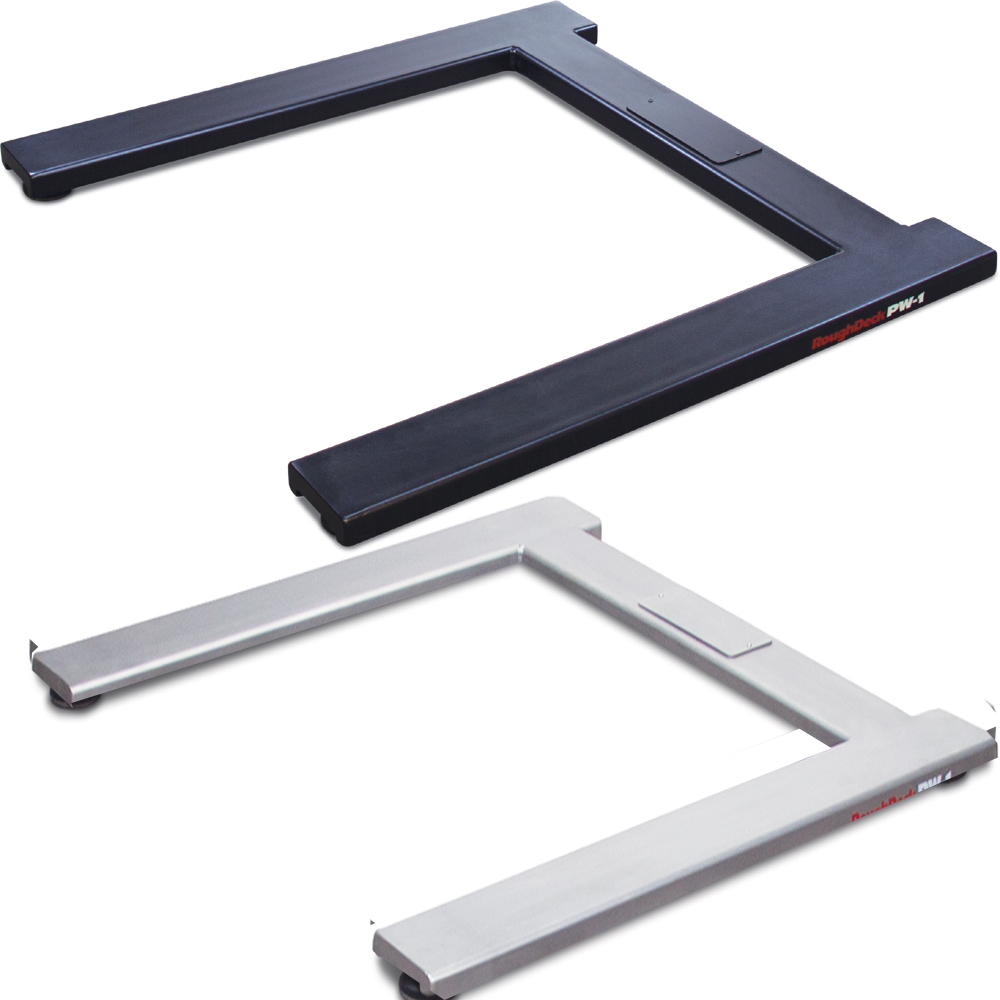

Rice Lake Roughdeck PW-1 Low-Profile Pallet Scale
A low-profile design ensures a wider variety of pallets, skids and totes can be weighed on the scale. No ramps or pits makes for a fast and simple installation, and a top-access junction box provides easy service and troubleshooting access
Rice Lake RoughDeck PW-1 177904 Mild Steel 48 x 48 in Low-Profile Pallet Floor Scale Base Only 2500 lb
Base Only Indicator Sold Separately

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale for Mild Steel Models
Rice Lake Floor anchor plates, Mild Steel (set of 2) , Add $32.30
Rice Lake Roughdeck PW-1 Mild steel deck with RL35023S stainless steel FM approved load cells and hardware , Add $270.00
Rice Lake Roughdeck PW-1 Mild steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware , Add $450.00
Rice Lake Roughdeck PW-1 Mild steel deck with RL35082 hermetically sealed IP69K stainless steel FM approved load cells and hardware , Add $720.00
Rice Lake Roughdeck PW-1 Epoxy paint for Mild steel deck , Add $81.00
 Factory Installed Options Must be added with scale for Stainless Steel Models
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $42.50
Rice Lake Roughdeck PW-1 Stainless steel deck with RLH35 welded-seal IP67 stainless steel FM approved load cells and hardware , Add $180.00
Rice Lake Roughdeck PW-1 Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel FM approved load cells and hardware , Add $450.00
Wheel kit
Rice Lake Roughdeck PW-1 178250 Wheel kit
Rice Lake Roughdeck PW-1 178250 Wheel kit, add $84.00
Rice Lake Roughdeck
PW-1 Low-Profile Pallet Scale

Price From: $1427.40



Select Indicator (Must be added with scale)
Rice Lake 120 LED Digital Weight Indicator , Add $359.45
Rice Lake 120 Plus LCD Digital Weight Indicator , Add $470.05
Rice Lake IQ Plus 210 Stainless Steel LED Digital Weight Indicator , Add $572.75
Rice Lake 480 LED Legend Series Digital Weight Indicator , Add $691.25
Rice Lake 482 LCD Legend Series Digital Weight Indicator , Add $791.70

For a full list of Rice Lake Indicators Click Here

Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $268.60
Rice Lake?s RoughDeck PW-1 pallet scale is an economical alternative to a floor scale in manufacturing and warehouse environments. The u-shape of the pallet scale is designed to decrease cycle time when weighing pallets, skids and totes by eliminating the need to remove the pallet jack from a traditional floor scale. Available in both mild and stainless steel, the PW-1 pallet scale comes in a variety of sizes and capacities, as well as with an optional wheel kit for easy portability.

A low-profile design ensures a wider variety of pallets, skids and totes can be weighed on the scale. No ramps or pits makes for a fast and simple installation, and a top-access junction box provides easy service and troubleshooting access.

  • Low-profile design
  • 20 feet SURVIVOR® EL147HE hostile environment load cell cable
  • Top-access junction box
  • TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • 4 adjustable stainless steel SUREFOOT? support feet
  • 4 NTEP Certified stainless steel, shear beam load cells
Mild Steel Models 177904 177905 177906 177907 177908 177909
Rice Lake RoughDeck PW-1
$1,427.40
buy now
Rice Lake RoughDeck PW-1
$1,556.10
buy now
Rice Lake RoughDeck PW-1
$1,735.50
buy now
Rice Lake RoughDeck PW-1
$1,427.40
buy now
Rice Lake RoughDeck PW-1
$1,556.10
buy now
Rice Lake RoughDeck PW-1
$1,735.50
buy now
Stainless Steel Models 177910 177911 177912 177913 177914 177915
Rice Lake RoughDeck PW-1
$2,972.20
buy now
Rice Lake RoughDeck PW-1
$3,141.60
buy now
Rice Lake RoughDeck PW-1
$3,311.00
buy now
Rice Lake RoughDeck PW-1
$2,972.20
buy now
Rice Lake RoughDeck PW-1
$3,141.60
buy now
Rice Lake RoughDeck PW-1
$3,311.00
buy now
Size (W x L) 48 in x 48 in 48 in x 60 in 60 in x 60 in 48 in x 48 in 48 in x 60 in 60 in x 60 in
Capacity 2500 lb 2500 lb 2500 lb 5000 lb 5000 lb 5000 lb
End Load Capacity 80% full scale at 2,500 lb
100% full scale at 5,000 lb
Junction Box TuffSeal JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Cable 20 feet SURVIVOR® EL147HE hostile environment load cell cable
Warranty Load cells two years, all other components one year
Approvals FM Approved

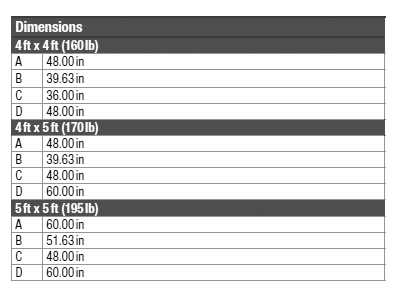

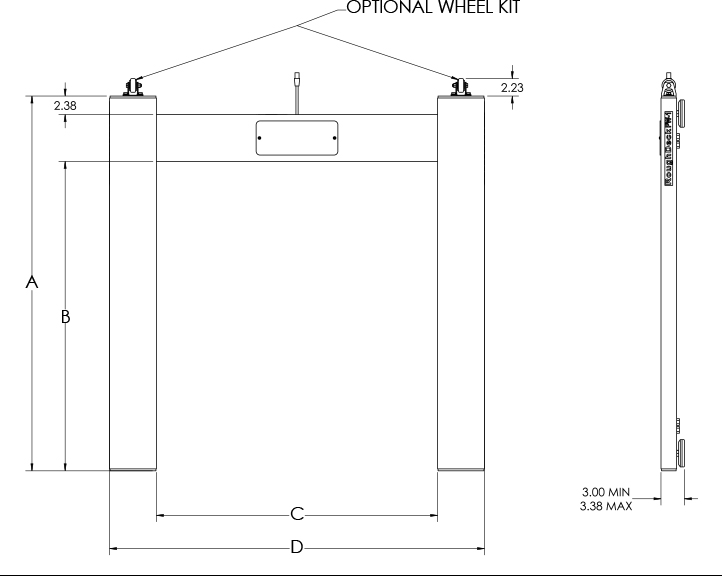

Rice Lake RoughDeck PW-1 177904 Mild Steel 48 x 48 in Low-Profile Pallet Floor Scale Base Only 2500 lb dims
