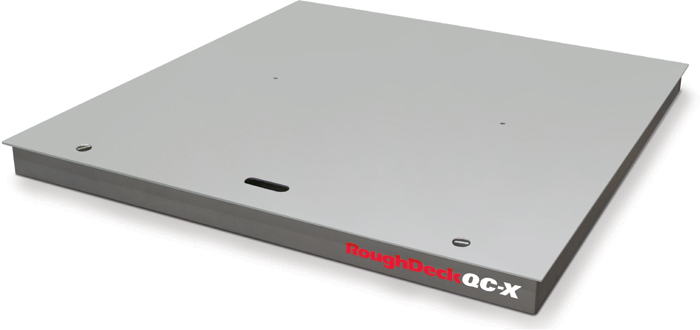

Rice Lake Roughdeck QC-X Extreme Stainless Steel Lift Floor Scales
The RoughDeck QC-X base is composed of solid, stainless steel, vertical plates?providing superior protection against bacteria and mold growth. The rugged design incorporates 304 stainless steel construction and four welded-seal load cells with PTFE cable for steam cleaning and washdown areas. The RoughDeck QC-X is designed to create ideal cleaning conditions for strict sanitation requirements.
Rice Lake Roughdeck QC-X 175686 Stainless Steel Smooth Top Extreme Lift Floor Scale 4 x 4 ft - Base Only - 5000 lb
Base Only Indicator Sold Separately

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $42.50
Indicator Column\Stand
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch
Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $268.60
Rice Lake Roughdeck QC-X Stainless Steel Lift Floor Scales

Price From: $9800.20



Select Indicator (Must be added with scale)
Rice Lake IQ Plus 210 Stainless Steel LED Digital Weight Indicator , Add $572.75
Rice Lake 480 LED Legend Series Digital Weight Indicator , Add $691.25
Rice Lake 482 LCD Legend Series Digital Weight Indicator , Add $791.70

For a full list of Rice Lake Indicators Click Here

4 x 4 Ramps
Rice Lake Roughdeck QC-X 175692 Stainless Steel Access Ramp 4 ft x 3 ft x 4.625 in fits hinge/handhole side for PN 175686, 175689, 175688 or 175690
Rice Lake Roughdeck QC-X 175692 Stainless Steel Access Ramp 4 ft x 3 ft x 4.625 in fits hinge/handhole side for PN 175686, 175689, 175688 or 175690, add $3,384.15
Rice Lake Roughdeck QC-X 175693 Stainless Steel Access Ramp 4 ft x 4 ft x 4.625 in fits hinge/handhole side for PN 175686, 175689, 175688 or 175690
Rice Lake Roughdeck QC-X 175693 Stainless Steel Access Ramp 4 ft x 4 ft x 4.625 in fits hinge/handhole side for PN 175686, 175689, 175688 or 175690, add $3,876.95
Rice Lake Roughdeck QC-X 178840 Stainless Steel Access Ramp 4 ft x 3 ft x 4.625 in fits side of scale for PN 175686, 175689, 175688 or 175690
Rice Lake Roughdeck QC-X 178840 Stainless Steel Access Ramp 4 ft x 3 ft x 4.625 in fits side of scale for PN 175686, 175689, 175688 or 175690, add $3,384.15
Rice Lake Roughdeck QC-X 178849 Stainless Steel Access Ramp 4 ft x 4 ft x 4.625 in fits side of scale for PN 175686, 175689, 175688 or 175690
Rice Lake Roughdeck QC-X 178849 Stainless Steel Access Ramp 4 ft x 4 ft x 4.625 in fits side of scale for PN 175686, 175689, 175688 or 175690, add $3,876.95
5 x 5 Ramps
Rice Lake Roughdeck QC-X 175699 Stainless Steel Access Ramp 5 ft x 3 ft x 4.625 in fits hinge/handhole side for PN 175694, 175695, 175696 or 175697
Rice Lake Roughdeck QC-X 175699 Stainless Steel Access Ramp 5 ft x 3 ft x 4.625 in fits hinge/handhole side for PN 175694, 175695, 175696 or 175697, add $3,876.95
Rice Lake Roughdeck QC-X 175700 Stainless Steel Access Ramp 5 ft x 4 ft x 4.625 in fits hinge/handhole side for PN 175694, 175695, 175696 or 175697
Rice Lake Roughdeck QC-X 175700 Stainless Steel Access Ramp 5 ft x 4 ft x 4.625 in fits hinge/handhole side for PN 175694, 175695, 175696 or 175697, add $4,300.45
Rice Lake Roughdeck QC-X 178850 Stainless Steel Access Ramp 5 ft x 3 ft x 4.625 in fits side of scale for PN 175694, 175695, 175696 or 175697
Rice Lake Roughdeck QC-X 178850 Stainless Steel Access Ramp 5 ft x 3 ft x 4.625 in fits side of scale for PN 175694, 175695, 175696 or 175697, add $3,876.95
Rice Lake Roughdeck QC-X 178851 Stainless Steel Access Ramp 5 ft x 4 ft x 4.625 in fits side of scale for PN 175694, 175695, 175696 or 175697
Rice Lake Roughdeck QC-X 178851 Stainless Steel Access Ramp 5 ft x 4 ft x 4.625 in fits side of scale for PN 175694, 175695, 175696 or 175697, add $4,300.45
Pit Frame
Rice Lake Roughdeck QC-X 175691 Pit Frame 4.0 ft x 4.0 ft  for PN 175686 , 175689, 175688 or 175690
Rice Lake Roughdeck QC-X 175691 Pit Frame 4.0 ft x 4.0 ft for PN 175686 , 175689, 175688 or 175690, add $1,899.30
Rice Lake Roughdeck QC-X 175698 Pit Frame 5.0 ft x 5.0 ft  for PN 175694, 175695, 175696 or 175697
Rice Lake Roughdeck QC-X 175698 Pit Frame 5.0 ft x 5.0 ft for PN 175694, 175695, 175696 or 175697, add $2,055.30

Safeguard Against What Lies Beneath What can?t be seen can lead to devastating consequences?both for production facilities and consumers. For ultimate microbial resistance in sanitary environments, Rice Lake?s RoughDeck® QC-X washdown floor scale is designed to safeguard against microscopic bacteria in food processing, pharmaceutical and chemical applications.

The RoughDeck QC-X base is composed of solid, stainless steel, vertical plates?providing superior protection against bacteria and mold growth. The rugged design incorporates 304 stainless steel construction and four welded-seal load cells with PTFE cable for steam cleaning and washdown areas. The RoughDeck QC-X is designed to create ideal cleaning conditions for strict sanitation requirements.

When protection matters most, Rice Lake?s QC-X is the ideal solution for strict sanitary washdown environments.

Extreme Resistance The scale base is built from solid, stainless steel plates. The absence of tubes or channels means peace of mind when cleaning the scale. Continuous welds on the solid base plates follow strict sanitary design principles.

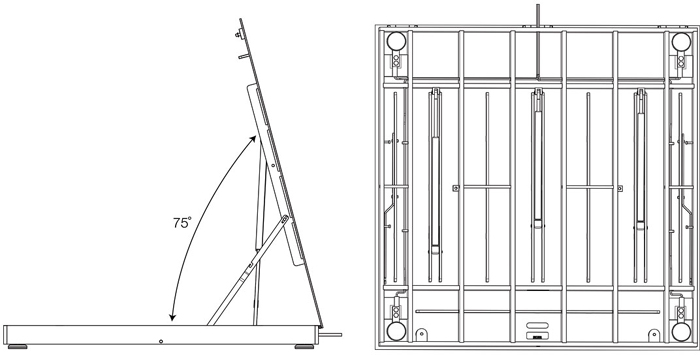

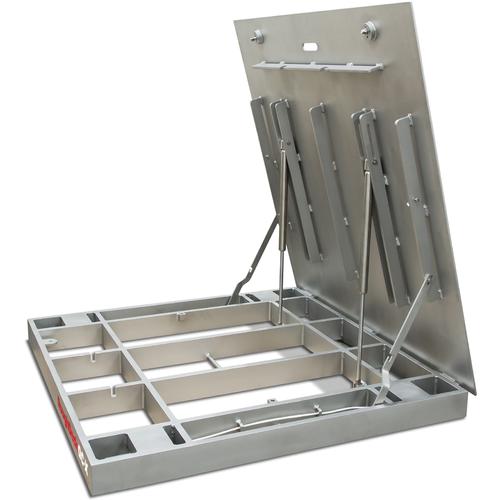

Extreme Access The top plate opens 75 degrees, allowing the entire scale interior to be washed and inspected.

Extreme Strength An allover 304 stainless steel construction provides rugged strength in the toughest food, pharmaceutical or chemical environments. A choice of a smooth top plate deck or a diamond teradplate deck (for extra traction) allow further application accommodation

Standard Features
  • Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
  • Manual drop-in-place safety bars
  • Four stainless steel, welded seal IP69K, shear-beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
  • Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box, can be mounted up to 15 ft away
  • 1/4 in top plate
  • Four adjustable stainless steel SUREFOOT? support feet
  • Top plate opens 75 degrees
  • Tool-less top plate lock downs
  • Two 1/2-20NF threaded eyebolt holes for lifting scale into pit frame

Some Notes about the Pit Frams

  • Use concrete of minimum yield strength 5,000 PSI or 6-bag mix.
  • Allow 7 days to cure (wet concrete periodically during this time).
  • Dimensions shown assume firm, stable soil conditions. When soil conditions are not adequate, place foundation at sufficient depth.
  • In wet or washdown applications, we recommend the use of hermetically sealed load cells, and that the junction box be mounted remotely in a dry location.
  • Wire mesh to have minimum 0.75 in cover bottom and sides.
Models Smooth Top Plate Models Diamond Tread Top Plate
175686 175689 175694 175695 175688 175690 175696 175697
Rice Lake Roughdeck QC-X
$9,800.20
buy now
Rice Lake Roughdeck QC-X
$9,800.20
buy now
Rice Lake Roughdeck QC-X
$13,524.20
buy now
Rice Lake Roughdeck QC-X
$13,524.20
buy now
Rice Lake Roughdeck QC-X
$10,469.00
buy now
Rice Lake Roughdeck QC-X
$10,453.80
buy now
Rice Lake Roughdeck QC-X
$14,569.20
buy now
Rice Lake Roughdeck QC-X
$14,569.20
buy now
Capacity x Readability 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb 5000 x 1 lb 10000 x 2 lb
Size (W x L) 4 ft x 4 ft 4 ft x 4 ft 5 ft x 5 ft 5 ft x 5 ft 4 ft x 4 ft 4 ft x 4 ft 5 ft x 5 ft 5 ft x 5 ft
Height 4.625 in 4.625 in 4.625 in 4.625 in 4.625 in 4.625 in 4.625 in 4.625 in
End Load Capacity 100% full scale at 5,000 lb
80% full scale at 10,000 lb
Remote Junction Box Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box, can be mounted up to 15 ft away
Deck 1/4 in thick smooth top plate 1/4 in thick Diamond Tread top plate
Threaded Eyebolt Hole Two 1/2-20NF threaded eyebolt holes for lifting scale into pit frame
Load cells Four stainless steel, welded seal IP69K, shear-beam load cells
Cable 20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
Warranty RoughDeck QC-X weldment five years, load cells two years, all other components one year

Scale Dims

Scale Dims
