Sartorius Cubis Ultra Micro Balance 2.1g x 0.0001mg Sartorious balances and weighing products
Authorized Dealer
Cubis® is the new benchmark, setting the standards for all others to follow. The Cubis® modular equipment series, consisting of display and control units, weighing modules and draft shields, interface modules .

Specifications Chart

Buy a Cubis Balance
Get: One of These Free Accessories:
  • Statistical Data Printer: (Sartorius # YDP20-OCE)
  • Cubis Printer: (Sartorius # YDP10-0CE)
  • Software Wedge Pro: (Sartorius # YSW06)
  • Cal-Pak or Calibration Weights

Sartorius Cubis Ultra Micro Balance
2.1g x 0.0001mg

FREE UPS Ground Shipping
(within the 48 continental US States)

Choose Your FREE Accessory:
(free with the Purchase of any Sartorius Micro balance above):


Sartorius YPE01RC Foot Switch, add $379.89

Sartorius YFS01 Foot Switch, add $307.80

Sartorius YHS02 Hand Switch, add $340.20

Sartorius YRD11Z Indicator,for over/under checkweighing, 9 ft., add $505.80




Cubis® is the new benchmark, setting the standards for all others to follow. The Cubis® modular equipment series, consisting of display and control units, weighing modules and draft shields, interface modules and an extensive line of accessories, enables you to customize your Cubis® balance to meet your specific requirements for any weighing task. Offered in a choice of three display and control units, Cubis® meets the requirements of different operating concepts and covers the entire range of laboratory applications.

  • Q-Guide – novel, wizard-supported User/Task Management for easiest operation – even when the most complex weighing tasks need to be performed.
  • Q-Level – leveling, fast, easy and reliable. A standard feature, with interactive prompts displayed during manual leveling (MSA and MSU). Cubis also provides the option of motorized leveling – for fully automatic leveling at the touch of a key (only for 1mg models).
  • Q-Pan – the first lab balance that automatically minimizes off-center loading errors and thus maximizes weighing accuracy.
  • Q-Com – a communication design that satisfies every need, and then some. USB, Ethernet andRS-232C ports, the latter for connecting accessory equipment, are built-in standard features. With an integrated SD card reader for data storage and convenient data transfer (not for MSE). Additional interfaces, such as a Bluetooth® wireless technology module are optionally available.
  • Advanced Pharma Compliance. Cubis® is ideal for use in regulated areas in the pharmaceutical industry, e.g., with User/Password Management, Audit Trail function, Alibi memory, alert messages and reminder functions, isoCAL fully automatic calibration and adjustment, and is designed for easy and thorough cleaning.
  • Cubis® offers the first top-loading semi-microbalance featuring full resolution (readability 10µg) up to 220g. Space savings up to 25%

For all analytical balance models, Cubis offers the ideal draft shield chamber, whichever version you choose for manual or motorized, user-friendly operation. It can be quickly and conveniently cleaned for "spotless" cleaning results. Along with the optionally integrated ionizer, the Cubis draft shield helps reduce interfering effects that can cause weighing errors, such as static electricity on samples or weighing containers.

Sartorius Cubis Ultra Micro Balance 2.1g x 0.0001mg Specs:

Model MSA2.7S-000-DM MSA2.7S-0TR-DM MSA2.7S-000-DF MSU2.7S-000-DM MSU2.7S-000-DF MSE2.7S-000-DM MSE2.7S-000-DF
MSE2.7S-000-DF
$28,035.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$28,143.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$28,755.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$27,585.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$28,305.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$26,685.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
MSE2.7S-000-DF
$27,405.00

With Free
YDP10 Printer
2g Weight
Software
Ethernet
Software
RE-232
Granite
13 x 15
Granite
16 x 21
Capacity x Readability 2.1g x 0.0001 mg 2.1g x 0.0001 mg 2.1g x 0.0001 mg 2.1g x 0.0001 mg 2.1g x 0.0001 mg 2.1g x 0.0001 mg 2.1g x 0.0001 mg
Test Record
Certificate
- YES - - - - -
Draft Shield Type Standard Microbalance Standard Microbalance Filter bal.draft shield, micro Standard Microbalance Filter bal.draft shield, micro Standard Microbalance Filter bal.draft shield, micro
Tare range
(subtractive)
– 2.1g – 2.1g – 2.1g – 2.1g – 2.1g – 2.1g – 2.1g
Repeatability 0.00025<±mg 0.00025<±mg 0.00025<±mg 0.00025<±mg 0.00025<±mg 0.00025<±mg 0.00025<±mg
Linearity 0.0009<±mg 0.0009<±mg 0.0009<±mg 0.0009<±mg 0.0009<±mg 0.0009<±mg 0.0009<±mg
Corner load
(test load [g])
0.0025(1)mg 0.0025(1)mg 0.0025(1)mg 0.0025(1)mg 0.0025(1)mg 0.0025(1)mg 0.0025(1)mg
Min. initial weight
(USP, USP31-NF26)
1mg 1mg - 1mg - 1mg -
Sensitivity drift between
+10 to +30°C
1 ±ppm/K 1 ±ppm/K 1 ±ppm/K 1 ±ppm/K 1 ±ppm/K 1 ±ppm/K 1 ±ppm/K
Typical stabilization time < 7 sec < 7 sec < 7 sec < 7 sec < 7 sec < 7 sec < 7 sec
Typical measurement time < 10 sec < 10 sec < 10 sec < 10 sec < 10 sec < 10 sec < 10 sec
External standard calibration value 2g (E2) 2g (E2) 2g (E2) 2g (E2) 2g (E2) 2g (E2) 2g (E2)
Display result 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4
Weighing pan size Ø 20mm 20mm 50mm 20mm 50mm 20mm 50mm
Weighing chamber height 70mm 70mm 15mm 70mm 15mm 70mm 15mm

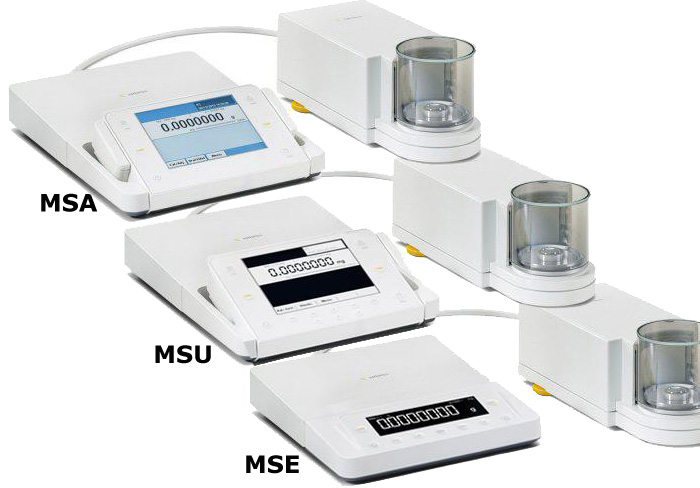

Model Type MSA MSU MSE
Operation Touch screen, keys for central basic functions Keys Keys
Display High-resolution color TFT, 5.7" graphic display High-resolution black-and-white, 5.7" graphical display Liquid crystal display, black-andwhite
Adaptation of the display and control unit Tiltable display, removable display and control unit Removable display and control unit
Standard data interfaces
  • USB (integrated into weighing module)
  • Various data protocols available (can also be connected to software designed for external manufacturers)
  • RS-232C accessory interface, 25-pin (integrated into weighing module)
  • Ethernet (integrated into display and service unit)
  • USB (integrated into weighing module)
  • RS-232C accessory interface, 25-pin (integrated into weighing module)
SD card reader Integrated as standard into display and control unit -
Operation of the motorized draft shield (only for DA, DI, DM draft shields) Activated by side keys or touch-free using IR switch (optional); learning capability Activated by key or touch-free using IR switch (optional); learning capability
Applications Unit conversion, SQmin function for minimum initial weight according to USP, isoCAL automatic calibration | adjustment function, individual identifiers, density determination, statistics, calculations, averaging, formulation, weighing in percent, time-controlled functions, totalizing, DKD measurement uncertainty, second tare memory, counting, checkweighing, alibi memory, audit trail Unit conversion, isoCAL automatic calibration | adjustment function, density determination (buoyancy method only), calculations, averaging, net | total formulation, weighing in percent, counting
Power supply 100–240 V~, –15 %/+10 %, 50–60 Hz, 1.0 A
Input voltage 15 VDC, ± 5 %
Power consumption 7W (max.)
Ambient temperature Operation +5°C to +40°C
Highest relative humidity 80 % for temperatures up to 31°C, decreasing linearly to 50 % relative humidity for 40°C
Safety of electrical equipment According to EN 61010-1:2001: Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements
Electromagnetic compatibility According to EN 61326-1:2006: Electrical equipment for measurement, control, and laboratory use – EMCrequirements – Part 1: General requirements
Defined immunity to interference Suitable for use in industrial areas
Interference emission Class B (suitable for use in residential areas and areas that are connected to a low voltage network that also supplies residential buildings).
