Shimpo FG-3000 Compact, Digital Force Gauges SHIMPO Equipment
Authorized Dealer
The FG-3000 Series digital force gauges are the choice for simple, cost-effective tension and compression testing. Combining one of the most compact housings, yet maintaining a large back- lit LCD, these units were designed to fit perfectly in the hand for ease of use. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements
Call New

Specifications Chart

Grips and Adapters

Shimpo FG-3000 Compact, Digital Force Gauges

Price: $284.05

The new FG-3000 Series digital force gauges are the choice for simple, cost-effective tension and compression testing. Combining one of the most compact housings, yet maintaining a large back- lit LCD, these units were designed to fit perfectly in the hand for ease of use. The multi-language FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements. Three modes of operation are selectable: Track mode displays live readings, Peak mode records the maximum reading sensed during the test, and Pre-set mode which activates user defined high and low limit set points. The programmable limits provide a quick visual and audible indication if a test passes or fails. In addition, a comparator output enables integration of the instrument into your quality system for repetitive testing such as on production lines.

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fai l icons provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

These high- tech instruments can log up to 500 readings at the push of a button for instant data acquisition. The data can be viewed on screen, sent to optional printer, or uploaded on the free software program for graphing and statistical analysis. Models are available from 2.2 to 220 lb ranges providing a large offering for various applications such as, incoming quality inspect ion, finished goods testing, R&D or almost any portable or force stand testing requirement.

  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit’s selection provides flexible user comfort
  • Field Calibration capability eliminates need to send to lab
  • Calibration Certificate included along with popular adapter attachments
  • Free Data logging/graphing software available for free download on website

EDMS Data Acquisition Software (free download on website) Allows full testing of FG Series Force Gauges with live analysis of the test results. Users can set a delay or a time period for the test data to record as well as begin or end if a load threshold is reached. The load can be inverted so the graph shows the resultant force in the direction desired. Average and peak readings are automatically calculated, but the user can zoom in on a section of a graph and recalculate the new average and peak over the selected portion of the test. Besides acquiring live data, the EDMS program can also upload previously stored readings from the gauge. Additionally, the software provides the ability to easily save the data set to a spreadsheet file, plus save the resultant graph as a photo for later review.

Model FG-3003 FG-3005 FG-3006 FG-3008 FG-3009
Shimpo FG-3003 Push Pull
$292.50
buy now
Shimpo FG-3005 Push Pull
$292.50
buy now
Shimpo FG-3006 Push Pull
$292.50
buy now
Shimpo FG-3008 Push Pull
$337.50
buy now
Shimpo FG-3009 Compact, D
$337.50
buy now
Capacity X Readability 2.2 x 0.001 lb
1 x 0.001 kg
10 x 0.01 N
35 x 0.01 oz
1000 x 1 g
11 x 0.01 lb
5 x 0.001 kg
50 x 0.01 N
180 x 0.1 oz
5000 x 1 g
22 x 0.01 lb
10 x 0.01 kg
100 x 0.1 N
350 x 0.1 oz
110 x 0.1 lb
50 x 0.01 kg
500 x 0.1 N
1800 x 1 oz
220.0 x 0.1 lb
100 x 0.1 kg
1000 x 1 N
3500 x 1 oz
Accuracy ± 0.3% F.S.
Selectable Units N, gf, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity 150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement Method Peak, Track, Preset
Data Sampling Rate 1000 Hz
Display 160*128 dot matrix LCD with Backlight
Display Update Rate 10 times/second
Memory 500 data
Set Point Programmable high and low limits in Preset Mode
Battery Indicator Display flashes battery icon when battery is low
Power 3.6 V dc 800 mAH Ni-MH rechargeable batteries
Battery Life Approximately 16 hours continuous use per full charge
Charger / Adaptor Universal USB/BM charger, Input: 110 ~ 240 V ac
Temperature Effects <0.054% per °F (0.03% FS per °C)
Outputs USB, RS-232; High & Low Limit NPN’s
Operating Temperature 14 to 104°F (-10 to 40°C)
Housing Aluminum
Storage Temperature -4 to 122°F (-20 to 50°C)
Humidity Limit 5 to 95%

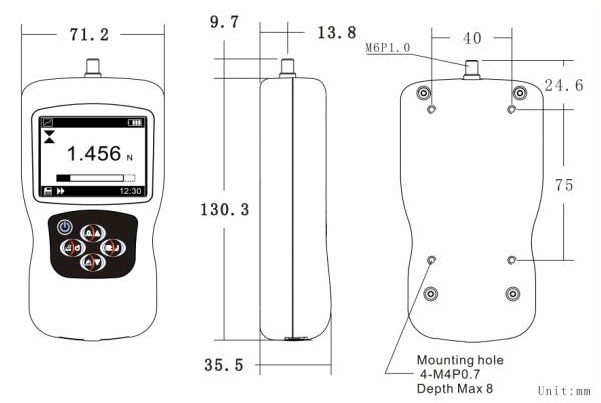

Dimensions 5.5 x 2.8 x 1.4” (140 x 71 x 35.5 mm)
Product Weight 0.9 lb (0.4 kg)
Package Weight 2.25 lb (1 kg)
Certification CE
Warranty 1 year
Included Accessories AC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Grips and Adapters
Chisel Adapter
Chisel Adapter
Cone Head Adapter
Cone Head Adapter
Flat Head Adapter
Flat Head Adapter
Notched Head Adapter
Notched Head Adapter
Extension Rod Adapters
Extension Rod Adapters
Hook Adapter
Hook Adapter
Standard Adapter Sets
Standard Adapter Sets
Compression Plates
Compression Plates
Film Grips
Film Grips
Fine Point Grips
Fine Point Grips
Flat Tensile Grip
Flat Tensile Grip
Heavy-duty Tensile Grip
Heavy-duty Tensile Grip
Jacobs Chuck Grip
Jacobs Chuck Grip
Pin Head Grip
Pin Head Grip
Puncture Test Attachment
Puncture Test Attachment
Spool Grips
Spool Grip
Tape Grip
Tape Grip
Wedge Grip
Wedge Grips
Clevis Grip
Clevis Grip
Fabric Grip
Fabric Grip
Cord/Twine Grip
Cord Twine Grip
Adhesive Test Plates
Adhesive Test Plates
