Specifications Chart

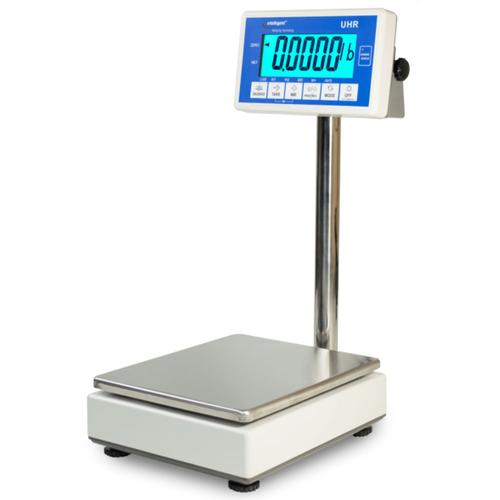

UWE UHR High Precision Laboratory Bench Scale Select Select UHR-6EL - 6 kg x 0.2 g $533.00 UHR-15EL - 15 kg x 0.5 g $533.00 UHR-30EL - 30 kg x 1 g $557.70 UHR-60EL - 60 kg x 2 g $557.70 UHR-60FL - 60 kg x 2 g $658.35 UHR-150FL - 150 kg x 5 g $681.66 UHR-300FL - 300 kgx 10 g $754.11

With platforms manufactured from strong and light cast aluminum, these scales are designed for applications where precise results are required in a light-weight high capacity bench scale for heavy laboratory weighing or critical industrial applications.

• Made in Democratic Taiwan in an ISO 9001 facility
• Capacities from 13.2 lb – 660 lb with Precision of 0.0005 – 0.02 lb
• Ultra-High Resolution and Readability of 30,000 Divisions
• Large 2” High Intelligent Backlight™ Indicator Display
• Strong, Corrosion Resistant Cast Aluminum Base
• Single-Weigh with Print Button or Accumulation
• Rechargeable Battery with Built-in AC Line Cord
• RS-232 Interface including Remote Commands
• Animal Weighing Filtering

Model	UHR-6EL	UHR-15EL	UHR-30EL	UHR-60EL	UHR-60FL	UHR-150FL	UHR-300FL
Price	$533.00	$533.00	$557.70	$557.70	$658.35	$681.66	$754.11
Capacity x Readability	13.2 x 0.0005 lb 6 kg x 0.2 g	33 X 0.001 lb 15 kg x 0.5 g	66 x 0.002 lb 30 kg x 1 g	132 x 0.005 lb 60 kg x 2 g	132 x 0.005 lb 60 kg x 2 g	330 x 0.01 lb 150 kg x 5 g	660 x 0.02 lb 300 x 10 g
Divisions	30,000
Weighing Units	lb / kg, lb / g, kg, g
Stabilization Time (seconds)	< 2 seconds
Tare Range	To capacity by subtraction
Power Source	Built-in rechargeable battery and 5 foot long 120 VAC 3-pin line cord with ground
Connectivity	RS-232 interface, bi-directional, remote commands, configurable, for printer or computer interface
Display	Large 2” High Intelligent Backlight™ Display (Auto-off between weigh)
Operating Environment	32º 104ºF non condensing R.H. . 85%
Pan Size (W x D)	11 x 13 x 4.3" 280 x 330 x 110 mm		13 x 17.7 x 3.7" 330 x 450 x 95 mm		16.5 x 20.5 x 4.7" 420 x 520 x 120 mm
Platform Construction	Stainless steel weigh pan, cast aluminum base, stainless steel round pillar mountable on 11" or 13" side		Stainless steel platform cover, cast aluminum base, stainless steel round pillar		Stainless steel platform cover, cast aluminum base, steel rectangular pillar
Overall Dimensions	11 x 15.5 x 28.3" 279 x 394 x 720 mm		13 x 20.7 x 28.3" 330 x 525 x 720 mm		16.5 x 23.5 x 33.9" 420 x 596 x 860 mm
Net Weight	22 lb		30 lb		42 lb
Shipping Weight	30 lb		33 lb		42 lb & 7 lb (2 boxes)
Options	Weatherproof indicator cover (15-BSS-WPIC-000), Printer (thermal or impact, RS-232)		Weatherproof indicator cover (15-BSS-WPIC-000), Printer (thermal or impact , RS-232)		Weatherproof indicator cover (15-BSS-WPIC-000), Printer (thermal or impact , RS-232), Wheel kit (3” zinc plated steel, 300 lb)
