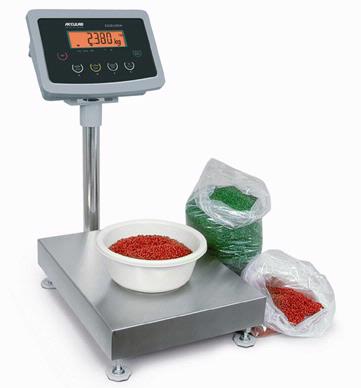

Acculab Exceleron Series Multi-Functional Industry Scales
Acculab Exceleron electronic industrial bench scales are a terrific value - weighs in kilograms, pounds, ounces with parts counting and large LCD remote display.

The Acculab Exceleron floor scales combine high quality construction with all the applications that you need to get the job done. This unit features an IP65 rated washdown base with a large, simple to use, display with amber colored backlighting for ease of reading. These units come with unique capacity/readability combinations that are unmatched by other bench scales. The EXCELERON is ideal for incoming/outgoing goods inspection, inventory management, QC, formulation, general weighing, packaging and more.

Features
  • Heavy Duty design with maximum overload protection
  • Internal frame construction in mild steel/powder coated
  • Spirit level indicator
  • Large adjustable rubber feet for excellent stability
  • ABS Industrial Indicator (adjustable/ wall mounting option)
  • Stainless Steel tubular column (included)
  • Large 1 inch (25 mm) LCD segments with amber back-lit display for excellent visibility in all ambient conditions
  • Very fast and reliable results saves time and money
  • Four (4) digital filter settings for optimal performance
  • Stainless Steel Pan
  • Net/Tare/Gross Functionality
  • Large function keys with "positiveclick-action" response
  • Automatic counting optimization ensures accurate results
  • Optional bi-directional RS-232 interface kit
  • Battery operation
  • External Calibration & Linearization
  • IP65 rated washdown base
  • Applications: Counting, Checkweighing (HI, LO), Unit Toggling (Kg, Lbs, Oz, G)
  • 2 year warranty
Acculab Exceleron Series Multi-Functional Industry Scales

Model

Shipping Weight: 18 lb

Model ECL300GFP-LO-US
Price $849.00
buy now
Weighing Capacity 300 kg/660 lbs
Readability 20.0 g/0.05 lbs
Maximum Displayed Resolution 1:15000
Tare Range (subtractive) 300kg/660lbs
Reapeatabilty (std. deviation) +/- 40.0g/0.1 lbs
Linearity +/- 40.0g/0.1 lbs
Corner Load +/- 4 digits at half capacity from center
Scale/Display Protection Base IP65 / Display IP44
External Calibration Weight 100 kg
Base Frame Construction Mild Steel / Painted
Leveling Component External level bubble with adjustable leveling feet and locking nuts
Weighing Units Grams, Kilograms, Pounds, Ounces, Troy Ounces
Functions Weighing, Unit toggling, Counting, Check Weighing
Display Type LCD, 6 Digits, Character Height: 1 inch (25mm), 7 Segment with backlight (Amber)
Audio Tone No
Safe Overload Capacity 150% of rated capacity
Overload Indication Displays "OL"
Underload Indication Displays "UL"
Stabilization Time (typical) within 3 seconds
Adaptation to Ambient Conditions By selection of 1 of 4 optimized filter levels
Display Update (depends on the filter setting selected) Display update 0.1 - 0.4 (depends on filter level selected)
Pan Dimensions (inches) 25.6 in. X 19.7 in.
Pan Material Stainless Steel
Base Dimensions
(W x D x H)
25.6" x 19.7" x 6.2"
Column Height (inches) 29.5 inches (Stainless Steel tube)
Interface RS-232 Optional
AC Power Requirements 100-240V AC (50/60 Hz) internal switching power supply
DC Power Operation Optional using 6 "D" size 1.5V dry battery
Power Consumption approx. 4VA
Optional Accessories RS232, Data Printer, Data Cable
Operating Humidity Less than 85% RH no condensation
Operating Temperature range (-10°... +40° C) , (14°...104° F)
84 lbs/ 38 kg
Shipping Weight 90lbs / 41kg
Shipping Dimensions 34.25" x 22.8" x 18.5" inches (869.95 x 579.12 x 469.9 mm)
Warranty 2 Year Manufacture Warranty
