CAS RW-X Series Portable Axle Weighers See specs below Popular Configurations Packages CAS RW-X1L Portable Axle Weighers Package 1 Contains: 2 RW-X1L scales 4 RW-X1RA Ramps 1 RW-2601P Indicator $8,598.00 CAS RW-X2L Portable Axle Weighers Package 2 Contains: 2 RW-X2L scales 4 RW-X2RA Ramps 1 RW-2601P Indicator $12,030.00

CAS RW-X Series Portable Axle Weighers Model RW-X1S - $3758.40 RW-X1L - $5246.40 RW-X2S - $7518.40 RW-X2L - $8318.40 RW-X3S - $7774.40 RW-X3L - $8638.40 CAS RW-2601P Indicator, add $1356 CAS CI-2001AS Stainless Steel Indicator with Bright LED Display, Legal for Trade, add $276.50 CAS CI-2001BS Stainless Steel Indicator with LCD Display and Backlight, Legal for Trade , add $276.50 CAS RW-X1RA Asphalt Ramp, 32 x 36 x 4, add $499 CAS RW-X1HP Hard Pack Ramp, 32 x 36 x 4, add $884 CAS RW-X2RA Asphalt Ramp, 32 x 36 x 6, add $589 CAS RW-X2HP Hard Pack Ramp, 32 x 36 x 6, add $949 CAS RW-X3RA Asphalt Ramp, 32 x 36 x 6, add $619 CAS RW-X3HP Hard Pack Ramp, 32 x 36 x 6, add $982 CAS RW-PF Pit Frame, add $669

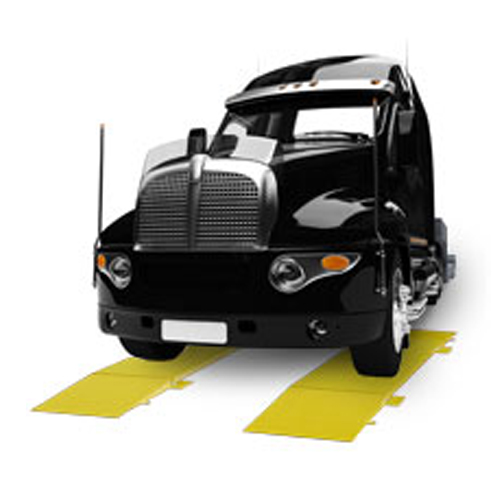

The RW-X Series Portable Axle Weigher is an economical alternative to full size truck scales. Use on paved or gravel type surfaces. Ideal for weighing tractor trailers, dump trucks, tri/quad axle trucks, concentrated loads, and more.

• Top quality - CAS BSA 10K Load Cells for 60K Sets
• Ramps sold separately

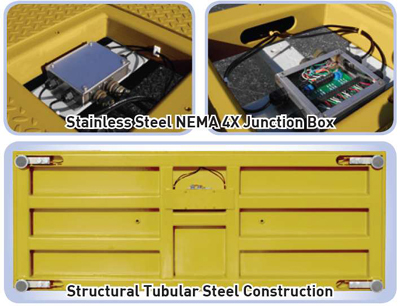

• Stainless Steel NEMA 4X Junction box
• 1/4” Diamond Tread Deck Plate
• Up to 150% (RW-X1) & 200% (RW-X2/X3) overload protection
• Top Access Leveling & Top Access Junction Box
• RW-X1 - 3” Tubular Steel Construction Standard Leveling Feet
• RW-X2/X3 - 4” Tubular Steel Construction Captive Ball Leveling Feet

Specifications

Model	Image	Price	Size	Capacity	Indicator	Asphalt Ramp (Each)	Hard Pack Ramp (Each)
RW-X1S		$3758.40	32 x 32 x 4 in	60K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X1RA (32 x 36 x 4 in) add $499.00	RW-X1HP (32 x 36 x 4 in) add $884.00
RW-X1L		$5246.40	32 x 84 x 4 in	60K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X1RA (32 x 36 x 4 in) add $499.00	RW-X1HP (32 x 36 x 4 in) add $884.00
RW-X2S		$7518.40	32 x 84 x 6 in	60K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X2RA (32 x 36 x 6 in) add $589.00	RW-X2HP (32 x 36 x 6 in) add $949.00
RW-X2L		$8318.40	32 x 120 x 6 in	60K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X2RA (32 x 36 x 6 in) add $589.00	RW-X2HP (32 x 36 x 6 in) add $949.00
RW-X3S		$7774.40	32 x 84 x 6 in	70K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X3RA (32 x 36 x 6 in) add $619.00	RW-X3HP (32 x 36 x 6 in) add $982.00
RW-X3L		$8638.40	32 x 120 x 6 in	70K lb per set	RW-2601P $1356.00 CI-2001AS $276.50 CI-2001BS $276.50	RW-X3RA (32 x 36 x 6 in) add $619.00	RW-X3HP (32 x 36 x 6 in) add $982.00
