CAS Wireless Wheel Weighting Platform Scales
CAS Scales >> Floor
Scales
|
CAS Wireless Wheel Weighting
Platform Scales
|
|

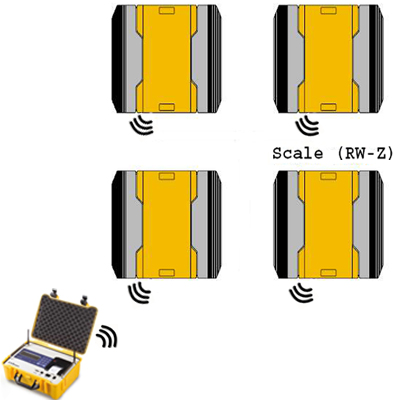

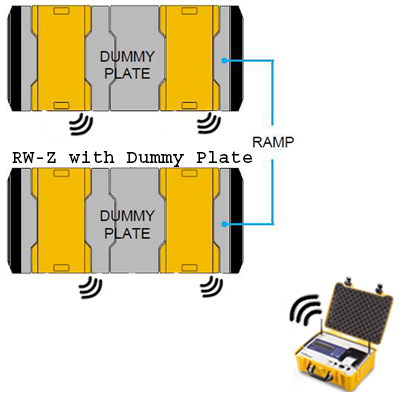

CAS RW-Z series is designed for mobile weight inspection for cars, trucks, planes, etc. Heavy duty cast aluminum construction along with a variety of features like wireless communication, make the RW-Z series suitable in many harsh environments. Used for finding over-loaded vehicles.
- Compact size & easy to carry
- Convenient measurement via Zigbee (wireless communication)
- Operating Power: AA size Dry batteries or 1.2V rechargeable battery
| Model |
RW-10Z |
RW-15Z |
| Max. Capacity |
20,000 |
30,000 |
| Resolution |
1/500 |
| Battery operating time |
Approx. 12hrs |
| Product size (mm) |
900(W) x 500(D) x 40(H) |
| Product weight |
73 |
|
CAS RW-2000Z Multi Platform Wireless Indicator
CAS RW-2000Z is designed for mobile weight inspection for cars, trucks, planes, etc. Heavy duty cast aluminum construction along with a variety of features like wireless communication, make the RW-Z series suitable in many harsh environments. Used for finding over-loaded vehicles.
- Built in High-capacity battery & printer
- Connect up to 12 pads simultaneously
- Possible to recharge battery with AC as well as vehicle’s power
| Model |
RW-2000Z Series |
| Display |
LCD (6 digits) |
| Power |
AC 220V, 50/60Hz |
| Battery Operating Time |
Approx. 48hrs (24hr charging) |
| A./D Speed |
10 times/second |
| Power Source |
3.3V |
| Operating Time |
Approx. 12hrs (continuous communication) |
| Battery |
4.8 (1.2V 4EA), 1.3A (NI-MH) |
| Operating temp. |
-10°C ~ 40°C |
| Communication |
Bluetooth type |
| Channel |
78 channels (hopping type) |
| Communication Speed |
9600bps |
| Communication Range |
Open field: 100m,
With obstacles: approx. 50m |
| Product weight (kg) |
10.6 |
