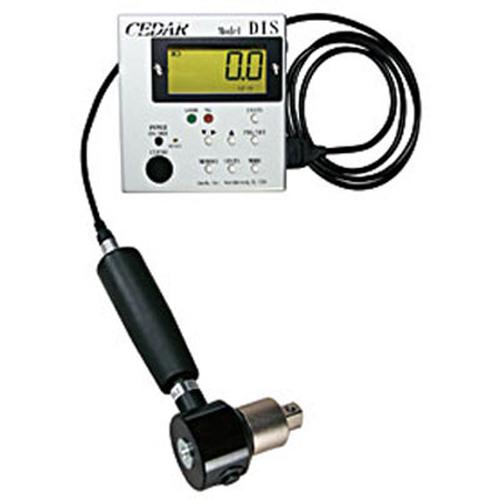

Cedar Imada DIS-TW20, Digital Torque Tester/ Screwdriver is ergonomically designed, extremely lightweight yet good for use as a production tool. It tightens or loosens screws up to 174 lbf-in. and can be used in difficult to reach places. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. more ... |
 |
Digital Torque Tester is ergonomically designed, extremely lightweight yet good for use as a production tool. It tightens or loosens bolts up to 174 lbf-in. and can be used in difficult to reach places. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

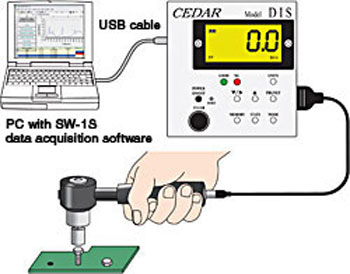

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.
DIS-TW20 substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, wrench with cable, stepless one-way clutch, AC adapter/charger and carrying case.
Imada Cedar DIS-TW20 Torque Screwdriver Digital Lightweight Tester Specs:
| DIS-TW20 Ranges Accuracy: ±0.5% F.S. ±1 LSD |
| Capacity |
| lbf-in |
1.0-174.0 |
| kgf-cm |
1.0-200.0 |
| N-cm |
10-2000 |
| N-m |
0.10-20.00 |
Imada DIS-TW20 Torque Screwdriver Digital Lightweight Tester:
- Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
- Peak, Real Time, Peak Down and Continuous Output measuring modes (selectable)
- Selectable units lbf-in, Kgf-cm, N-cm and N-m
- USB data output (peak data only)
- Statistics: number of data, Max, Min, Avg
- 800 peak data memory for recall or for SPC download
- Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
- Both clockwise and counterclockwise operation
- Ergonomic, light weight, rugged metal construction
- Zero reset button on the driver for easy operation
- Runs on internal NiCad batteries (8 hour use)
- DIS-TW20 is sold as a kit including carrying case, stepless one-way clutch and AC adapter/charger
|
