Imada HV-300 & HV-500 Manual Wheel Operated Test Stand
Note: "-S" Versions come with a distance meter
currently in stock
Shipping Weight: 30
lbs. (estimate shipping
cost)
Other Imada
Test Stands
Other Force
Testing Products
This
Month Only! FREE UPS
Ground Shipping on ALL Imada
test stands

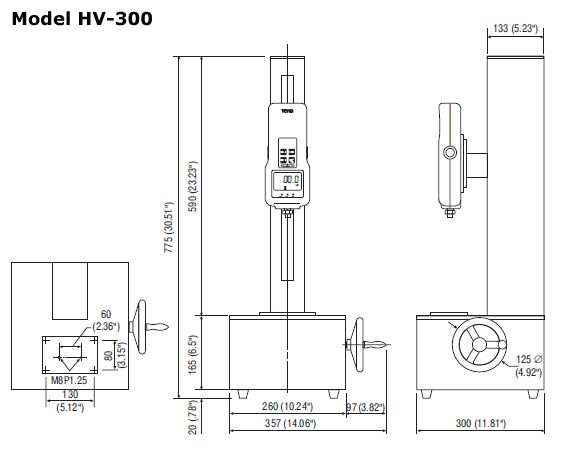

HV-300 (capacity 300 lbs)

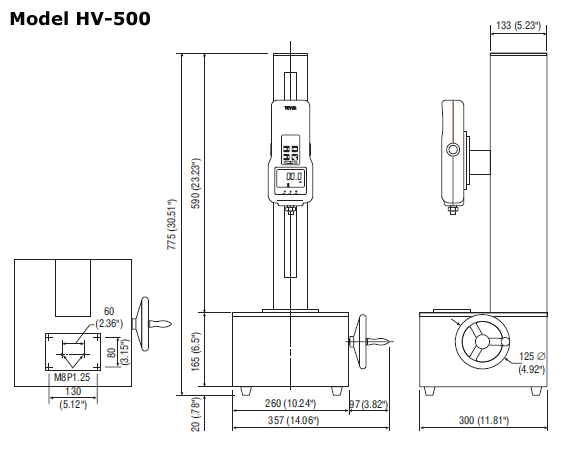

HV-500 (capacity 500 lbs)
- Hand wheel design provides a high degree of precise
control
- One stand for both compression (push) and tension
(pull) tests
- Gauge remains in place when hand wheel is released
- Maximum clearance 15"
|
|
Features
Models HV-300 & HV-5500 have greater clearance to accommodate
oversize materials and a long stroke to test materials that
require a greater range of movement. HV-300/500 are precise
push/pull test stands that are ideal for force applications
requiring relatively consistent speed and maximum gauge control.
The force gauge remains in position when the wheel is released
which allows the user to easily change samples between tests.
The hand wheel operation will provide repeatable test results
from sample to sample. The HV-300/500 will accommodate any
of the standard range Imada force gauges.
Optional Data Buttons and Data
Software
Imada DB-Series data input buttons work with Imada SW
software to automate data collection from Imada force or torque
gauges. Enter peak measurements into the spreadsheet and "zero" the
gauge with a touch of the button. Minimize computer time and
mouse useage
Click here for more info...
|
