With its compact design, plus easy portability, the Intercomp Model CW250TM Scale is ideal for weighing 55-gallon drums, chlorine cylinders, propane bottles, freon tanks, hazardous medical wastes and other liquid or gaseous containers. But those are just a few uses. Think of the many other items in your plant that you can weigh with it.

It’s available in fourteen high performance models with capacities ranging from 150 to 2,000 lb/75 to 1,000 kg. There are two sizes of weigh platforms: 15” x 15” x 4” / 381 x 381 x 100 mm, and 24” x 24” x 4” / 610 x 610 x 100 mm. This rugged, all aluminum, self-contained unit provides accuracy of ±0.1% (NTEP Class III) of applied load.

Fully battery operated, this Intercomp scale requires only infrequent recharging from any 12, 120 or 220 volt power source (charger adapter and cable provided). To record weights, the scale will interface with an optional printer or display (such as our P-DP printer or SA2000 display).

• Lightweight, portable and rugged

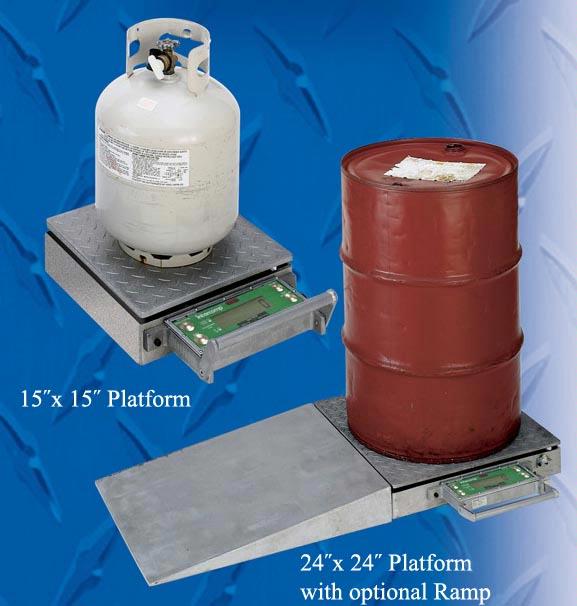

• Platform sizes:
  15 x 15 or 24 x 24 inches/ 381 x 381 or 610 x 610 mm
• Capacities from 150 - 2,000 lbs/ 75 - 1,000 kg
• Stainless steel switches
• Self contained battery operated Indicator standard or optional remote
• Handy ramps and transport wheels
• RS232 or RS485 output
• General purpose applications (also weighs baggage and passengers!)
• Giant 1 inch/25 mm LCD Display
• Efficient design – 25 hours of continuous operation
• Power down weight recall
• Infrared remote control

CW250 Platform Scales with Attached Monitor
Model	Description	Capacity	Graduation	Weight
100161	15"x15"x4" with attached monitor	150 x 0.05 lb	75 x 0.02 kg	39 lb
100167	15"x15"x4" with attached monitor	300 x .1 lb	150 x 0.05 kg	39 lb
100168	15"x15"x4" with attached monitor	500 x .5	250 x 0.2 kg	39 lb
100169	15"x15"x4" with attached monitor	500 x .2 lb	250 x 0.1 kg	39 lb
100170	15"x15"x4" with attached monitor	1000 x .5 lb	500 x 0.2 kg	39 lb
100171	15"x15"x4" with attached monitor	1500 x .5 kg	750 x 0.2 kg	39 lb
100172	15"x15"x4" with attached monitor	2000 x 1 lb	1000 x 0.5 kg	39 lb
101058	15"x15"x4" with attached monitor	3000 x 1 lb	1500 x 0.5 kg	45 lb
100162	24"x24"x4" with attached monitor	150 x .05 lb	75 x 0.02 kg	87 lb
100173	24"x24"x4" with attached monitor	300 x 1 lb	150 x 0.05 kg	87 lb
100174	24"x24"x4" with attached monitor	500 x .5 lb	250 x 0.2 kg	87 lb
100175	24"x24"x4" with attached monitor	500 x .2 lb	250 x 0.1 kg	87 lb
100176	24"x24"x4" with attached monitor	1000 x .5 lb	500 x 0.2 kg	87 lb
100177	24"x24"x4" with attached monitor	1500 x .5 lb	750 x 0.2 kg	87 lb
100178	24"x24"x4" with attached monitor	2000 x 1 lb	1000 x .5 kg	87 lb
