| PT300 DW Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for
uneven surfaces and withstands most weather conditions.
The PT300 DW is designed to maximize legal payloads with concerns for violations and reduction of maintenance due
to overload stress on equipment.
PT300 DW Scales are now standard with Fully Integrated RFX™ Wireless Weighing Technology and encryption ensures
secure wireless communication. more ... |
Features
PT300 DW (Double Wide) Wheel Load Scales
Fully Integrated RFX™ Wireless Weighing Technology!
The PT300 DW scales are designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment.
The PT300 DW is a sturdy, all aluminum, fully electronic, self-contained Double Wide wheel load scale that is capable of weighing loads up to 40,000lbs (20,000kg) with an accuracy of +/-1% and is available in double-wide configutations for wider tire configurations.
The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard AA Batteries last up to 300 Hours in the Scales.
The display can be lit for night use and it is possible to sequentially couple and number PT300 DW scales in the series for the purpose of obtaining a total vehicle weight through the total button as well as link the scales to a computer, indicator, or Intercomps PT20™ Universal CPU.
Fully Electronic Design Uses Patented Shear Beam Load Cells
Push Button Controls Include On/Off, Local/Total, Zero & Print/Accum
- Accuracy of ±1% of Reading
- 5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
- Large, Easy-to-Read, LCD Display
- Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
- View PDF
Fully Integrated RFX Wireless Weighing Technology
- Accuracy of ±1% of Reading
- Available in 2, 4 or 6 Scale Configurations
- 10,000 lb (5,000 kg) to 120,000 lb (60,000 kg) System Capacities
- Handheld RFX™ Wireless Weighing Indicator Fully Controls Scale Functions of up to 6 Scales Simultaneously
- Large, Easy-to-Read, LCD Displays on Scales and Indicator
- Standard AA Rechargeable Batteries Last up to 300 Hours in Scales & 40 Hours in Indicator
Systems Include:
- RFX Wireless Scales
- Handheld RFX™ Wireless Weighing Indicator with Rechargeable Batteries, Battery Charger & Case
- Totalizing Cable
- Scale Charger
- Storage Case

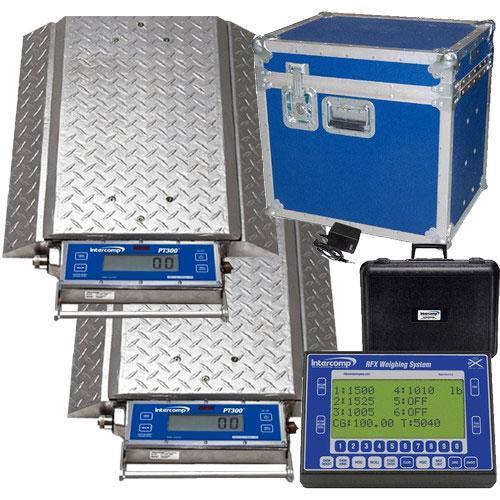

| PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Two Scales |
| Models |
100105-RFX |
100102-RFX |
100103-RFX |
100104-RFX |
| Capacity X Graduation |
2-5k-10,000 x 5lb |
2-20k-40,000 x 20lb |
2-20k-40,000 x 10lb |
2-10k-20,000 x 5lb |
| 5,000 x 2kg |
10,000 x 10kg |
20,000 x 5kg |
10,000 x 2kg |
| Weight |
170 lb |

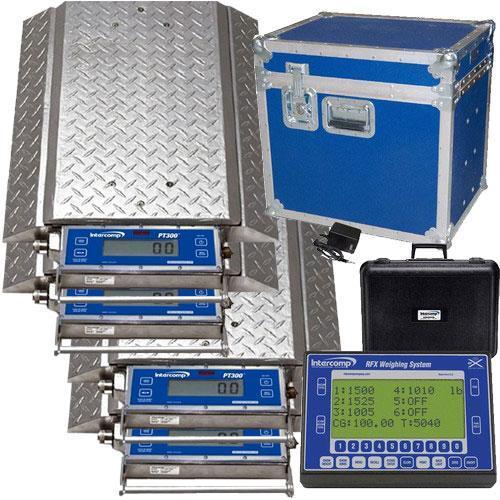

| PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Four Scales |
| Models |
100111-RFX |
100108-RFX |
100109-RFX |
100110-RFX |
| Capacity X Graduation |
4-5k-20,000 x 5lb |
4-20k-80,000 x 20lb |
4-20k-80,000 x 10lb |
4-10k-40,000 x 5lb |
| 10,000 x 2kg |
40,000 x 10kg |
40,000 x 5kg |
20,000 x 2kg |
| Weight |
310 lb |

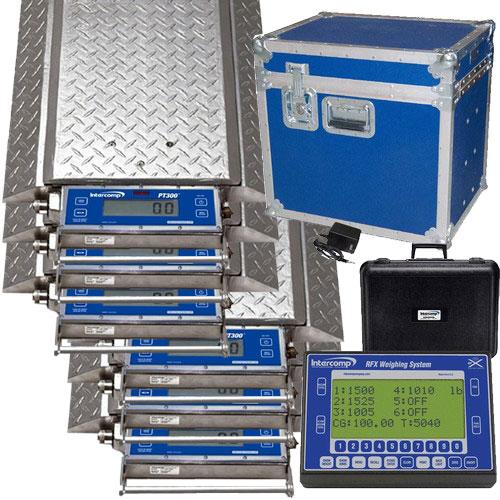

| PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Six Scales |
| Models |
100117-RFX |
100114-RFX |
100115-RFX |
100116-RFX |
| Capacity X Graduation |
6-5k-30,000 x 5lb |
6-20k-120,000 x 20lb |
6-20k-120,000 x 10lb |
6-10k-60,000 x 5lb |
| 15,000 x 2kg |
60,000 x 10kg |
60,000 x 5kg |
30,000 x 2kg |
| Weight |
460 lb |
| Scale Size |
3½ x 26½ x 20½ (76 x 660 x 508mm) |
| Platform Size |
22½ x 14½ (559 x 356mm) |
)
)
)
)
