| Legal for Trade full function scales with RS232 bi-directional interface, Net/Gross/Tare function, Auto-off timer. The platform features leveling feet, leveling bubble, rugged steel construction, IP65 load cell, AC adapter more ... |
Features

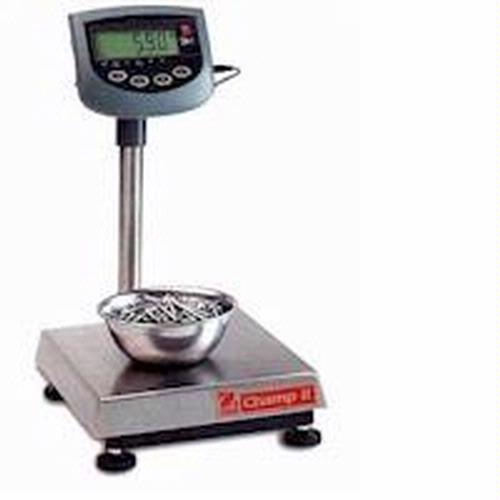

Champ II Bench Scales are Legal for Trade with RS232 bi-directional interface, Net/Gross/Tare function, and Auto-off timer. With rugged steel construction, IP65 load cell, AC adapter. Capacity x readability: 15 x 0.002 lb. 12 x 14 platform.
All Ohaus Champ II Bench Scales are protected by a 2-year warranty on labor and parts.
| Model Number |
CH15R11 |
CH30R11 |
CH60R11 |
CH60L11 |
CH100R11 |
CH150R11 |
CH300R11 |
| Capacity x Readability (lb) |
30 x 0.005 |
60 x 0.01 |
120 x 0.02 |
120 x 0.02 |
200 x 0.05 |
300 x 0.05 |
600 x 0.1 |
| Capacity x Readability (kg) |
15 x 0.002 |
30 x 0.005 |
60 x 0.01 |
60 x 0.01 |
100 x 0.02 |
150 x 0.02 |
300 x 0.05 |
| Non LFT Resolution |
1:7500 |
1:6000 |
1:6000 |
1:6000 |
1:5000 |
1:7500 |
1:6000 |
| NTEP Resolution |
1:3000> >
| 1:3000 |
1:3000 |
1:3000 |
1:2500 |
1:3000 |
1:3000 |
| Base Size (in/cm) |
12 x 14 x 3.7 / 30.5 x 35.5 x 9.5 |
16 x 20 x 4.1 / 40 x 50 x 10.5 |
17 x 22 x 5 / 42 x 55 x 12.5 |
| Platform construction |
Stainless Steel 304 |
| Frame structure |
Black polyurethane painted steel |
| Column construction |
Stainless Steel |
| Column height (in/cm) |
14/35 |
27/68 |
| Scale weight (lb/kg) |
24/11 |
49/22 |
55/25 |
| Shipping weight (lb/kg) |
30/14 |
57/26 |
70/31 |
| Display (in/cm) |
LCD 1 (2.54 cm) |
| Keyboard |
4-function membrane switches |
| Power |
9 VDC / 500 mA AC adapter or six alkaline C-type batteries |
| Typical battery life |
250 hours in battery save mode, 100 hours continuous use |
| Weighing units |
g, kg, lb |
kg, lb |
| Modes |
Weighing and parts counting |
| Zeroing range |
2%, 18% or 100% capacity |
| Span Calibration |
10% to 100% |
| Operating temperature |
-10 C to 40 C |
| Storage temperature |
-20 C to 60 C |
| Model Number |
CH15R11 |
CH30R11 |
CH60R11 |
CH60L11 |
CH100R11 |
CH150R11 |
CH300R11 |
**Model CH100R11 is factory calibrated for 100kg Max. capacity is 150 kg. User selectable calibration is 150 kg x 0.002>
