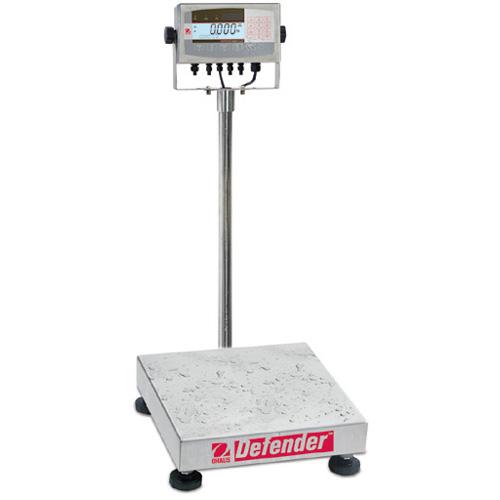

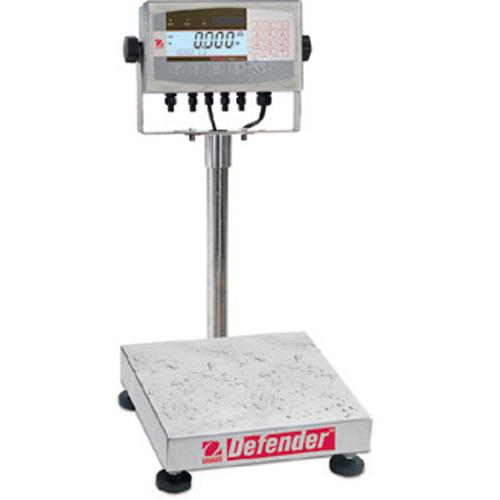

| The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW advanced indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. more ... |
| Scales > Industrial Scales > Bench Scales | ||||||
|
||||||
OverviewThe OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW advanced indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications.
|
||||||
The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations. The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining a stainless steel D71XW advanced indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications. Standard Features
Model Number |
D71X-W10-WR3 | D71X-W25-WR3 | D71X-W50-WL4 | D71X-W100-WL4 | D71X-W250-WX4 |
|---|---|---|---|---|---|
Capacity x Readability |
25 lb x 0.002 lb | 50 lb x 0.005 lb | 100 lb x 0.01 lb | 250 lb x 0.02 lb | 500 lb x 0.05 lb |
| 400 oz x 0.05 oz | 800 oz x 0.1 oz | 1600 oz x 0.2 oz | 4000 oz x .5 oz | 8000 oz x 1 oz | |
| 25lb : 0.05oz | 50 lb x 0.1 oz | 100 lb : 0.2 oz | 250 lb : .5 oz | 500 lb : 1 oz | |
| 10 kg x 0.001 kg | 25 kg x 0.002 kg | 50 kg x 0.005 kg | 100 kg x 0.01 kg | 250 kg x 0.02 kg | |
| 10000 g x 1 g | 25000 g x 2 g | 50000 g x 5 g | 100000 g x 10 g | 250000 g x 20 g | |
Maximum Displayed Resolution |
1:12500 | 1:12500 | 1:10000 | 1:12500 | 1:12500 |

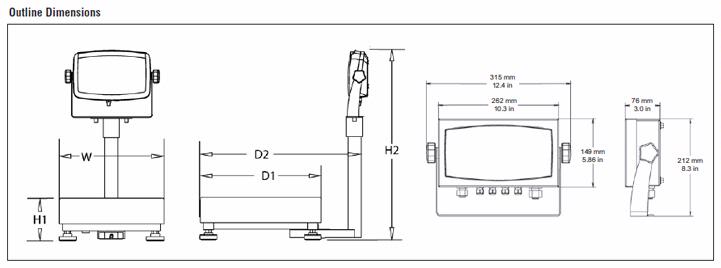

Scale Dimensions |
12 x 3.7 x 23.2 x 12 x 16.7 in 305 x 95 x 590 x 305 x 425 mm |
18 x 4.5 x 37 x 18 x 22.7 in 457 x 115 x 940 x 457 x 577 mm |
24 x 5.4 x 37 x 24 x 28.7 in 610 x 137 x 940 x 610 x 730 mm |
||
Shipping Dimensions |
19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm |
31.2 x 23.6 x 9.5 in 810 x 600 x 240 mm |
39.4 x 29.9 x 9.8 in 1000 x 760 x 250 mm |
||
| Net Weight | 35.5 lb / 16.1 kg | 69.6 lb / 31.6 kg | 86.8 lb / 39.4 kg | ||
| Shipping Weight | 40.8 lb / 18.5 kg | 74.5 lb / 33.8 kg | 100.9 lb / 45.8 kg | ||
| Indicator Model | T71XW | Column | 13.8 in / 350 mm stainless steel | 26.8 in / 680 mm stainless steel | |
| Construction | Stainless steel indicator, removable weighing platform, column, base construction and loadcell | ||||
| Safe Overload Capacity | 150% of maximum capacity | ||||
| Protection | NEMA 4X/IP66 for indicator, IP67 for loadcell | Weighing Units | lb, oz, lb:oz, kg, g, custom unit | ||
| Modes/Features | Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library | ||||
| Display | 6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight | ||||
| Keypad | Positive feedback membrane keys, 5 function keys and alpha-numeric keypad | ||||
| Stabilization Time | Within 2 seconds | ||||
| Auto-zero Tracking | Off, 0.5, 1 or 3 d | ||||
| Zeroing Range | 2% or 100% of capacity | ||||
| Calibration | Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point | ||||
| Power | 100-240 VAC / 50-60 Hz - Internal universal power supply, hardwire cord Opt. Int. rechargeable NiMH battery (10-hr. typical operation) |
||||
| Interface | RS232 and external tare input | ||||
| Operating Temperature Range | 14°F to 104°F / -10°C to 40°C | ||||
| $2,368.89 |
|
||||||||||||||||||||||||
