OverviewTake the 7000XL to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options include Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays. |

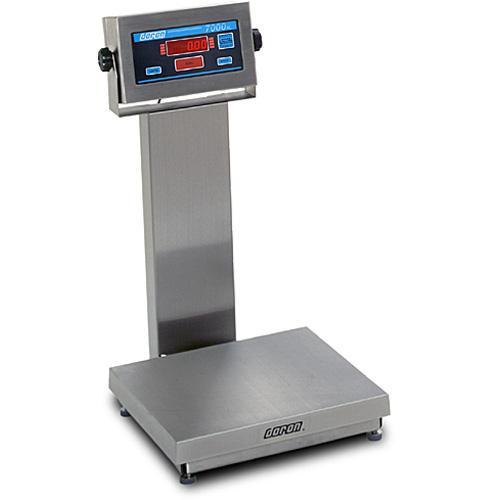

The Doran Excel Series 7000XL is the latest evolution of our time-proven 7000XL Series Scales. For years it’s been a workhorse in the toughest of working environments, now it can be put to work in a wider variety of tasks with the Excel Series Design. From a simple dough scale on a baker’s bench to a data collection instrument connected to a computer network, the 7000XL is adaptable to fit your specific needs. Washdown Safe 1000% Overload DXL Base Heavy Duty Touch Panel Powerful Excel Features & Options Easy to Operate
Superior washdown protection has been engineered into the Model 7000XL Bench Scale. The 7000XL indicator features an innovative gasket design that provides NEMA4X and IP69K protection - even in the harshest working environments.
Our unique “Quad-Spring©” design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran
Engineered to stand up in the harshest environment, the sealed, super tough “Guardian©” touch panel resists moisture and puncture damage. Simple controls - ZERO, UNITS, and PRINT - make it easy to use, quick to train employees and prevents operator error.
Take the 7000XL to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options including Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.
The basic controls are all here - Zero, Units, and Print, you cant get any simpler than that. The benefit to you is a scale that is easy to operate and train employees to use - reducing operator error.Communication Interfaces
Optional Setpoints
Advanced Features
Powerful New Excel Design
Model | APS 7050XL/15 |
APS 7100XL/15 |
APS8 8200XL/15 |
APS 7100XL/18S |
APS 7250XL/18S |
APS 7500XL/18S |
APS 7250XL/1824 |
APS 7500XL/1824 |
APS 7250XL/2424 |
APS 7500XL/2424 |
APS 71000XL/2424 |
||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Capacity x Readability | lb | 50 X 0.01 | 100 x 0.02 | 200 x 0.05 | 100 x 0.02 | 250 x 0.05 | 500 x 0.1 | 250 x 0.05 | 500 x 0.1 | 250 x 0.05 | 500 x 0.1 | 1000 x 0.2 | |||
kg | 22.7 x 5g | 45 x 10g | 91 x 20g | 45 x 10g | 113 x 20g | 227 x 50g | 113 x 20g | 227 x 50g | 113 x 20g | 227 x 50g | 454 x 100g | ||||
oz | 800 x 0.2 | 1600 x 0.5 | 3200 x 1 | 1600 x 0.5 | 4000 x 1 | 8000 x 2 | 4000 x 1 | 8000 x 2 | 4000 x 1 | 8000 x 2 | 16000 x 5 | ||||
Platter Size | 15" x 15" | 18" x 18" | 18" x 24" | 24" x 24" | |||||||||||
Legal for Trade |
Indicator: CC# 99-129A4 NTEP Class III 15" X 15" Base : CC# 97-097A1 NTEP Class III 18" X 18",18" X 24", 24" X 24" Base : CC# 05-062 NTEP Class III |
||||||||||||||
Indicator: CC# AM-5347 Canada Class III 15" X 15" Base: CC# AM-5241 Canada Class III |
|||||||||||||||
NTEP Resolution | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | 5000d | ||||
Computer Interface | Bi-directional RS-232 (standard) | ||||||||||||||
Washdown | NEMA4 x / IP69 rated | ||||||||||||||
Column | 20" Tall Atlas Column | ||||||||||||||
Display | 6 digit red LED 0.56" High | ||||||||||||||
Controls: | Zero, Units and Print | ||||||||||||||
Indicators | lb, kg, g, oz, NEG, ZERO and MOT | ||||||||||||||
Units | lb, kg, g, oz or lb:oz | ||||||||||||||
Power | 115 VAC, 50/60 Hz (230 VAC Optional); EMI/ESD protected | ||||||||||||||
Construction | 304 Stainless Steel | ||||||||||||||
Warranty | Two Year Parts & Labor |
|
