STANDARD FEATURES

The AL660 Alulite Series Aluminum Low Profile Series standard features include 1 part in 5,000 accuracy, structural tubular aluminum construction, aluminum diamond tread deck plate, 150% overload protection, 100% end loading capacity, low profile design allows easy incline ramping, 20 foot shielded indicator cable, shock load protection, four internally mounted shear beam load cells, is NTEP Certified-5,000 Division, class III/IIIL, is environmentally protected, and is IP 67 Water Resistant rated.

• Remote junction box

Remote mountable NEMA 4 junction box and 10 Sealtite conduit for wash down applications. (Standard on Model SS660 Series)

• Fork lift package

All of the standard 660 features but with added fork lift skids for those applications requiring convenient and rapid transporting of the scale. Only three inches high, this scale maintains its low profile design with built in rails that permit easy pick up and transportation by most commonly used fork lifts. Also featured are heavy steel bumpers mounted on all four corners to protect the load cells and leveling feet from fork lift blades.

• Pit installation kit

unction box permitting easy access for calibration and corner adjustments. Pit spacer brackets are also included to maintain accurate alignment of scale in pit applications. For an unbeatable combination, match this scale with our pit form and one of our many indicators and you’ve got all you need for all your weighing needs.

ACCESSORIES

• Easy incline ramps
• Bumper guards
• Pit forms
• Indicator/Printer stands
• Locator brackets

<

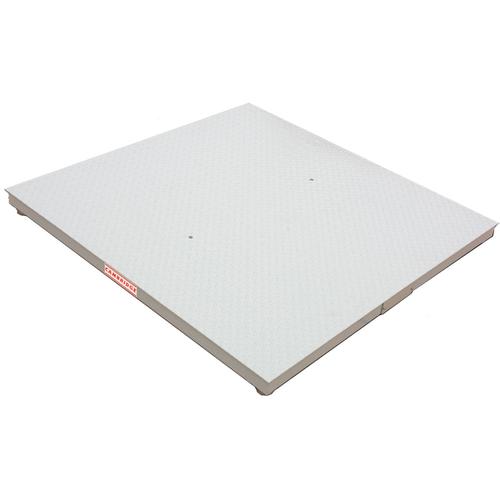

Cambridge Alulite Aluminum Low Profile Bases
Model	Size (Inch)	Capacity	Legal For Trade
AL66024241	24 x 24 x 3	1,000 lb	NO
AL66024242	24 x 24 x 3	2,500 lb	NO
AL66030301	30 x 30 x 3	1,000 lb	NO
AL66030302	30 x 30 x 3	2,500 lb	NO
AL66036361	36 x 36 x 3	1,000 lb	NO
AL66036362	36 x 36 x 3	2,500 lb	NO
AL66036365	36 x 36 x 3	5,000 lb	NO
AL66048481	48 x 48 x 3	1,000 lb	NO
AL66048482	48 x 48 x 3	2,500 lb	NO
AL66048485	48 x 48 x 3	5,000 lb	NO
AL66048605	48 x 60 x 3	5,000 lb	NO
AL66048725	48 x 72 x 3	5,000 lb	NO
AL66060605	60 x 60 x 3	5,000 lb	NO
