AND Weighing Apollo Precision Balances AND Weighing
The AND Weighing Apollo Scales have: Advanced Sensor Technology Smart-SHS is the latest advancement in our super hybrid design, construction and algorithms. Increased productivity via faster stabilization times (1 second in fast mode) Lower cost of ownership due to reduce number of parts and maintenance accessibility

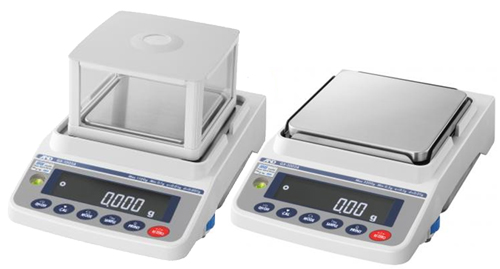

AND Weighing Apollo Scales

View Specifications Chart
0.0001 g, 0.001 g

View Specifications Chart
0.01 g, 0.1 g

PDF

Simply Created for Practical Purposes

All the innovative technologies of A&D Apollo are designed to provide functional solutions for real world problems that users face in laboratories or in factories. Now discover what they are, and what precision, protection, performance and productivity really mean to you!

Smart SHS


Smart super hybrid sensor (Smart SHS) realizing wide lineup from analytical to high-resolution, high-capacity precision models

Select a balance that best suits your applications and budgets from either the GX-A series of 16 models with internal calibration function (three 0.0001 g readability models, six 0.001 g readability models, five 0.01 g readability models and two 0.1 g readability models) or the GF-A series of 18 models without internal calibration function (three 0.0001 g readability models, seven 0.001 g readability models, six 0.01 g readability models and two 0.1 g readability models).

In addition, the GX-AE series, which consists of three 0.0001 g readability models with internal calibration function, has an ionizer embedded in its breeze break for quickly eliminating static from the sample.

Analytical GX-AE series

GX-AE series (d = 0.0001 g)

Built-in fanless ionizer Adopting A&D's original "Quick Ion" technology,�* it removes static at twice the speed of the conventional ionizer (approx. 0.3 seconds** when the target object is within a distance of 10 cm) without any disturbance �* Patent pending
** Subject to the ambient environment, shape of the target object and amount of static charge.

Large and detachable breeze break The breeze break provides sufficient room for various kinds of containers/fixtures and can be easily removed for cleaning as well as use in confined space.

Retractable doors The balance requires no extra space at the rear for accessing the weighing chamber, as the doors disappear into the back.

External IR switch The GX-AE series comes standard with a touchless switch to activate the ionizer for a set duration

Fast stabilization

A combination of a high-stiffness, Roberval-structure spring material and an electromagnetic force restoration mechanism simultaneously realizes fast stabilization and high resolution for efficient, precise weighing. Typical stabilization time is from 1.5 to 2 seconds with the 0.0001 g readability models and 1 second with the 0.001/0.01/0.1 g readability models.*2
*2 Excludes the 1,620 g × 0.001 g and 10,200 g × 0.01 g models, with a typical stabilization time of 1.5 seconds

Long-term durability and low cost of ownership

A&D's internal experiment verified that Smart SHS withstood a durability test of 10 million repeated loadings without issue. With proper usage and care it can maintain a long and functional life. In case damage is caused, only the defective parts, not the whole unit, need to be replaced, incurring a minimal cost.

Internal weight (for the GX-AE/GX-A series)

Automatic self calibration (ASC)
To ensure accuracy all the time, the balance can be set to calibrate itself automatically using its internal weight either (1) in response to change in ambient temperature to prevent error due to sensitivity drift, (2) at a set interval time, or (3) at predetermined (up to three) times of the day. Internal calibration can also be performed any time with one key press.

Internal weight value correction
In cases such as where the internal weight value varied over time, it can be corrected either by loading an external weight whose value the balance uses as a reference or by manually inputting a correction value

ECL

Electronically controlled load (ECL) that enables precision management without using an external weight
ECL is A&D's unique technology of generating a minute load (0.3 to 3% of the balance capacity) by purposely altering the equilibrium state of the electromagnetic force restoration sensor. *Equipped with this ECL, A&D Apollo can automatically assess its precision and provide a number of valuable indexes. The entire process takes only 1.5 minutes and can be readily included in a daily check SOP.
�* Patented

spec

Adjustable response characteristics Depending on the APA results above, you can trade weighing speed for higher display stability*5 or vice versa by selecting one of three preset response characteristics (FAST, MID or SLOW).
*5 This is not to improve repeatability

Features effective for specific applications

Use in production lines

The weight sensor of a high-precision balance will be damaged in a short period if it is continuously affected by loads with acceleration (impact shocks). This typically occurs in factories where materials are placed roughly by machines or thrown by operators onto balances. In addition, impact shocks can easily shift values and cause errors.

The difficulty is that even if you know the above, you may not know what degree of impact shock is safe or unsafe for the balance to take preventive measures as necessary.

ISD

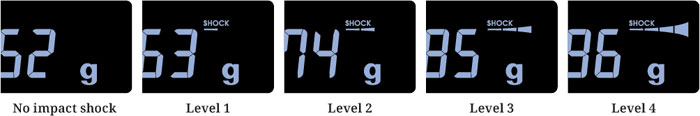

Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor Impact-Alert - A&D Apollo visualizes the magnitudes of impact shocks that its Smart SHS receives at four levels. It beeps once at Level 3 and twice at Level 4 (both of which should be avoided).
Shock-Log

While the power is on, up to 50 impacts of Level 3 and Level 4 will be stored in the balance with timestamp (and log-in user information when the password lock function is used). Data will then be overwritten in order from the weakest impact. This function is especially beneficial for quality managers as it enables them to check and show how the balance had been treated when returned for repair

A&D Weighing Apollo
Precision Balances
See Low Price in Cart

Model

AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only
AND Weighing GXA-04 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Factory Installed Only, add $210.00
AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only
AND Weighing GXA-03 2nd RS-232C interface Factory Installed Only, add $226.80
AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only
AND Weighing GXA-06 Analog Output (Cable: MiniDIN 4 pin Male to Loose end) Factory Installed Only, add $210.00
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only, add $434.60
AND Weighing GXA-10 Large Glass Breeze Break
AND Weighing GXA-10 Large Glass Breeze Break, add $315.00
AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher
AND Weighing GXA-12 Animal Weighing Pan for Apollo Series Models of 320g Capacity or Higher, add $144.50
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only, add $475.60
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator, add $1,324.35
AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only
AND Weighing GXA-23-RZERO External key input interface with the AX-SW137-REZERO foot switch - Factory Installed Only, add $197.40
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Factory Installed Only, add $197.40
AND Weighing GXA-24 USB host interface Factory Installed Only
AND Weighing GXA-24 USB host interface Factory Installed Only, add $106.25
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Factory Installed Only, add $766.70
AND Weighing GXA-26 External IR switch Factory Installed Only
AND Weighing GXA-26 External IR switch Factory Installed Only, add $168.00
Other Options
AND Weighing AD-8127 Compact Multi-Function Printer
AND Weighing AD-8127 Compact Multi-Function Printer, add $757.50
AND AD-1682 Rechargeable Battery Pack
AND AD-1682 Rechargeable Battery Pack, add $656.00
AND Weighing -AD-1687 - Weighing Environment Logger
AND Weighing -AD-1687 - Weighing Environment Logger, add $878.85
AND Weighing- AD-1688 -Weighing Data Logger
AND Weighing- AD-1688 -Weighing Data Logger, add $302.40
AND Weighing AD-1689 Calibration weight tweezers, pack of 5
AND Weighing AD-1689 Calibration weight tweezers, pack of 5, add $184.80
AND Weighing AD-1691 -Weighing Environment Analyzer
AND Weighing AD-1691 -Weighing Environment Analyzer, add $2,195.00
AND Weighing AD-8526-25:Serial / Ethernet Converter
AND Weighing AD-8526-25:Serial / Ethernet Converter, add $483.60
AND AD-8920A Universal Remote Display
AND AD-8920A Universal Remote Display, add $236.25
AND AD-8922A Remote Controller
AND AD-8922A Remote Controller, add $532.50
note: Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.




Cushioning and overload protection mechanism The two leaf springs (or one cruciform spring for the 0.0001 g readability models) that support the weighing pan mitigate impact shocks significantly. Meanwhile, Smart SHS is well protected against vertical and transverse static overloading. It won't break due to malfunction of the weighing system's actuator and the resulting excess load. A&D's testing demonstrated that even a human did no damage to the balance by stepping on it.

Flow rate measurement

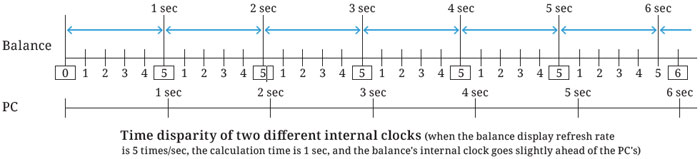

Flow rate is determined from the weight variation that occurs during a given interval. Many operators time this interval by using a stopwatch. Besides being troublesome and error-prone, this method does not allow precise recording of flow rates that vary from moment to moment because the interval used to divide the weight variation (calculation time) is too long

Alternatively, a PC can be connected to the balance to take the weighing data and perform the calculation. This method enables measurement to be more responsive to flow rate changes by shortening the calculation time. However, due to the syncing problems that inevitably occur between the internal clocks of the balance and the PC, the timing at which the balance receives the command from the PC to send the weight value and its display refresh cycle gradually go out of alignment. In consequence, the PC intermittently produces irregular values even when the actual flow rate is constant.


Advanced Sensor Technology Smart-SHS is the latest advancement in our super hybrid design, construction and algorithms. Increased productivity via faster stabilization times (1 second in fast mode) Lower cost of ownership due to reduce number of parts and maintenance accessibility
Innovative Solutions (Electronically Controlled Load (ECL) does a self-diagnostic before performing an internal repeatability test without an external weight, all in less than a minute and a half. )

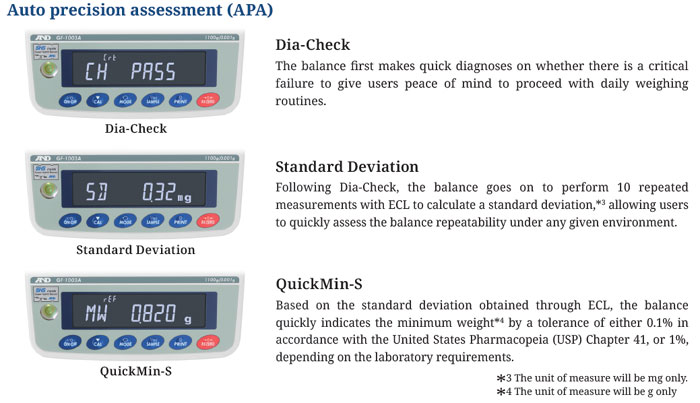

  • Dia-Check – the diagnostic result that validates if the balance critically passes or fails
  • SD – standard deviation that allows for daily precision check, ideal for S.O.P.s
  • QuickMin-S – determines minimum sample weight in any given environment
  • Min-S Alert – alerts user to ensures they are operating within USP41 compliance

Impact Shock Detection (ISD)
  • Impact-alert visually and audibly indicates the magnitudes of impact shocks
  • Shock-log documents date, time, and shock level

Flow Rate Display (FRD) (Helps streamline and improve filling or dosing accuracy and precision.)
  • FR-Cal – calculates, displays/outputs the mass or volume flow rate by entering density
  • FR-Compare – comparator that provides feedback if the flow rate is within limits

Good Data Management
  • Internal/external calibration with easy one-touch button - performs and documents internal calibration
  • Automatic Self-Calibration (ASC) – auto calibrates based on temperature and time interval
  • Password-Protect – offers password-protection up to 11 users and 1 administrator
  • GLP/GMP/GCP Compliance with full calibration reports

Leveling Made Easy
  • Bright-bubble – large, easy-to-see, front mounted spirit level with LED Illumination
  • Fly-thumbwheel is effortless and accessible, allows ergonomic adjustment with anti-slip feet

Simple User and Data Interface
  • Six straightforward keys – ON/OFF, CAL, MODE, SAMPLE, PRINT, REZERO
  • Reverse backlit LCD is a large display with great black and white contrast, provides excellent visibility
  • Standard RS-232C & USB – Toggle between the Quick USB mode or Virtual COM mode (bi-directional)

Cleanable Robust Construction
  • Stainless steel pan and dust-plate can be easily removed for cleaning
  • Easy to assemble anti-static breeze break on 0.001 readability models
  • Die-cast aluminum housing provides extra stability and durability
KEY FEATURES
  • GX-A Internal Calibration
  • ISD Impact Shock Detection
  • FRD Flow Rate Display
  • ECL Electronically Controlled Load
  • USB - Bidirectional
  • RS-232C
  • Universal Flexi Coms
  • Password Protect
  • Super Hybrid Sensor

See Low Price in Cart

Internal Calibration GX-124A GX-224A GX-324A - GX-203A GX-303A GX-403A GX-603A GX-1003A GX-1603A
AND Weighing GX-124A Apol
$1,991.80
ClickPrice
AND Weighing GX-224A Apol
$2,149.30
ClickPrice
AND Weighing GX-324A Apol
$2,398.15
ClickPrice
AND Weighing GX-203A Apol
$1,223.40
ClickPrice
AND Weighing GX-303A Apol
$1,330.30
ClickPrice
AND Weighing GX-403A Apol
$1,412.20
ClickPrice
AND Weighing GX-603A Apol
$1,840.60
ClickPrice
AND Weighing GX-1003A Apo
$2,124.10
ClickPrice
AND Weighing GX-1603A Apo
$2,413.90
ClickPrice
External Calibration GF-124A GF-224A GF-324A GF-123A GF-203A GF-303A GF-403A GF-603A GF-1003A GF-1603A
AND Weighing GF-124A Apol
$1,705.15
ClickPrice
AND Weighing GF-224A Apol
$1,862.65
ClickPrice
AND Weighing GF-324A Apol
$2,202.85
ClickPrice
AND Weighing GF-123A Apol
$900.20
ClickPrice
AND Weighing GF-203A Apol
$989.80
ClickPrice
AND Weighing GF-303A Apol
$1,117.80
ClickPrice
AND Weighing GF-403A Apol
$1,210.60
ClickPrice
AND Weighing GF-603A Apol
$1,402.75
ClickPrice
AND Weighing GF-1003A Apo
$1,686.25
ClickPrice
AND Weighing GF-1603A Apo
$2,168.20
ClickPrice
GX-AE External Calibration GX-124AE GX-224AE GX-324AE - - - - - - -
AND Weighing GX-124AE Apo
$2,798.20
ClickPrice
AND Weighing GX-224AE Apo
$2,917.90
ClickPrice
AND Weighing GX-324AE Apo
$3,135.25
ClickPrice
- - - - - - -
Capacity x Readability 122 x 0.0001 g 220 x 0.0001 g 320 x 0.0001 g 120 x 0.001 g 220 x 0.001 g 320 x 0.001 g 420 x 0.001 g 620 x 0.001 g 1100 x 0.001 g 1620 x 0.001 g
Repeatability (std. deviation) ±0.0002 g ±0.0003 g 0.001 g 0.002 g | 1600g
0.001 g | 1000g
Linearity ±0.0001 g ±0.0002 g (300 g)
±0.0001 g (200 g)
±0.002 g ±0.003 g
Accuracy after internal calibration (GX-A series) * - ±0.010 g ±0.010 g | 1kg
GX-AE series only Built-in fanless ionizer
Antistatic glass panes
Large and detachable breeze break
Retractable doors
External IR switch
-
Stabilization Time Approx. 1.5 sec (100 g) Approx. 2 sec (200 g)
Approx. 1.5 sec (100 g)
Approx. 2 sec (300 g)
Approx. 1.5 sec (100 g)
~ 1 sec
(~0.8 sec for 5 g)
~1.5 sec
(~0.8 sec | 5 g)
Sensitivity drift ±2 ppm / °C (10 °C to 30 °C / 50 °F to 86 °F, when automatic self-calibration is OFF)
Display &Reverse Backlit LCD (Character height: 17.8 mm)
Display Refresh Rate 5 times / second, 10 times / second or 20 times / second
Units of Measure ** mg (milligram), g (gram), oz (ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit g (gram), oz (ounces), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (specific gravity), and a user-programmable unit.
Counting mode - Min unit mass 0.0001 g 0.001 g
Counting mode - Number of samples 5, 10, 25, 50 or 100 pieces
Percent mode - Min 100% ref mass 0.0100 g 0.100 g
Percent mode - Min 100% display 0.01%, 0.1% or 1% (depends on the reference mass stored)
Operating environment 5 °C to 40 °C / 41 °F to 104 °F, 85% R.H. or less (no condensation)
Power supply / consumption AC adapter / approx. 30 VA
Communication Interface Standard: RS-232C and USB
Optional: Quick USB, LAN Ethernet (FXi-08), USB Host (GXA-24), Bluetooth Converters: AD-8529PC-W, AD8529PR-W
Weighing pan size Ø90 mm 128 mm × 128 mm / 5 × 5 in

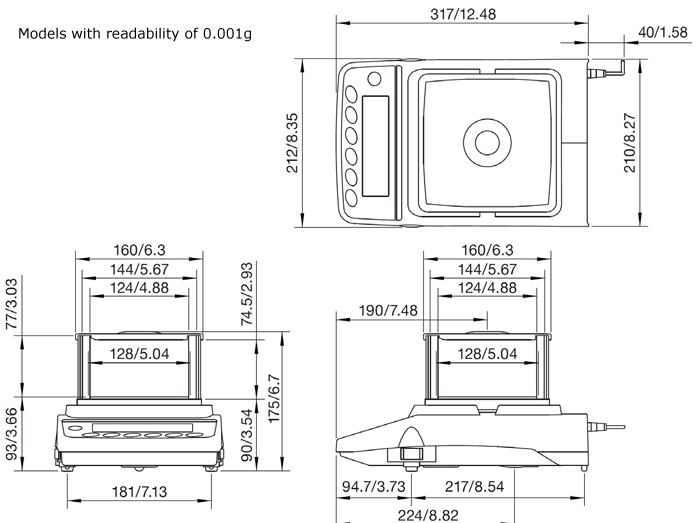

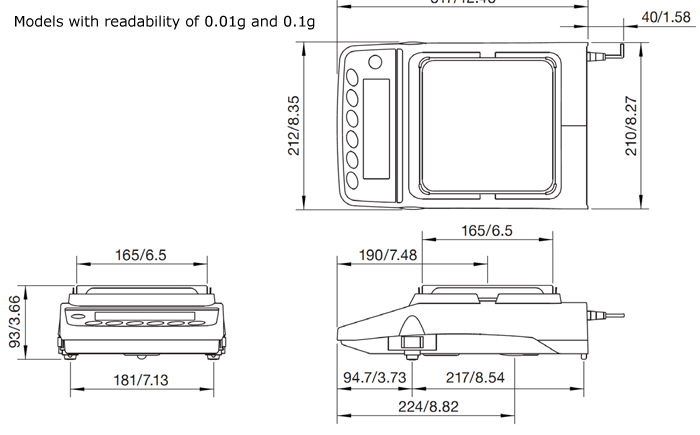

Dimensions (W × D × H) 259 (W) × 358 (D) × 332 (H) mm 212 (W) × 317 (D) × 93 (H) mm / 8.3 (W) × 12.5 (D) × 3.7 (H) in
Net weight Approx. 7 kg Approx. 5 kg / 11 lb
Weighing Applications Counting with ACAI, % Weighing, Animal Weighing, Density Determination, Statistical Calculation, Comparator HI|OK|LO, Underhook, Gross/Net/Tare
Options Interfaces: GXA-03 2nd RS232, GXA-04 Comparator Relay, GXA-06 Analog output | External Key Input Interfaces: GXA-23-PRINT, GXA-23-REZERO, GXA-23-PLUG | Breeze Break: GXA-10 Large BB, GXA-17 Large BB with Ionizer | GXA-13 Density Kit , GXA-25 External Ionizer, GXA-26 External IR Switch , GXA-12 Animal Weigh Pan
Accessories TB247 Power Supply, AD-8127 Compact Printer, AD-1682 External Rechargable Battery and more






See Low Price in Cart

Internal Calibration - GX-2002A GX-3002A GX-4002A GX-6002A GX-10002A GX-6001A GX-10001A
- AND Weighing GX-2002A Apo
$1,330.30
ClickPrice
AND Weighing GX-3002A Apo
$1,582.30
ClickPrice
AND Weighing GX-4002A Apo
$1,654.75
ClickPrice
AND Weighing GX-6002A Apo
$1,941.40
ClickPrice
AND Weighing GX-10002A Ap
$2,606.05
ClickPrice
AND Weighing GX-6001A Apo
$1,475.20
ClickPrice
AND Weighing GX-10001A Ap
$1,453.15
ClickPrice
External Calibration GF-1202A GF-2002A GF-3002A GF-4002A GF-6002A GF-10002A GF-6001A GF-10001A
AND Weighing GF-1202A Apo
$1,002.60
ClickPrice
AND Weighing GF-2002A Apo
$1,028.20
ClickPrice
AND Weighing GF-3002A Apo
$1,063.40
ClickPrice
AND Weighing GF-4002A Apo
$1,342.90
ClickPrice
AND Weighing GF-6002A Apo
$1,639.00
ClickPrice
AND Weighing GF-10002A Ap
$2,023.30
ClickPrice
AND Weighing GF-6001A Apo
$1,133.80
ClickPrice
AND Weighing GF-10001A Ap
$1,188.20
ClickPrice
Capacity x Readability 1200 x 0.01 g 2200 x 0.01 g 3200 x 0.01 g 4200 x 0.01 g 6200 x 0.01 g 10200 x 0.01 g 6200 x 0.1 g 10200 x 0.1 g
Repeatability (std. deviation) 0.01 g 0.1 g
Linearity ±0.02 g ±0.03 g ±0.1 g
Accuracy after internal calibration (GX-A series) * ±0.010 g | 1kg ±0.10 g ±0.15 g ±0.15 g | 5000 g ±0.5 g | 5000 g
Stabilization Time ~ 1 sec
(~0.8 sec | 50 g)
~1 sec
(~0.8 sec for 500 g)
Sensitivity drift ±2 ppm / °C (10 °C to 30 °C / 50 °F to 86 °F, when automatic self-calibration is OFF)
Display &Reverse Backlit LCD (Character height: 17.8 mm)
Display Refresh Rate 5 times / second, 10 times / second or 20 times / second
Units of Measure ** g (gram), oz (ounces), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (specific gravity), and a user-programmable unit.
Counting mode - Min unit mass 0.01 g 0.1 g
Counting mode - Number of samples 5, 10, 25, 50 or 100 pieces
Percent mode - Min 100% ref mass 1.00 g 10.0 g
Percent mode - Min 100% display 0.01%, 0.1% or 1% (depends on the reference mass stored)
Operating environment 5 °C to 40 °C / 41 °F to 104 °F, 85% R.H. or less (no condensation)
Power supply / consumption AC adapter / approx. 30 VA
Communication Interface Standard: RS-232C and USB
Optional: Quick USB, LAN Ethernet (FXi-08), USB Host (GXA-24), Bluetooth Converters: AD-8529PC-W, AD8529PR-W
Weighing pan size 128 mm × 128 mm / 5 × 5 in
Dimensions (W × D × H) 212 (W) × 317 (D) × 93 (H) mm / 8.3 (W) × 12.5 (D) × 3.7 (H) in
Net weight Approx. 5 kg / 11 lb
Weighing Applications Counting with ACAI, % Weighing, Animal Weighing, Density Determination, Statistical Calculation, Comparator HI|OK|LO, Underhook, Gross/Net/Tare
Options Interfaces: GXA-03 2nd RS232, GXA-04 Comparator Relay, GXA-06 Analog output | External Key Input Interfaces: GXA-23-PRINT, GXA-23-REZERO, GXA-23-PLUG | Breeze Break: GXA-10 Large BB, GXA-17 Large BB with Ionizer | GXA-13 Density Kit , GXA-25 External Ionizer, GXA-26 External IR Switch , GXA-12 Animal Weigh Pan
Accessories TB247 Power Supply, AD-8127 Compact Printer, AD-1682 External Rechargable Battery and more
dims 1 dims 2

top








Copyright ©1998-2017 Itin Scale Co., Inc. All rights reserved





Your account Search Contact Us Store Directory Home page Your account Contact Us Search our site Site map and product categories
