Dillon Quick Balance Tension Meter
Authorized Dealer
This revolutionary new cable tension meter was engineered and designed with intent - be robust yet easy to use! The Dillon Quick-Check can be installed, take a cable tension measurement and be uninstalled in under 5 seconds! Its versatile design allows it to be used in a variety of applications and on a variety of wire rope diameters and strand types. With a diameter range from 3/16" to 1" the Quick-Check is able to handle the majority of common rope sizes.
Dillon Quick balance Tension Meter / Wire Tester
Model AWT05-508112 AWT05-508111 AWT05-508251
Capacity x Readability 2000 X 2 lbf 10000 x 10 lbf 10000 lbf*

*Includes 16 calibrations Listed here

Specifications Chart

The Dillon Quick-Check Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables.

The Fastest Cable Tension Meter The Dillon Quick-Check can be placed on a cable, measure its tension, and removed in under five seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 20 different wire sizes and types stored in Quick-Check?s memory. The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick

  • Store wire rope readings and export data
  • Time saving check-tensioning mode
  • Portable and rugged ? designed for outdoor use
  • Built-in averaging saves time and eliminates errors
  • Factory calibrated for up to 20 unique wire sizes and types
  • Sheaves with bearings eliminate friction and provide the best accuracy
  • Accommodates a wide range of wire sizes and styles
  • Telescoping handle engages meter quickly with minimal effort
  • Highly visible yellow finis
  • Easy-to-read backlit display with full-text prompts
  • RS-232 Port
  • Easy to use soft-key interface
  • Uses popular AA batteries and has long life between changes

Case Inclided

Broad Application The Quick-Check can be employed in many industries to ensure proper tensioning. Typical applications include tower and stack guy wires, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, aircraft cables and utilities.

Dillon AWT20-508267 Select cable gauge - for reference only
AWT20-508267
Price: $25.00
In Stock
btn buy

Dillon Quick Check Tension Meter

FREE UPS Ground Shipping
(48 US States Only)


Includes One free Wire Calibration and
One Free sheave with Purchase
1/4 sheave - 3/16" to 1/4"
(36309-0085)
1/2 sheave - 3/16" to 1/2"
(36309-0044)
3/4 sheave - 1/4" to 3/4"
(36309-0010)
1 sheave - 1/2" to 1"
(36309-0101)

Options:
Additional Wire Calibration, Add $110.00

(36309-0085) 1/4 sheave - 3/16" to 1/4", Add $425.00
(36309-0044) 1/2 sheave - 3/16" up to 1/2", Add $310.00
(36309-0010) 3/4 sheave - 1/4" to 3/4", Add $310.00
(36309-0101) 1 sheave - 1/2" to 1", Add $310.00

Dillon 36057-0022MTS Cable computer serial with 9-pin D connector 12-ft (3.6 m), add $170.00
Dillon AWT25-501123 Power supply, 100-240 VAC to 5V for , add $330.00
Dillon AWT25-501124 Power supply, 100-240 VAC/5V to RS-232 for , add $560.00
Dillon AWT05-505714 RS-232 to USB Converter, add $95.00
Dillon AWT20-508267 Select cable gauge - for reference only, add $25.00
Model AWT05-508112 AWT05-508111 AWT05-508251
Dillon AWT05-508112 Quick
$3,070.00
Includes one Free:
1/4 sheave - 3/16" to 1/4"
1/2 sheave - 3/16" to 1/2"
3/4 sheave - 1/4" to 3/4"
1 sheave - 1/2" to 1"
Dillon AWT05-508111 Quick
$3,130.00
Includes one Free:
1/4 sheave - 3/16" to 1/4"
1/2 sheave - 3/16" to 1/2"
3/4 sheave - 1/4" to 3/4"
1 sheave - 1/2" to 1"
Dillon AWT05-508251 Quick
$4,935.00

Includes 16 calibrations

Listed here

Capacity x Readability 2000 X 2 lbf
1000 x 1 kgf
10000 x 10 N
10000 x 10 lbf
4500 x 5 kgf
45000 cx 50 N
10000 lbf*
Wire sizes 3 /16 inch through 1 inch
(4.75 mm through 25.4 mm)
Pre set
Accuracy + 3% instrument capacity
(calibrated to specific wire size and type.)
Loading error Cable elongation of only 0.08 inch (2mm)
Display Dot-graphic LCD display supports full text and 1 inch high digits.
Sheave range Each set accommodates rated wire size and ½? smaller. Multiple sheave sets may be used
Suggested wire calibration Calibrate each wire diameter needed with the most appropriate sheaves. If two wire types are used of the same diameter (e.g. ½? 1x7 and ½? 6x19), calibrate each type independently if accuracy is critical.
Environment protection Suitable for continued outdoor use.
Operating range -4° F to 158° F (-20° C to 70° C)
Tension units of measure pound-force, kilogram force, Newtons
Resolution Configurable low/med/high

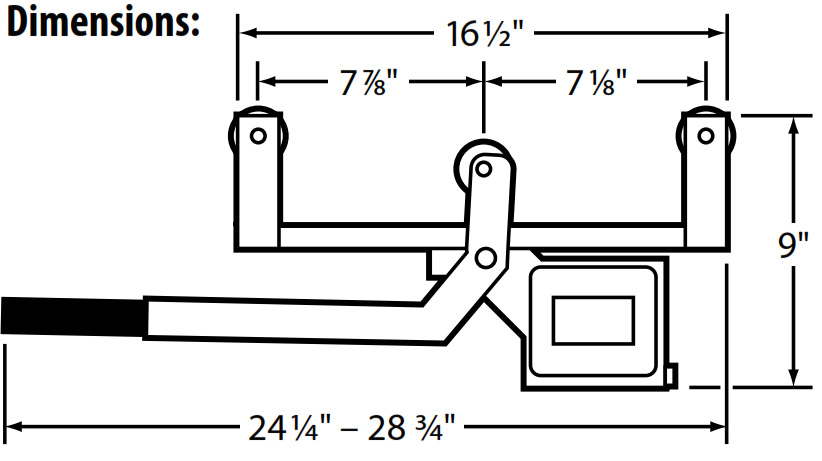

Size 10 x 23 x 3 inch (25 x 59 x 8 c
Weight Approx 11 lb (5 kg)
Recalibration At user discretion. Commonly 12-24 months; should be more frequent with heavy use. On-site recalibration may be possible through your Dillon distributor.
Approvals CE
*pre-calibrated with 16 tower calibrations



The AWT05-508251 include the folowing calibrations

Wire Size Galvanized/Steel Wire Construction Sheave
3/16" 1 x 7 3/16" - 1/2" (P)
1/4" 1 x 7 3/16" - 1/2" (P)
5/16" 1 x 7 3/16" - 1/2" (P)
3/8" 1 x 7 3/16" - 1/2" (P)
7/16" 1 x 7 3/16" - 1/2" (P)
1/2" 1 x 7 3/16" - 1/2" (P)
9/16" 1 x 7 3/16" - 1/2" (P)
5/8" 1 x 7 3/16" - 1/2" (P)
1/2" 1 x 19 1/2" - 1" (T)
9/16" 1 x 19 1/2" - 1" (T)
5/8" 1 x 19 1/2" - 1" (T)
11/16" 1 x 19 1/2" - 1" (T)
3/4" 1 x 19 1/2" - 1" (T)
13/16" 1 x 19 1/2" - 1" (T)
7/8" 1 x 19 1/2" - 1" (T)
1" 1 x 19 1/2" - 1" (T)

Quick Check Tension Meter AWT05-508251 with 16 calibrations

Dillon AWT05-508251 Quick Check Tension Meter, 10,000 lb with 16 tower calibrations
AWT05-508251
Price: $4,935.00
In Stock
