ESL-200 is a super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating and linear motion in a variety of production, quality control and academic applications. It generates an extremely bright light relative to its compact size.
- High efficiency LED solid-state light source
- Extended battery life of 6 hours continuous use at 6,000 fpm/rpm
- Pulse Width Modulation for sharp images at high speed
- Highly stable drift free operation
- Auto wide measuring range – up to 150,000 fpm/rpm (over 100,000 display flashes)
- Push button operation with x2 and ÷2 buttons for easy and precise adjustment
- 359¨ Digital phase shift adjustment by 1¨ increments
- Store up to 9 flash rates in memory for records or quick retests (Restarts at the last flash rate)

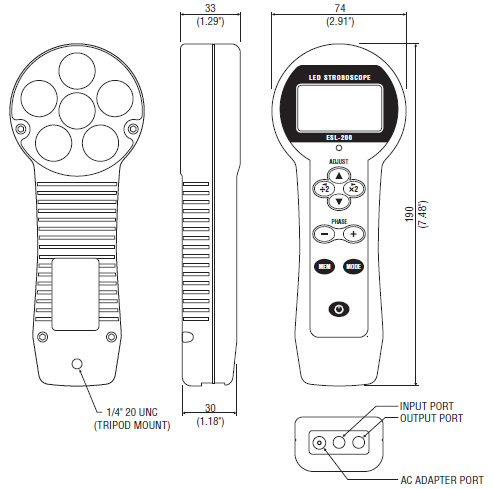

- Rugged aluminum housing – compact size – weighs only 1.2 lb (540 g)
- Easy-to-read 5 digit 0.47" (12 mm) high LCD
- External trigger input and output
- Tripod mountable
- Kit includes stroboscope, AC Adapter/charger, and carrying case.
Adjustable Flash Duration
For most applications standard flash duration works without adjustment. For ultra high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image appears sharper. ESL-200 features adjustable flash duration.
| Model |
ESL-200 |
EST-200T |
EST-200R |
$625.95
|
For more info
Call 1-800-832-0055 |
For more info
Call 1-800-832-0055 |
| Range/Resolution |
12.0 to 9999.9 fpm/rpm, ±0.1 fpm/rpm
10000 to 150000 fpm/rpm, ±1 fpm/rpm
(over 100,000 display flashes) |
| Brightness at 8" |
4300 LUX 6,000 FPM |
- |
- |
| Brightness at 60" |
350 LUX 6,000 FPM |
900 LUX 6,000 FPM |
Custom |
| No. LED Lights |
6 |
9 |
Custom
(expandable with M200-R) |
|
Handheld |
Handheld |
Wall Mountable |
| Selectable Units |
FPM or Hz |
| Accuracy |
±0.01%, ±1 LSD |
| Power |
NiMH rechargeable battery
AC adaptor |
| Display |
2mm, 5 digit LCD |
| Phase Shift |
with external trigger: 0 - 359¨ in 1¨ increments without external trigger: Image positioning only |
| Tripod Thread |
¼ - 20 UNC |
| Operating Temp |
0 – 45¨C |
| Storage Temp. |
-10 – 50¨C |
| Weight |
Base Unit less than 1 lb |
Optional ET-1 External Trigger Kit for LED Stroboscope
 |

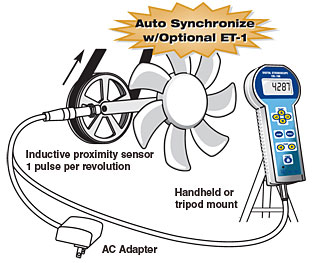

The External Trigger immediately synchronizes the stroboscope with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included.
. For more info call 1-800-832-0055
| Model |
ET-1 |
| Target Material |
Ferrous material |
| Target Size |
4mm dia. (minimum) |
| Sensing Distance |
3mm (based on 10 mm dia. target) |
| Max Speed |
50 m/min (using 10mm dia. target) |
| Max Frequency |
1 KHz |
| Sensor size |
12 mm dia. x 45 mm; M12 connector Cable Length 1.8 m (6') |
| Power |
AC adapter (up to 240VAC) |
|
|
