The HV series vertical wheel operated force measurement test stands feature a compact design with several ranges, up to 750 lbf capacity. The hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control. The rack and pinion design allows the force gauge to remain stationary when the wheel is released. The HV series is very easy to use.

HV-110 (110 lbf)

HV-220 (220 lbf)

HV-300 (300 lbf)

HV-500 (500 lbf)

HV-750 (750 lbf)

Force gauge sold separately

Specifications Chart

Compatible Force Gauges

DS2 ZTA FB PS
More Info More Info More Info More Info
Imada HV Vertical Wheel Test Stands



Imada DB-2 Data Button
Imada DB-2 Data Button, add $245.00
Imada SW-2X Software
Imada SW-2X Software, add $199.00


 HV-220 with Distance Meter
With Distance Meter

The HV series vertical wheel operated force measurement test stands feature a compact design with several ranges, up to 750 lbf capacity. The hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control. The rack and pinion design allows the force gauge to remain stationary when the wheel is released. The HV series is very easy to use. Each rotation of the wheel will move the carriage of the test stand ~2mm.

The HV series test stands can accommodate any of the standard range Imada force gauges. The 300, 500 and 750 lbf capacity stands can accommodate high capacity Imada force gauges. AP-002 Adapter Plate is available to mount most other force gauges to Imada test stands.

An optional digital distance meter is available on all models (add -S to the model number).

Models HV-110 HV-110-S HV-110L HV-110L-S HV-220 HV-220-S HV-300 HV-300-S HV-500 HV-500-S HV-750 HV-750-S
$1,085.00
buy now
$1,735.00
buy now
$1,865.00
buy now
$2,565.00
buy now
$1,300.00
buy now
$1,750.00
buy now
$2,350.00
buy now
$3,100.00
buy now
$2,650.00
buy now
$3,340.00
buy now
$4,250.00
buy now
$4,940.00
buy now
Capacity 110 lbf 110 lbf 110 lbf 110 lbf 220 lbf 220 lbf 300 lbf 300 lbf 500 lbf 500 lbf 750 lbf 750 lbf
Stroke 11.3" (288mm) 11.3" (288mm) 11.3" (288mm) 11.3" (288mm) 11.3" (288mm) 11.3" (288mm) 16.9" (430mm) 16.9" (430mm) 16.9" (430mm) 16.9" (430mm) 16.9" (430mm) 16.9" (430mm)
Clearance 9" (229mm) 9" (229mm) 16.5" (420mm) 16.5" (420mm) 9" (229mm) 9" (229mm) 9" (229mm) 9" (229mm) 9" (229mm) 9" (229mm) 9" (229mm) 9" (229mm)
Travel / Rotation 2mm 2mm 2mm 2mm 2mm 2mm 2mm 2mm 2mm 2mm 2mm 2mm
Distance Meter Included - Yes - Yes - Yes - Yes - Yes - Yes
Distance Meter Display Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off Push button for inch/mm, zero set and on/off
Distance Meter Resolution 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm
Distance Meter Accuracy 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm 0.0005"/0.01 mm
Diagrams HV-110 HV-110-L HV-220 HV-300 HV-500 -

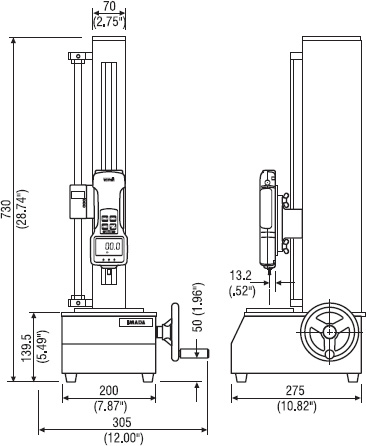

HV-110

HV-110 dims

HV-110-L

HV-110-L dims

HV-220

HV-220 dims

HV-300

HV-300 dims

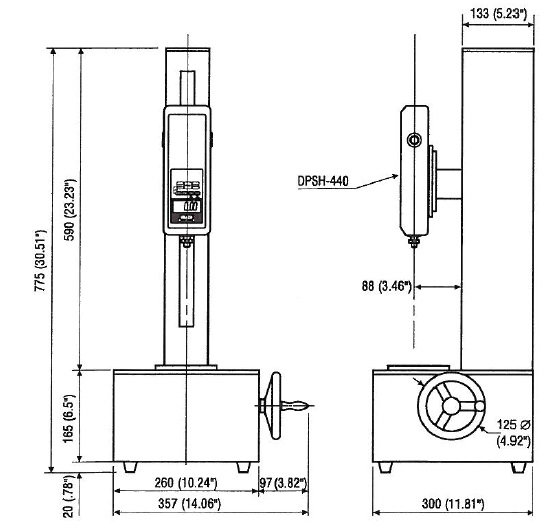

HV-500

 HV-500 dims
