500 - 10000 lb

25000 lb and up

THIS KIT INCLUDES 2 SHACKLES

Fully Integrated RFX? Wireless Weighing Technology

Features:

• Capacities Ranging from 500lb (250kg) to 500,000lb (250,000kg)
• Heavy-Duty Aluminum, Stainless Steel or Nickel Plated Construction
• Standard 9-Volt Batteries Last up to 300 Hours

For applications where viewing a display at the link is not feasible or protection from extreme elements is a must, the TL8000? Tension Link scale is designed with all of the functionality of the TL8500? less the self-contained display at the link. The TL8000? is packaged to include the Handheld Remote Control to view and control the scale at safe distances and fully integrated wireless communication. The standard, commercially available batteries last up to 300 hours in scales.

Intercomp?s TL-RFX? Indicator is a wireless remote display for viewing and controlling TL8000? and TL8500? Series Tension Link Scales from up to 300? (90m), line of sight. It offers three display modes, depending on your operational requirements and allows simultaneous viewing of data from up to four links, including total weight. The large, 3.3" (84mm) graphic display (measured diagonally) is standard with backlight for improved visibility from most viewing angles. Also features output to RFX? Enabled Wireless Printers.

Light-Weight, Compact Design for Cranes, Riggers, Shipyards, Construction Sites, Surveyors, Inspectors & Utilities

When working around overhead loads or measuring line tension, accuracy and safety cannot be compromised. The TL8000? and TL8500? Series Tension Link scales from Intercomp are the industry standard for controlling and monitoring overhead loads and line tension while helping to maintain a safe work environment.

Machined from aerospace-grade aluminum with shock-mounted electronics in a NEMA 4x/IP65 weatherproof enclosure, Intercomp?s Tension Link scales are built to last in capacities ranging from 500lbs (250kgs) to 300 tons

Standard features include an easy-to-read 1.2? (30mm) LCD Display with backlight and fully integrated wireless communication, while alkaline batteries provide up to 300 hours of power.

TL8000? Tension Link Scale WITHOUT Self-Contained LCD Display:

For applications where viewing a display at the link is not feasible or protection from extreme elements is a must, the TL8000? Tension Link scale is designed with all of the functionality of the TL8500? but without the self-contained display at the link. TL8000? is packaged to include the TL-RFX? Indicator to view and control the scale at safe distances.

TL8500? Tension Link Scale WITH Self-Contained LCD Display:

For stand-alone applications when you require an on-board display or prefer the dual functionality of combining your tension link(s) with a remote indicator, the TL8500? combines the most functionality and flexibility into one complete device.

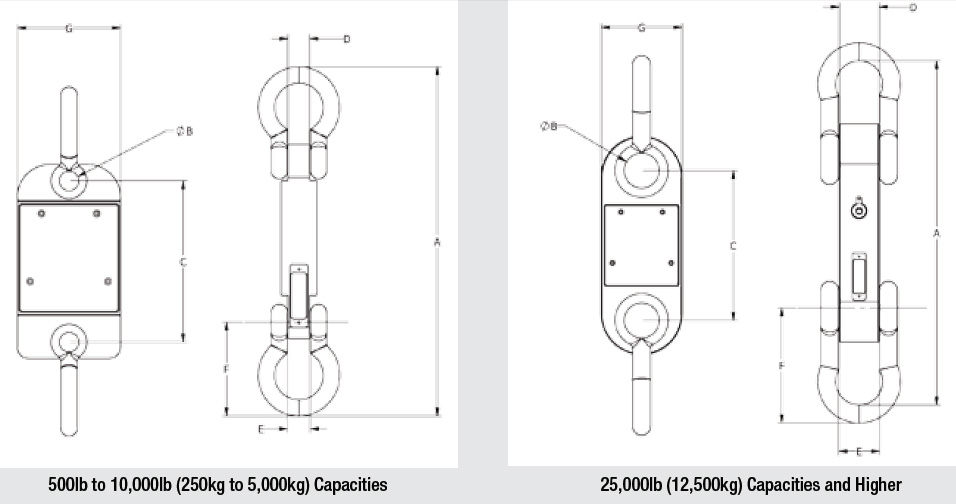

Capacities to 10,000lbs (5,000kgs) are machined from aerospace-grade aluminum. Stainless/Chromoly Steel is used for capacities of 25,000lbs (12,500kgs) and higher.

Industry-Leading features available on all models:

• Standard Wireless Radio with no External Antennas
• Large, Backlit, 5-Digit, 1.2? (30mm) Character LCD Graphic Display
• Indicators for Set Point, Peak, Low-Battery & Units Including: lb, kg, N, daN, ton, kg x 1000
• Dedicated Hard Keys for On/Off & Mode
• Easily Accessible Batteries Last up to 300 Hours of Continuous Use. Standby Mode Provides up to 2,000 Hours of Battery Life
• Sized to Accommodate Industry Standard Shackles
