| This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm).
|
| Force Measurement >> Mark-10 |
This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Ranges available up to 5,000 lbFin (550 Nm).
FEATURES & SPECIFICATIONS
- Rugged cylindrical design
- Square drives on each end

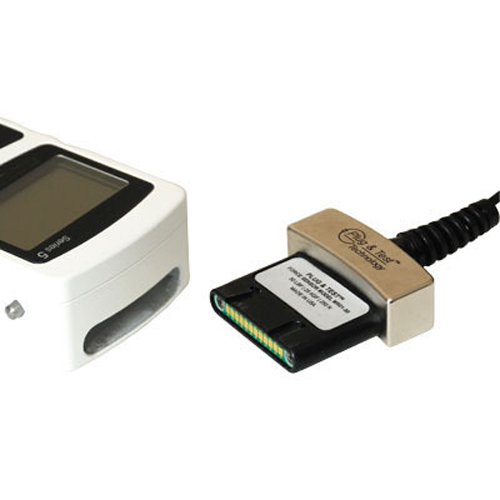

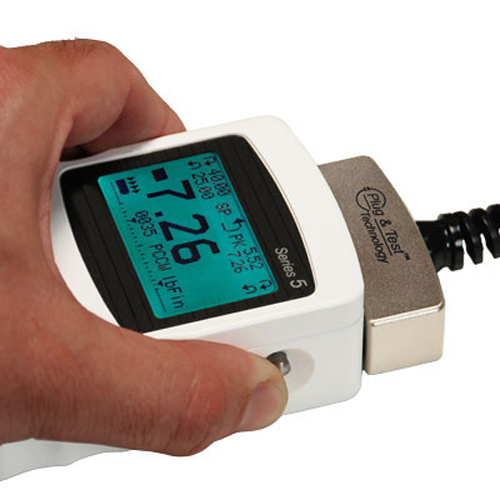

- Member of the Plug & Test™ family of interchangeable sensors and indicators
- Stainless steel and aluminum construction
- NIST-traceable certificate of calibration with data included
- Accuracy: ± 0.6% of full scale + indicator
| Capacity x Resolution with Models 7i and 5i Indicators |
| MODEL |
lbFin |
ozFin |
lbFft |
kgFmm |
Ncm |
Nm |
Price |
| MR55-20 |
20 x 0.02 |
320 x 0.2 |
1.5 x 0.002 |
-- |
220 x 0.2 |
2 x 0.002 |
$1,306.25
|
| MR55-50 |
50 x 0.05 |
800 x 0.5 |
4 x 0.005 |
-- |
570 x 0.5 |
5.7 x 0.005 |
$1,306.25
|
| MR55-100 |
100 x 0.1 |
1600 x 1 |
8 x 0.01 |
-- |
1150 x 1 |
11.5 x 0.01 |
$1,306.25
|
| MR55-200 |
200 x 0.2 |
-- |
16 x 0.02 |
2300 x 2 |
2200 x 2 |
22 x 0.02 |
$1,306.25
|
| MR55-400 |
400 x 0.5 |
-- |
32 x 0.05 |
4600 x 5 |
4500 x 5 |
45 x 0.05 |
$1,306.25
|
| MR55-1000 |
1000 x 1 |
-- |
80 x 0.1 |
11500 x 10 |
11000 x 10 |
110 x 0.1 |
$1,306.25
|
| MR55-5000 |
5000 x 5 |
-- |
400 x 0.5 |
55 x 0.05 kgFm |
55000 x 50 |
550 x 0.5 |
$1,306.25
|
| Capacity x Resolution with Models 3i Indicators |
| MODEL |
lbFin |
ozFin |
kgFmm |
Ncm |
Price |
| MR55-20 |
20 x 0.02 |
320 x 0.5 |
-- |
220 x 0.2 |
$1,306.25
|
| MR55-50 |
50 x 0.05 |
800 x 1 |
-- |
570 x 0.5 |
$1,306.25
|
| MR55-100 |
100 x 0.1 |
1600 x 2 |
-- |
1150 x 1 |
$1,306.25
|
| MR55-200 |
200 x 0.2 |
-- |
2300 x 2 |
2200 x 2 |
$1,306.25
|
| MR55-400 |
400 x 0.5 |
-- |
4600 x 5 |
4500 x 5 |
$1,306.25
|
| MR55-1000 |
1000 x 1 |
-- |
11500 x 10 |
11000 x 10 |
$1,306.25
|
| MR55-5000 |
5000 x 5 |
-- |
55 x 0.05 kgFm |
550 x 0.5 Nm |
$1,306.25
|
| Model |
MR55-20 |
MR55-50 |
MR55-100 |
MR55-200 |
MR55-400 |
MR55-1000 |
MR55-5000 |

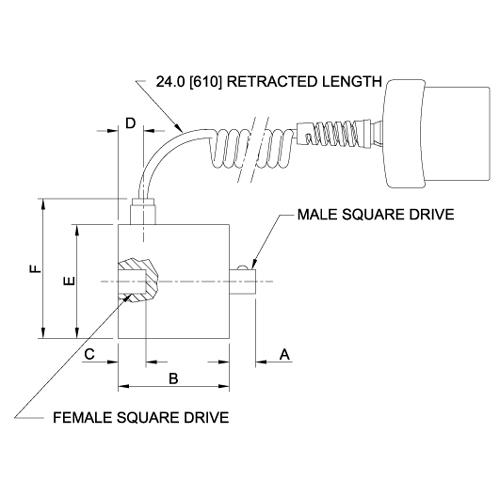

| A |
0.30 [0.75] |
0.41 [10.5] |
0.59 [15.0] |
0.89 [22.5] |
| B |
1.73 [44.0] |
1.73 [44.0] |
2.11 [53.5] |
| C |
0.32 [8.0] |
0.43 [11.0] |
0.63 [16.0] |
0.94 [24.0] |
| Drive Size |
1/4" |
3/8" |
1/2" |
3/4" |
| D |
0.39 [10.0] |
0.77 [19.5] |
| E |
1.77 [45.0] |
2.01 [51.0] |
| F |
2.32 [59.0] |
2.56 [65.0] |
|
