| NCI 7885 Series Shipping Scales |
Authorized Dealer |
| The 7885 is simple to use, durable, accurate and reliable, and ideal for conveyor lines. The remote display can be placed in a convenient location to allow the user to view the weight, zero the scale, or send weight data. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station. |
| Shipping Scales |
7885 - 9503-16679
Platter Flat |
78859503-16680
Platter Ball Top |
The 7885 is simple to use, durable, accurate and reliable, and ideal for conveyor lines. The remote display can be placed in a convenient location to allow the user to view the weight, zero the scale, or send weight data. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station
- Remote Display– Six digit LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scale
- Remote Display Bracket– Front mounted, using velcro strips to attach the remote display to base
- Display Controls– ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scales is fully functional, and allows a real-time view of internal settings.
- Construction– Stainless steel weight platter, powder painted 7 gauge steel weigh bridge and base plate
- Field Calibration– Alternate span points can simplify field calibration by using less than full capacity weights. Can be set-up as either decimal pound or kilogram.
- RS-232 Cable– Included with each scale, DB 9-pin, null modem, female connector allows you to connect to a PC
- Emulation Protocols– Standard NCI default with field confi gurable settings of 8213, 3835, SMA, and Auto Weight Send. This allows you to select compatible scale communication settings or scale drivers during field installation when interfacing with shipping software programs or host devices.
|
|
|
| Model |
7885
9503-16679 |
7885
9503-16680 |
$1,177.42
|
$1,370.97
|
| Capacity x Readability |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
| 60 kg x 0.02 kg |
60 kg x 0.02 kg |
| Legal For Trade |
Class III |
| NTEP CC#02-069 |
| Canada: #AM5507 |
| Computer Interface |
RS232 |
RS232 |
| Platter Type |
Flat Stainless Steel |
Stainless Steel Ball Top |
| Platter Size |
18" x 18" |
18" x 18" |
| Construction |
Stainless steel weight platter, powder painted 7 gauge steel weigh bridge and base plate |
| Display |
6 digit LCD |
| Dimensions |

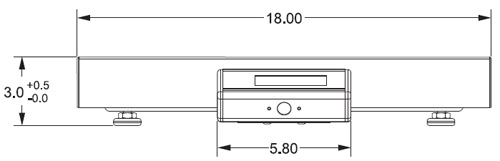

18" L x 18" W x 3" H
457 mm (L) x 457 mm (W) x 76 mm (H) |
| Power |
120 VAC (+10% -15%), 60 Hz, standard 3-wire ground |
| Operating Environment |
Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10 to 95% (non-condensing) |
| Input/Output |
RS-232, bi-directional, confi gurable 1200 – 19.2K baud. Transmits weight and scale status whenever ASCII “W” is sent by a remote device |
|
|
