Legal For Trade Canada Measurement Legal Specifications Chart Dimensions Chart

The Best Value for Durable Industrial Weighing - The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.

• Full Metal Housing Offers Strength and Protection and Maximizes Product Life ? Sturdy metal housing and slip-resistant rubber feet provide protection and stability necessary for tough industrial weighing, while extending the product?s usable life.
• A Bright White LED Display Makes the Scale Usable Even in Dim Conditions ? The largest, white LED display on any scale in its class, combined with checkweighing LEDs and audible indicators, make Ranger 4000 highly functional in loud and dim industrial settings.
• User-Friendly Software Makes Ranger 4000 Very Easy to Operate ? Spend time on your work, not on mastering the technicalities of the scale. SmarText? software makes scale setup and use very simple.
• Extremely Fast One Second Stabilization Time Increases Efficiency ? With a stabilization time of just one second, Ranger 4000 works efficiently to enhance productivity levels.

Metal Housing Ensures Protection With die-cast sealed metal housing and slip-resistant rubber feet, Ranger 4000 was built to maximize product life and withstand heavy duty use to ensure accurate operation in industrial environments.

White LED Display Illuminates Results Ranger 4000?s bright white 1.5" LED display is 57% larger than displays on other scales in its class. Coupled with checkweighing LEDs and audible indicators, Ranger 4000 was built to stand up to the challenges often faced in industrial weighing.

Intuitive Software Supports Simple Navigation Powered by SmarText? software, Ranger 4000?s simple navigation works in tandem with the scale?s dedicated keys to create a user experience that requires minimal effort.

Rapid Stabilization Ranger 4000 produces accurate results within one second. The rapid stabilization virtually eliminates your wait time and allows you to move at a pace determined by you and not your weighing equipment. Work efficiently and with confidence to ensure accurate results. Maximize your throughput without sacrificing accuracy with the Ranger 4000

• Weighing Determine the weight of items in the selected unit of measure.
• Percent Weighing Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight.
• Parts Counting Count samples of uniform weight.
• Check Weighing/Percent/Counting Compare the weight/percent/count of a sample against target limits. Choose from Checkweight, Checkpercent or Checkcount
• Accumulation Totalization of weight, count or percent. Calculates total accumulated weight, count or percent of separate items.
• Dynamic Weighing Weigh an unstable load. Scale takes an average of weights over a time period.
• Display Hold Manually or automatically holds the last stable weight on the balance display. Activated by setting time interval of Dynamic Weighing to zero.

Standard Connectivity with Flexible Options Standard RS232 with optional Ethernet, second RS232 and USB offers additional data transfer capabilities and allows connection to multiple peripherals.
Connect a large, high capacity platform through the 2nd platform option, utilizing the precision and advanced features of Ranger 4000 for high capacity weighing.

Internal Power Supply and Rechargeable Battery Say goodbye to being restricted to working only near power outlets! Ranger 4000 is equipped with a rechargeable lead acid battery that can provide power for more than 100 hours! It can also be powered through the easy connect power cord that takes up minimal space and automatically adapts to different power line voltages and frequencies, eliminating disruptions in workflow due to power outages and shortages.

Metrology The Ranger 4000 meets the Class III requirements of OIML R76, NIST Handbook 44 and Canada Weights and Measures Regulations.

Specifications

Model	R41ME3	R41ME6	R41ME15	R41ME30
Price	$762.60 In Stock - Ships within 24 hours Add to Cart	$762.60 In Stock - Ships within 24 hours Add to Cart	$762.60 In Stock - Ships within 24 hours Add to Cart	$762.60 In Stock - Ships within 24 hours Add to Cart
Capacity × Readability	6 × 0.0002 lb 3 × 0.0001 kg 3,000 × 0.1 g 96 × 0.005 oz	15 × 0.0005 lb 6 × 0.0002 kg 6,000 × 0.2 g 240 × 0.01 oz	30 × 0.001 lb 15 × 0.0005 kg 15,000 × 0.5 g 480 × 0.02 oz	60 × 0.002 lb 30 × 0.001 kg 30,000 × 1 g 960 × 0.05 oz
Legal for Trade Capacity × Readability	6 × 0.002 lb 3 × 0.001 kg 3,000 × 1 g 96 × 0.05 oz	15 × 0.005 lb 6 × 0.002 kg 6,000 × 2 g 240 × 0.1 oz	30 × 0.01 lb 15 × 0.005 kg 15,000 × 5g 480 × 0.2 oz	60 × 0.02 lb 30 × 0.01 kg 30,000 × 10 g 960 × 0.5 oz
Legal for Trade	OIML R76 (R76/2006-NL1-15.21) NTEP (CC 13-022) Measurement Canada (AM-5907C)
Min. Recommended Sample Weight	2 g / 0.004 lb	4 g / 0.01 lb	10 g / 0.02 lb	20 g / 0.04 lb
Min. Recommended APW	0.01 g / 0.00002 lb	0.02 g / 0.00005 lb	0.05 g / 0.0001 lb	0.1 g / 0.0002 lb
Max. Internal Counting Resolution	1:1,500,000
Maximum Displayed Resolution	1:30,000
Certified/Approval Resolution	1:3,000
Construction	Stainless steel platform, Die cast aluminum housing
Weighing Units	kg, g, lb, oz, lb:oz
Application Modes	Weighing, Parts Counting, Checkweighing, Checkcounting, Accumulation
Display	3-Window, 1 inch / 26mm high LCD display with white backlight, 6-digit, 7-segment
Checkweighing Indicators	3 LED (yellow, green, red) with configurable operation and alert beeper
Memory	30 item library
Keyboard	8 function, 12 numeric mechanical keys
Zero Range	4% or 20% of full scale capacity
Tare Range	Full capacity by subtraction
Stabilization Time	1 second
Auto-Zero Tracking	Off, 0.5, 1 or 3 divisions
Safe Overload Capacity	150% of capacity
Power	100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery
Battery Life	210 hours continuous use with 12 hour recharge time
Calibration	External, with user-selectable calibration weight
Interface	Built-in RS232, optional 2nd platform, 2nd RS232, USB, Ethernet
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Platform Size (W × L)	11.8 × 8.9 in / 300 mm × 225 mm

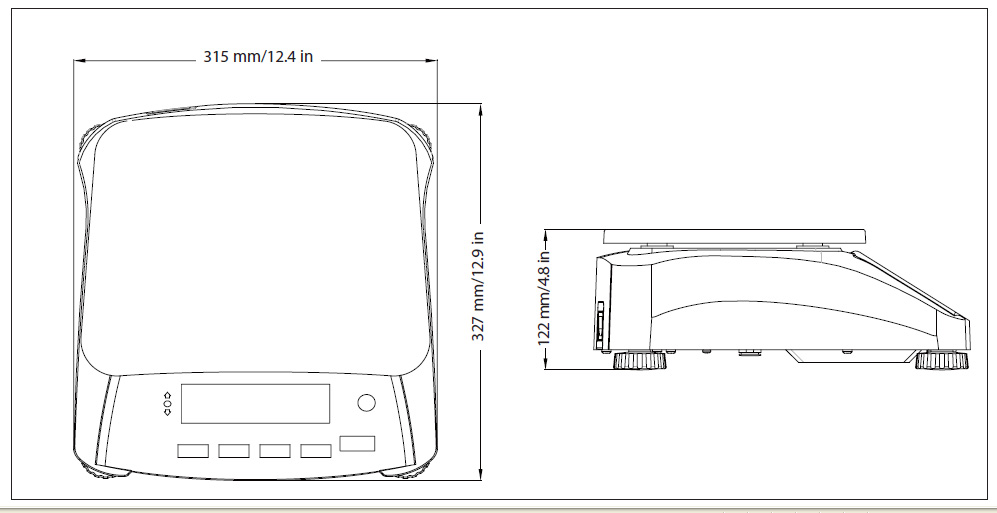

Scale Dimensions (W × L × H)	12.4 × 12.9 × 4.8 in / 315 × 327 × 122 mm
Shipping Dimensions (W × L × H)	15.6 × 17.6 × 7.7 in / 397 × 447 × 195 mm
Net Weight	13 lb / 5.9 kg
Shipping Weight	15.9 lb / 7.2 kg

Other Standard Features and Equipment
Stainless steel platform, sealed front panel, menu lockswitch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare

• Metrology: OIML R76 (R76/2006-NL1-15.21); NTEP (CC 13-022); Measurement Canada (AM-5907C)
• Product Safety: IEC/EN 60950-1; CAN/CSA C22.2 60950-1; UL 60950-1
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class B;Industry Canada ICES-003 Class B
• Other: WEEE/ROHS

• 2nd Platform, Kit - 30037446
• Ethernet,Kit - 30037447
• Second RS232 Kit - 30037448
• USB Kit - 30037449
• In Use Cover - 30240697
• SF40A Impact Printer with Cable - 30064203
