RADWAG HY10-HRP High Resolution Scales RADWAG Balances and Scales
Authorized Dealer

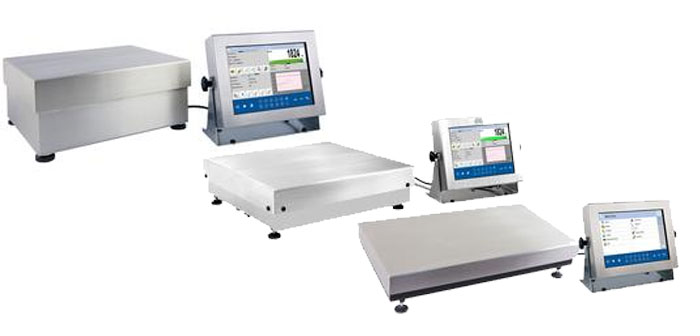

HY10.HRP the series of professional high resolution weighing platforms, perfectly suits every single branch of industry requiring great weighing accuracy, precision and repeatability of measurement in challenging industrial environment.
RADWAG HY10-HRP High Resolution Scales
call us

Specifications Chart

RADWAG HY10-HRP High Resolution Scales

For a limited time only
Add to Cart to see Lower Price

HY10.HRP the series of professional high resolution weighing platforms, perfectly suits every single branch of industry requiring great weighing accuracy, precision and repeatability of measurement in challenging industrial environment.

Data safety and archiving is assured by software dedicated for RADWAG terminals

Automatic adjustment performed by means of an internal adjustment weight guarantees the highest quality of operation and repeatability of measurement. In comparison to manual adjustment process the automatic one is both, time-saving and convenient. Data safety and archiving is assured by software dedicated for RADWAG terminals

Features:
  • Brand new design of an electromagnetic mechanism housed in a dustproof and waterproof casing
  • Overload protection
  • An in-built adjustment system equipped with an internal adjustment weight
  • High IP rating for the terminal, IP68/69, and the platform, IP67
  • Interfaces: RS 232, USB, Ethernet and customized 4 INs and 4 OUTs for cooperation with peripherals

Plastic Coated Steel Models

Model HY10.16.HRP HY10.32.HRP HY10.62.HRP HY10.120.HRP HY10.150.HRP HY10.300.HRP HY10.300.1.HRP HY10.600.HRP HY10.1100.HRP
Price RADWAG HY10.16.HRP High R
$3,836.80
buy now
RADWAG HY10.32.HRP High R
$4,206.40
buy now
RADWAG HY10.62.HRP High R
$4,488.00
buy now
RADWAG HY10.120.HRP High
$4,611.20
buy now
RADWAG HY10.150.HRP High
$4,681.60
buy now
RADWAG HY10.300.HRP High
$5,544.00
buy now
RADWAG HY10.300.1.HRP Hig
$6,406.40
buy now
RADWAG HY10.600.HRP High
$6,652.80
buy now
RADWAG HY10.1100.HRP High
$6,899.20
buy now
Capacity x Readability 16 kg x 0.1 g 32 kg x 0.1 g 62 kg x 0.5 g 120 kg x 1 g 150 kg x 1 g 300 kg x 2 g 300 kg x 2 g 600 kg x 5 g 1100 kg x 10 g
Minimum load 5 g 5 g 25 g 50 g 50 g 100 g 100 g 250 g 500 g
Tare range -16 kg -32 kg -64 kg -120 kg -150 kg -300 kg -300 kg -600 kg -1100 kg
Preload range 4 kg 4 kg 30 kg 10 kg 30 kg 60 kg 60 kg 60 kg 100 kg
Repeatability 0.1 g 0.1 g 0.3 g 0.3 g 1.5 g 3 g 3 g 7.5 g 15 g
Linearity ± 0.1 g ± 0.3 g ± 1 g ± 1 g ± 3 g ± 6 g ± 6 g ± 15 g ± 30 g
Stabilization time 3 s
Housing Construction: Plastic-coated steel, Weighing pan: stainless steel
Adjustment internal
Sensitivity drift 2 ppm/°C in temperature +10° ÷ +40°C
Units g, kg, ct, lb, oz, N
Working temperature +10° - +40 °C
Pan size 360 × 280 mm 500 × 500 mm 800 × 600 mm 1000 × 800 mm
Atmospheric humidity 40% ÷ 80%
Display 10.1" (touch screen)
IP rating IP 65 - construction, IP 66/67 - indicator
Power supply 100 ÷ 240 V AC 50 ÷ 60 Hz
Standard interfaces 2×RS 232, 2×USB, 1×Ethernet, 4 IN / 4 OUT
Optional interfaces Module 12 × IN / 12 × OUT, Module AN, Module PROFIBUS, Module CAN Open, Wireless Module
Net weight / Gross weight 2
Net weight/Gross weight 24.7 kg/28.7 kg 37 kg/52 kg 71 kg/119 kg 126 kg/160 kg

Stainless Steel Models

Model HY10.16.HRP.H HY10.32.HRP.H HY10.62.HRP.H HY10.120.HRP.H HY10.150.HRP.H HY10.300.HRP.H HY10.300.1.HRP.H HY10.600.HRP.H HY10.1100.HRP.H
Price RADWAG HY10.16.HRP.H  Hig
$4,012.80
buy now
RADWAG HY10.32.HRP.H High
$4,382.40
buy now
RADWAG HY10.62.HRP.H High
$5,931.20
buy now
RADWAG HY10.120.HRP.H Hig
$6,054.40
buy now
RADWAG HY10.150.HRP.H Hig
$6,916.80
buy now
RADWAG HY10.300.HRP.H Hig
$7,620.80
buy now
RADWAG HY10.300.1.HRP Hig
$8,008.00
buy now
RADWAG HY10.600.HRP.H Hig
$8,254.40
buy now
RADWAG HY10.1100.HRP.H Hi
$8,500.80
buy now
Capacity x Readability 16 kg x 0.1 g 32 kg x 0.1 g 62 kg x 0.5 g 120 kg x 1 g 150 kg x 1 g 300 kg x 2 g 300 kg x 2 g 600 kg x 5 g 1100 kg x 10 g
Minimum load 5 g 5 g 25 g 50 g 50 g 100 g 100 g 250 g 500 g
Tare range -16 kg -32 kg -64 kg -120 kg -150 kg -300 kg -300 kg -600 kg -1100 kg
Preload range 4 kg 4 kg 30 kg 10 kg 30 kg 60 kg 60 kg 60 kg 100 kg
Repeatability 0.1 g 0.1 g 0.3 g 0.3 g 1.5 g 3 g 3 g 7.5 g 15 g
Linearity ± 0.1 g ± 0.3 g ± 1 g ± 1 g ± 3 g ± 6 g ± 6 g ± 15 g ± 30 g
Stabilization time 3 s
Housing Balance base: powder-coated aluminium
weighing pan: stainless steel
Construction: stainless steel
Weighing pan: stainless steel
Adjustment internal
Sensitivity drift 2 ppm/°C in temperature +10° ÷ +40°C
Units g, kg, ct, lb, oz, N
Working temperature +10° - +40 °C
Pan size 360 × 280 mm 500 × 500 mm 800 × 600 mm 1000 × 800 mm
Atmospheric humidity 40% ÷ 80%
Display 10.1" (touch screen)
IP rating IP 65 - construction, IP 66/67 - indicator
Power supply 100 ÷ 240 V AC 50 ÷ 60 Hz
Standard interfaces 2×RS 232, 2×USB, 1×Ethernet, 4 IN / 4 OUT
Optional interfaces Module 12 × IN / 12 × OUT, Module AN, Module PROFIBUS, Module CAN Open, Wireless Module
Net weight / Gross weight 2
Net weight/Gross weight 24.7 kg/28.7 kg 37 kg/52 kg 71 kg/119 kg 126 kg/160 kg

Optional Additional equipment

  • Impact printers:
  • EPSON TM-U220D – standard version
  • EPSON TM-U220B – with an autocutter
  • EPSON TM-U220A – with an autocutter and a copy-winder
  • Label printers:
  • CITIZEN CL-S521
  • CITIZEN CL-S621
  • CITIZEN CL-S631
  • CITIZEN CL-S700
  • CITIZEN CL-S700R
  • ZEBRA GK 420d
  • ZEBRA GK 420t
  • ZEBRA GX 420t
  • ZEBRA GX 430t
  • ZEBRA ZT 220
  • ZEBRA ZT 41042
  • Barcode scanners:
  • LS2208 – intended for standard operating conditions, standard version
  • PowerScan D8330 – indended for severe operating conditions IP56
  • PowerScan M8300 – indended for severe operating conditions IP56 cordless system
  • Transponder card readers:
  • CK-01/3
  • CK-02/3
  • CABLES:
  • PT0087 – for EPSON, CITIZEN and other printers on USB
  • PT0212 – straight-thru Ethernet cable with RJ45 connector
  • WEIGHTS:
  • Mass standard
  • Adjustment weight
  • MISCELLANEOUS EQUIPMENT:
  • TARE / PRINT foot button
  • MW Manager PC software
