Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

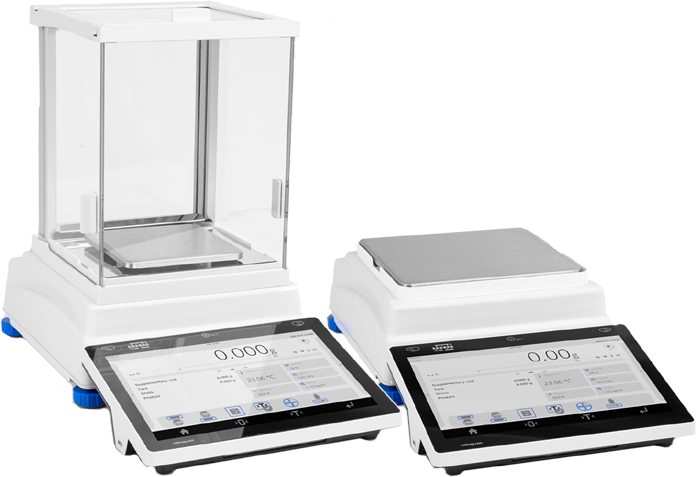

5Y Terminal
With Terminal 5Y you get a 10-inch display, Digital Weighing Auditor, multi-step user verification, ambient light alerts, hotspot, RFID*, live note voice and text notes, voice commands for the balance and handy measurement history within the handy library widgets
Digital Weighing Auditor
Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity
10-Inch Display
Bigger screen – 10 in – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.
Uncompromising User Verification
For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
Ambient Light – An Innovative Way for the Balance to Communicate With the User
The light colour will tell you about status, process results, procedures, or alerts
Hotspot
Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.
RFID
ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a use
Live Note – Note Down Your Conclusions
It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.
Handy Library
This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.
Widgets
Prepared to display what you need most at any given moment.
Smart Min Weight
The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.
21 CFR Part 11
Do you work in the pharmaceutical industry?
Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11. Call us for more info before you order
- Full data security
- Electronic signatures
- Validations
- Electronic records
- Audit trails
Modbus TCP/IP
is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.
A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
Two-point adjustment
Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
Functions
- Autotest
- Dosing
- Percent Weighing
- Parts counting
- Peak hold
- Formulation
- Statistics
- Checkweighing
- IR sensors
- GLP Procedures
- Animal weighing
- Pipettes Calibration
- Air density correction
- Density determination
- Differential weighing
- Ambient conditions monitoring
- Statistical Quality Control
- Packaged Goods Control
- ALIBI Memory
- Wi-Fi®
| Standard Model |
PS 200/2000.5Y
WL-220-0418 |
PS 210.5Y
WL-220-0408 |
PS 360.5Y
WL-220-0412 |
PS 600.5Y
WL-220-0414 |
PS 750.5Y
WL-220-0416 |
PS 1000.5Y
WL-220-0406 |
PS 3000.5Y
WL-220-0410 |
$2,766.00
|
$2,435.00
|
$2,460.00
|
$2,490.00
|
$2,522.00
|
$2,700.00
|
$4,025.00
|
| Capacity x Readability |
200 g x 1 mg
2000 x 0.01 g |
210 g x 1 mg |
360 g x 1 mg |
600 g x 1 mg |
750 g x 1 mg |
1000 g x 1 mg |
3000 g x 1 mg |
| Tare range |
-2000 g |
-210 g |
-360 g |
-600 g |
-750 g |
-1000 g |
-3000 g |
| Standard repeatability [5% Max] |
0.5 / 5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.6 mg |
| Standard repeatability [Max] |
1 / 10 mg |
1 mg |
1 mg |
1.5 mg |
1.5 mg |
1.5 mg |
1.5 mg |
| Standard minimum weight (USP) |
1 g |
1 g |
1 g |
1 g |
1 g |
1 g |
1.2 g |
| Standard minimum weight (U=1%, k=2) |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.12 g |
| Linearity |
+2 / 20 mg |
+2 mg |
+2 mg |
+3 mg |
+3 mg |
+3 mg |
+6 mg |
| Stabilization time |
2 / 1.5 s |
2 s |
2 s |
2 s |
2 s |
2 s |
3 s |
| Adjustment |
internal (automatic) |
| Leveling system |
semi-automatic - LevelSENSING |
| Delivery components |
Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. |
| Weighing pan dimensions |

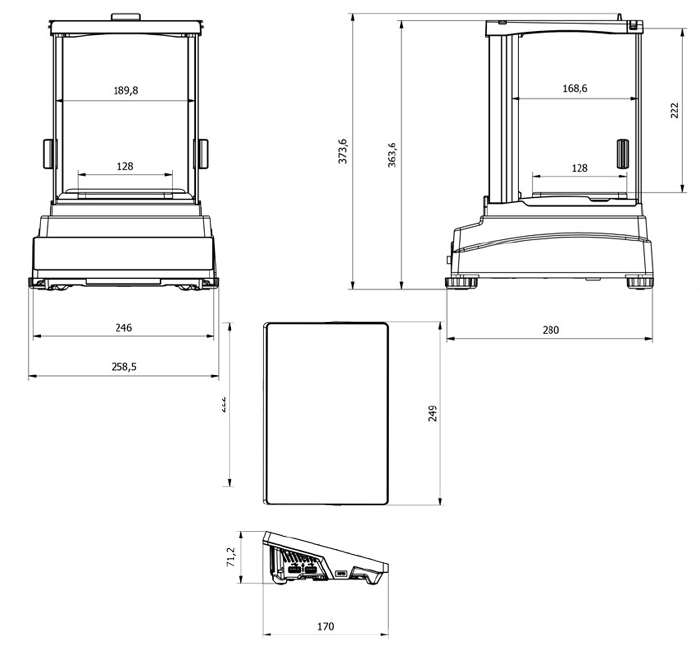

128×128 mm |
| Packaging dimensions |
600×400×550 mm |
| Net weight |
3,99 kg |
3,54 kg |
3,99 kg |
3,99 kg |
3,9 kg |
4,01 kg |
3,9 kg |
| Gross weight |
5,5 kg |
5 kg |
5 kg |
5,5 kg |
5 kg |
5 kg |
5,5 kg |
| Protection class |
IP 43 |
| Database capacity |
7 |
| Touch-free operation |
2 IR Sensors |
| Communication interface |
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot |
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A Balance: 12 – 15V DC 0,8A max |
| Power consumption |
4 W |
| Operating temperature |
+10 ÷ +40 oC |
| Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
| Relative humidity |
40% ÷ 80% |
Repeatability is expressed as a standard deviation from 10 weighing cycles. Stabilization time depends on the ambient conditions and the
dynamics of weighing pan loading; specified for FAST profile. 1 Barcode scanners, available as weighing instrument accessory,
| Standard Model |
PS 2100.5Y.M
WL-220-0409 |
PS 3500.5Y.M
WL-220-0411 |
PS 4500.5Y.M
WL-220-0413 |
PS 6100.5Y.M
WL-220-0415 |
PS 8100.5Y.M
WL-220-0417 |
PS 10100.5Y.M
WL-220-0407 |
$2,460.00
|
$2,500.00
|
$2,549.00
|
$2,577.00
|
$2,772.00
|
$2,982.00
|
| Capacity x Readability |
2100 x 0.01 g |
3500 x 0.01 g |
4500 x 0.01 g |
6100 x 0.01 g |
8100 x 0.01 g |
10100 x 0.01 g |
| Tare range |
-2100 g |
-3500 g |
-4500 g |
-6100 g |
-8100 g |
-10100 g |
| Standard repeatability [5% Max] |
5 mg |
5 mg |
5 mg |
5 mg |
5 mg |
5 mg |
| Standard repeatability [Max] |
8 mg |
8 mg |
8 mg |
8 mg |
10 mg |
12 mg |
| Standard minimum weight (USP) |
10 g |
10 g |
10 g |
10 g |
10 g |
10 g |
| Standard minimum weight (U=1%, k=2) |
1 g |
1 g |
1 g |
1 g |
1 g |
1 g |
| Linearity |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
| Stabilization time |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
| Adjustment |
internal (automatic) |
| Leveling system |
semi-automatic - LevelSENSING |
| Delivery components |
Balance, weighing pan, weighing pan shield, power supply |
| Weighing pan dimensions |

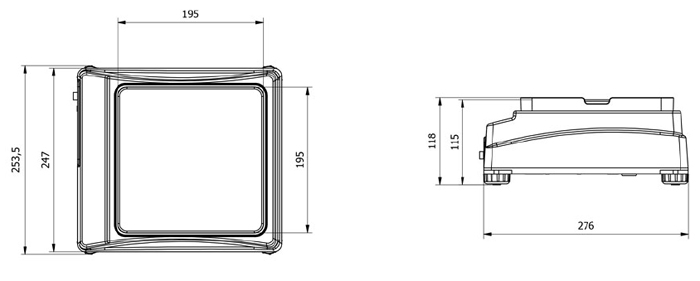

195x195 mm |
| Packaging dimensions |
720×370×274 mm |
| Net weight |
7.2 kg |
7.2 kg |
7.2 kg |
7.2 kg |
7.2 kg |
7.2 kg |
| Gross weight |
9.3 kg |
9.3 kg |
9.3 kg |
9.3 kg |
9.3 kg |
9.3 kg |
| Protection class |
IP 43 |
| Database capacity |
7 |
| Touch-free operation |
2 IR Sensors |
| Communication interface |
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot |
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A Balance: 12 – 15V DC 0,8A max |
| Power consumption |
4 W |
| Operating temperature |
+10 ÷ +40 oC |
| Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
| Relative humidity |
40% ÷ 80% |
Repeatability is expressed as a standard deviation from 10 weighing cycles. Stabilization time depends on the ambient conditions and the
dynamics of weighing pan loading; specified for FAST profile. 1 Barcode scanners, available as weighing instrument accessory,
|
