RADWAG WLC A Series Precision Balances RADWAG Balances and Scales
Authorized Dealer
The WLC A Series Precision Balance is designed for quick and precise mass determination of weighed loads under laboratory or industrial conditions. It can be used remotely, as it comes standard with an internal rechargeable battery (at 230V) and RS 232 output.
WLC 1/A2, WLC 2/A2 ,WLC 10/A2 ,WLC 20/A2
WLC 1/A2, WLC 2/A2 ,WLC 10/A2 ,WLC 20/A2
WLC 6/F1/R, WLC 30/F1/R, WLC 60/C2/
WLC 6/F1/R, WLC 30/F1/R, WLC 60/C2/
call us

Specifications Chart

RADWAG WLC A Series Precision Balances

For a limited time only
Add to Cart to see Lower Price

The WLC A Series Precision Balance is designed for quick and precise mass determination of weighed loads under laboratory or industrial conditions. It can be used remotely, as it comes standard with an internal rechargeable battery (at 230V) and RS 232 output. The WLC Series has a stainless steel weighing platform and backlit LCD display for clear and legible measurement result. The balance is available in dual range (non-verified) version for an extra charge.
  • CHECKWEIGHING - Checkweighing function is used for checking whether the measured sample mass is within the predefined threshold values, Low [LO] and Hgh [HI]. The thresholds are given in [g] and [kg] units. Current state of a sample being measured is signalled by means of pictorgams located on a display for laboratory balances, for industrial scales Stackligt System is used. This visual /- inspection is in operation during segregation, control or packing process of products for which mass has bees determined with a specifaied tolerance, eg. 12860 g 961
  • PARTS COUNTING - Function using mass measurement for determination of measured items quantity. Mass of a single item is required for this process. It may be either estimated through weighment or taken from a database. For items counting the following algorithm is used: all items mass / single item mass = quantity. Function operation is supperted by a mechanism of Automatic Correction of Accuracy. This allows to update single item mass in course of the process. To a certain extend Automatic Correction of Accuracy eliminates error which may be a result of different mass values of seemingly alike single elements. For industry solutions items counting may be simultaneously carried out with checkweighing and dosing thus industry solutions feature audio signalling base informing that specified number of items has been weighed. It is possible to apply weighing systems using few platfroms of different MAX capacities and different accuracies.
  • PERCENT SETUP - Percent setup function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly excessed.
  • ANIMAL WEIGHING - Process of mass determination for a product which may unwillingly reposition within the weighing pan. Mass determination in such cases requires much longer period of time when compared to typical weighing process. It is the user who defines period of time needed for control of measured product mass. The user can thus optimaze the function depending on the measured product characteristics.
  • PEAK HOLD - Function registering the greatest temporary indication occurring in course of the weighing process. It is most often used in medical scales in order to hold the measurement indication.
  • For the C2 Line, internal calibration is available in addition to standard manual calibration.
  • For the K Line, a versatile cable connection is utilized between the balance and indicator.
Model WLC 1/A2 WLC 2/A2 WLC 10/A2 WLC 20/A2 WLC 6/F1/R WLC 6/F1/K WLC 30/F1/R WLC 30/F1/K WLC 60/C2/R WLC 60/C2/K
Price RADWAG WLC 1/A2  Precisio
$525.00
buy now
RADWAG WLC 2/A2 Precision
$525.00
buy now
RADWAG WLC 10/A2  Precisi
$525.00
buy now
RADWAG WLC 20/A2  Precisi
$557.00
buy now
RADWAG WLC 6/F1/R  Precis
$509.00
buy now
RADWAG WLC 6/F1/K  Precis
$509.00
buy now
RADWAG WLC 30/F1/R Precis
$509.00
buy now
RADWAG WLC 30/F1/K Precis
$509.00
buy now
RADWAG WLC 60/C2/R Precis
$779.00
buy now
RADWAG WLC 60/C2/K Precis
$779.00
buy now
Capacity x Readability 1000 x 0.01 g 2000 x 0.01 g 10000 x 0.1 g 20000 x 0.1 g 6000 x 0.1 g 6000 x 0.1 g 30000 x 0.5 g 30000 x 0.5 g 60000 x 1 g 60000 x 1 g
Tare range -1000 g -2000 g -10000 g -20000 g -6000 g -6000 g -30000 g -30000 g -60000 g -60000 g
Linearity ±0.03 g ±0.03 g ±0.3 g ±0.3 g ±0.2 g ±0.2 g ±1.5 g ±1.5 g ±2 g ±2 g
Repeatability 0.01 g 0.01 g 0.1 g 0.1 g 0.1 g 0.1 g 0.5 g 0.5 g 1 g 1 g
Working temperature +15 - +30 °C
Pan size 195×195 mm 300×300 mm 400×500 mm
Atmospheric humidity 10÷85% RH no condensation
Stabilization time 3 s
Display LCD (backlit)
Power supply 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Operation time on batteries 45 h (average time)
Interface RS 232
Adjustment / Calibration external
IP rating IP 43
OIML Class - II - II
Net weight/Gross weight 2.8 kg/4.3 kg 5.2 kg/6 kg 12.5 kg/15 kg
  • EPSON TM-U220D, TM-U220B, TM-U220A PRINTER
  • RACK FOR UNDER HOOK WEIGHING
  • ADDITIONAL LCD DISPLAY
  • SUITCASE FOR BALANCE
  • DENSITY DETERMINATION KIT FOR SOLIDS AND LIQUIDS
  • EXTERNAL BATTERY PACK WITH CHARGER
  • COMPUTER SOFTWARE PW-WIN, RAD-KEY

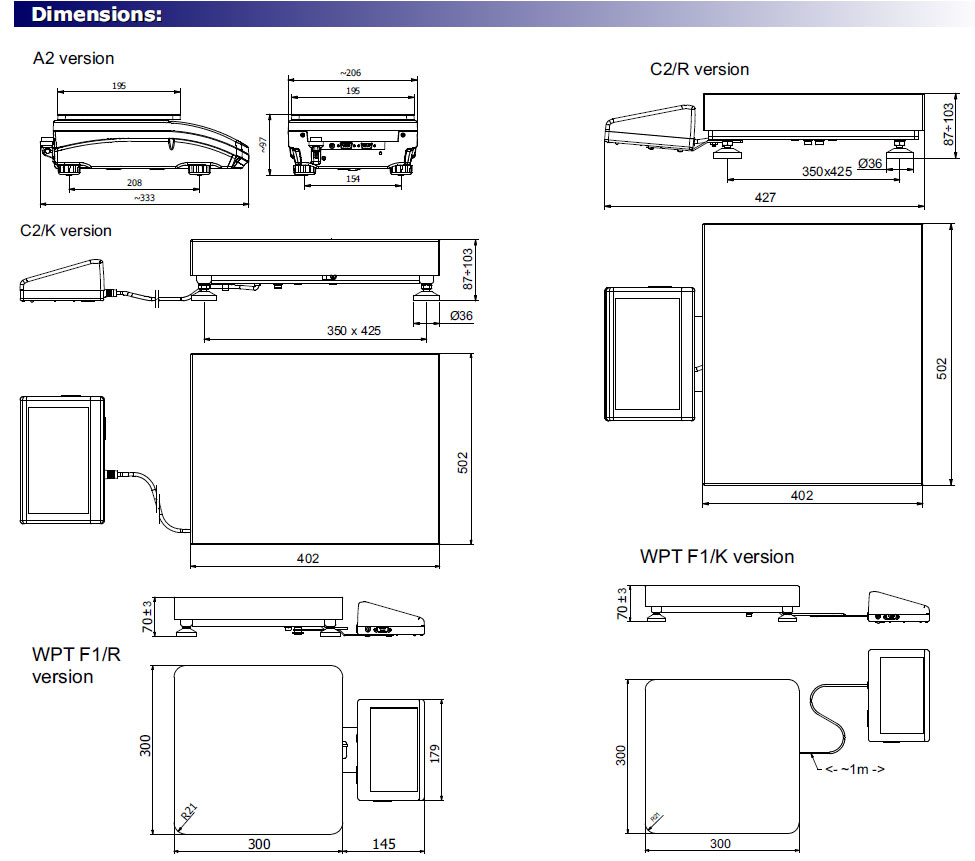

Dims
