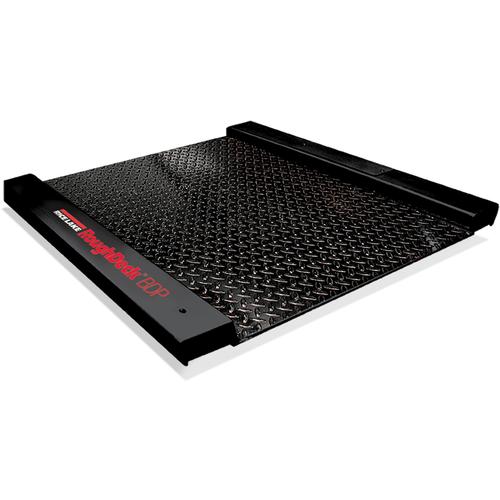

Rice Lake Roughdeck BDP Mild Steel Drum Scales
When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck® BDP floor scales' low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates,
	Rice Lake Roughdeck BDP 77962 Mild Steel Barrel, Drum, Pallet Scale 30 in x 31 in Base Only 1000 lb
Base Only Indicator Sold Separately
Legal For Trade Canada Measurement

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Mild Steel (set of 2) , Add $32.30
Rice Lake Roughdeck BDP Mild steel deck with RL35023S stainless steel (cFMus approved) load cells, and hardware , Add $270.00
Rice Lake Roughdeck BDP Mild steel deck with RL35082 hermetically sealed IP69K stainless steel cFMus approved load cells and hardware , Add $720.00
Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
Rice Lake Roughdeck BDP
BDP Mild Steel Drum Scales

Price From: $1665.30



Select Indicator (Must be added with scale)
Rice Lake 120 LED Digital Weight Indicator , Add $359.45
Rice Lake 120 Plus LCD Digital Weight Indicator , Add $470.05
Rice Lake IQ Plus 210 Stainless Steel LED Digital Weight Indicator , Add $572.75
Rice Lake 480 LED Legend Series Digital Weight Indicator , Add $691.25
Rice Lake 482 LCD Legend Series Digital Weight Indicator , Add $791.70

For a full list of Rice Lake Indicators Click Here

Ramps
Rice Lake 78011 Roughdeck BDP 30 x 12 in Steel Painted Treaded Top Access Ramp
Rice Lake 78011 Roughdeck BDP 30 x 12 in Steel Painted Treaded Top Access Ramp, add $212.00
Rice Lake 78012 Roughdeck BDP 36 x 12 in Steel Painted Treaded Top Access Ramp
Rice Lake 78012 Roughdeck BDP 36 x 12 in Steel Painted Treaded Top Access Ramp, add $212.00
Portability Kit
Rice Lake Roughdeck BDP 78021 Mild Steel Portability Kit  30 x 31 in 1,000-2,500  lb
Rice Lake Roughdeck BDP 78021 Mild Steel Portability Kit 30 x 31 in 1,000-2,500 lb, add $869.70
Rice Lake Roughdeck BDP 78022 Mild Steel Portability Kit  36 x 37 in 1,000-2,500  lb
Rice Lake Roughdeck BDP 78022 Mild Steel Portability Kit 36 x 37 in 1,000-2,500 lb, add $928.20
Hinged Ramps for Portability Kit
Rice Lake 78015 Roughdeck BDP 29.25 x 12  in Steel Painted Treaded Hinged Ramp for Portability Kit
Rice Lake 78015 Roughdeck BDP 29.25 x 12 in Steel Painted Treaded Hinged Ramp for Portability Kit, add $212.00
Rice Lake 78016 Roughdeck BDP 35.25 x 12  in Steel Painted Treaded Hinged Ramp for Portability Kit
Rice Lake 78016 Roughdeck BDP 35.25 x 12 in Steel Painted Treaded Hinged Ramp for Portability Kit, add $212.00
When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck® BDP floor scales low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

The RoughDeck® BDP can be used as a stationary or portable scale and features a low-profile design that allows optional access ramps to sit flush with the ground for smooth loading of barrels and drums. The BDP is equipped with live side rails so large items and pallets that exceed the platform dimensions can be accurately weighed.

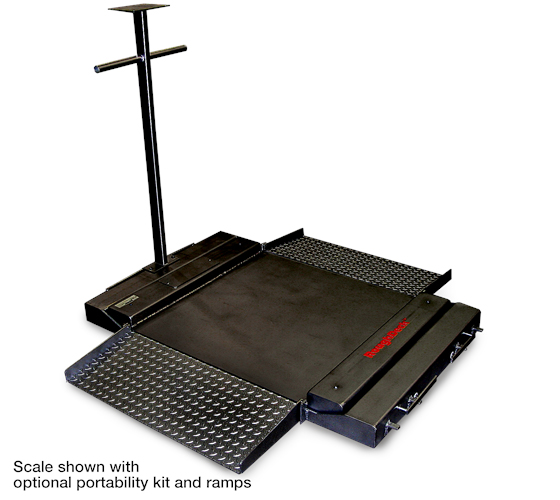

The stationary BDP can be easily converted into a portable scale with the optional portability kit. The kit is compact and sits below the live side rails. The caster-engaging mechanism in the portability frame permits operators to effortlessly move the BDP from one location to another. When ramps are attached to the portability frame, the hinges allow the operator to rest the ramps on the scale platform while in-motion.

The BDP can be paired with any Rice Lake indicator. The indicator is conveniently attached to the portability frame pedastal, which is separate from the live weighing platform, eliminating interference when zeroing the scale.

  • Live siderails
  • Top access foot adjustment holes (holes are 1/2-13 threaded for lifting scale)
  • 4 adjustable stainless steel SUREFOOT? support feet
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Treaded top plate
  • Alloy steel load cells
Model 77962 77963 77964 77965
Rice Lake Roughdeck BDP 7
$1,665.30
buy now
Rice Lake Roughdeck BDP 7
$1,665.30
buy now
Rice Lake Roughdeck BDP 7
$1,782.30
buy now
Rice Lake Roughdeck BDP 7
$1,782.30
buy now
Size (W x L)
Not Including Side Rails
30 in x 31 in 30 in x 31 in 36 in x 37 in 36 in x 37 in
Capacity x Readability 1000 x 0.5 lb 2500 x 1 lb 1000 x 0.5 lb 2500 x 1 lb
500 x 0.2 kg 1000 x 0.5 kg 500 x 0.2 kg 1000 x 0.5 kg
Legal For Trade NTEP CC 03-060, Class III 2,500d
Measurement Canada AM-5578 (500 kg) Class III 2,500 d (1000 kg) Class III 2,000 d
End Load Capacity 1000 lb: 100% full scale
2500 lb: 80% full scale
Junction Box TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Load cells Alloy steel load cells included
Optional load cells upgrades to cFMus approved, FM approved or IP69K cFMus approved are available
Construction Treaded top plate - Mild Steel
Cable 10 ft (3 m)
Warranty RoughDeck BDP weldment three years, load cells two years, all other components one year
Approvals NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1000 kg) Class III 2,000 d

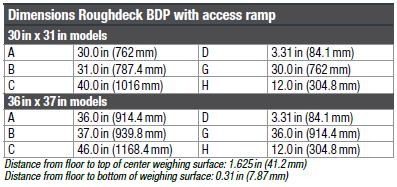

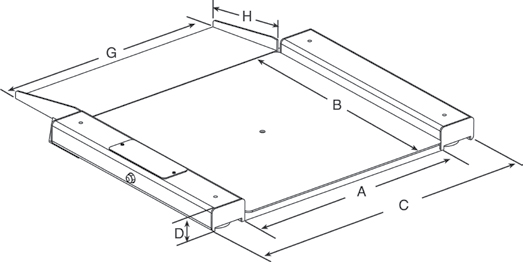

Rice Lake Roughdeck BDP 77962 Mild Steel Barrel, Drum, Pallet Scale 30 in x 31 in Base Only 1000 lb dims
