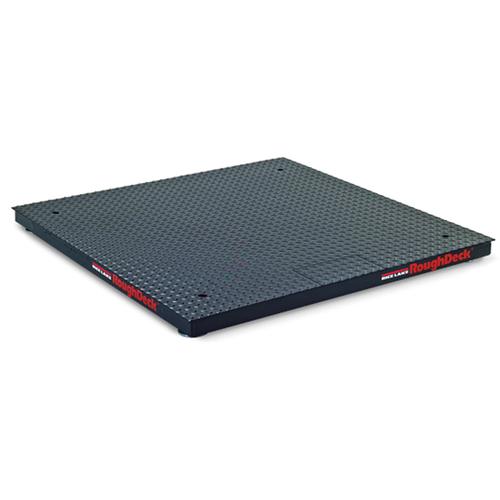

Rice Lake Roughdeck HP-H Structural Steel High Performance Heavy Capacity Floor Scales
The RoughDeck HP-H floor scales' best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 20,000 to 30,000 pound capacities, the RoughDeck HP-H floor scale is the industry leader for precision weighing in Legal for Trade applications.
Rice Lake Roughdeck HP-H Steel High Performance Heavy Floor Scale - Legal for Trade - Base Only - 2000 lb
Base Only Indicator Sold Separately
Legal For Trade
Selected Models
Canada Measurement
Selected Models

Specifications Chart

Please Call (800)832-0055
or Email Us for help
Ordering this Scale
 Factory Installed Options Must be added with scale
Rice Lake Roughdeck HP Smooth Deck Instead of Diamond Safety Tread Plate , Add $1.00
Rice Lake Anchor plate set, mild steel, 20,000 lb capacity models , Add $43.35
Rice Lake Anchor plate set, mild steel, 30,000 lb capacity models , Add $43.35
Rice Lake Roughdeck HP-H 4 drilled deck holes for scale height adjustment , Add $40.00
Rice Lake Roughdeck HP-H Mild steel Deck with RL35023S Stainless Steel FM Approved Load Cells and Hardware , Add $300.00
Rice Lake Roughdeck HP-H Mild Steel Deck with RLH35 Welded-Seal IP67 Stainless Steel FM Approved Load Cells and Hardware , Add $500.00
Rice Lake Roughdeck HP-H Mild Steel Deck with RL35082 Hermetically Sealed IP69K Stainless Steel FM Approved Load Cells and Hardware , Add $800.00
Rice Lake Roughdeck HP-H with Epoxy Paint , Add $90.00
Rice Lake Roughdeck HP-H Top Access Junction Box , Add $100.00
Harsh environments and demanding capacities are no match for the industry?s toughest floor scale. RoughDeck lives up to its name with superior structural design, specialized footing, and durable load cell and cable protection. RoughDeck?s design separates it from other floor scales by minimizing deck deflection and extraneous forces that could damage load cells. Standard or customized, the RoughDeck series is available in low-profile stationary and portable versions, and offers component interchangeability and alternative construction materials to meet specific industrial requirements?from basic shipping and receiving to highly corrosive or washdown environments.
Ramps
Rice Lake Roughdeck HP-H Access Ramp 4 ft x 4 ft x 4 in
Rice Lake Roughdeck HP-H Access Ramp 4 ft x 4 ft x 4 in, add $1,115.40
Rice Lake Roughdeck HP-H Access Ramp 5 ft x 4 ft x 4 in
Rice Lake Roughdeck HP-H Access Ramp 5 ft x 4 ft x 4 in, add $1,275.30
Rice Lake Roughdeck HP-H Access Ramp 6 ft x 4 ft x 4 in
Rice Lake Roughdeck HP-H Access Ramp 6 ft x 4 ft x 4 in, add $1,341.60
Rice Lake Roughdeck HP-H Access Ramp 7 ft x 4 ft x 4 in
Rice Lake Roughdeck HP-H Access Ramp 7 ft x 4 ft x 4 in, add $1,560.00
Rice Lake Roughdeck HP-H Access Ramp 8 ft x 4 ft x 4 in
Rice Lake Roughdeck HP-H Access Ramp 8 ft x 4 ft x 4 in, add $1,723.80
Rice Lake Roughdeck HP-H Access Ramp 4 ft x 5 ft x 5 in
Rice Lake Roughdeck HP-H Access Ramp 4 ft x 5 ft x 5 in, add $1,384.50
Rice Lake Roughdeck HP-H Access Ramp 5 ft x 5 ft x 5 in
Rice Lake Roughdeck HP-H Access Ramp 5 ft x 5 ft x 5 in, add $1,540.50
Rice Lake Roughdeck HP-H Access Ramp 6 ft x 5 ft x 5 in
Rice Lake Roughdeck HP-H Access Ramp 6 ft x 5 ft x 5 in, add $1,688.70
Rice Lake Roughdeck HP-H Access Ramp 7 ft x 5 ft x 5 in
Rice Lake Roughdeck HP-H Access Ramp 7 ft x 5 ft x 5 in, add $1,911.00
Rice Lake Roughdeck HP-H Access Ramp 8 ft x 5 ft x 5 in
Rice Lake Roughdeck HP-H Access Ramp 8 ft x 5 ft x 5 in, add $2,207.40
Single Side Bumper Guard
Rice Lake RoughDeck HP-H Bumper Guard Option A 4.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 4.0 ft, add $304.15
Rice Lake RoughDeck HP-H Bumper Guard Option A 5.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 5.0 ft, add $379.20
Rice Lake RoughDeck HP-H Bumper Guard Option A 6.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 6.0 ft, add $454.25
Rice Lake RoughDeck HP-H Bumper Guard Option A 7.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 7.0 ft, add $529.30
Rice Lake RoughDeck HP-H Bumper Guard Option A 8.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 8.0 ft, add $604.35
Rice Lake RoughDeck HP-H Bumper Guard Option A 9.0 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 9.0 ft, add $679.40
Rice Lake RoughDeck HP-H Bumper Guard Option A 10 ft
Rice Lake RoughDeck HP-H Bumper Guard Option A 10 ft, add $758.40
Rice Lake Roughdeck HP-H Structural Steel High Performance Heavy Capacity Floor Scales

Price From: $3029.95



Select Indicator (Must be added with scale)
Rice Lake 480 with Quick Connect , Add $712.50
Rice Lake 480 Plus Legend with Quick Connect , Add $712.50
Rice Lake 482 with Quick Connect , Add $812.95
Rice Lake 482 Plus Legend with Quick Connect< , Add $812.95

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
Pit Frame
Rice Lake 39595 RoughDeck HP-H 4 ft x 4 ft Pit Frame (20,000lb)
Rice Lake 39595 RoughDeck HP-H 4 ft x 4 ft Pit Frame (20,000lb), add $616.20
Rice Lake 39596 RoughDeck HP-H 4 ft x 5 ft Pit Frame (20,000lb)
Rice Lake 39596 RoughDeck HP-H 4 ft x 5 ft Pit Frame (20,000lb), add $659.65
Rice Lake 39597 RoughDeck HP-H 4 ft x 6 ft Pit Frame (20,000lb)
Rice Lake 39597 RoughDeck HP-H 4 ft x 6 ft Pit Frame (20,000lb), add $707.05
Rice Lake 39598 RoughDeck HP-H 4 ft x 7 ft Pit Frame (20,000lb)
Rice Lake 39598 RoughDeck HP-H 4 ft x 7 ft Pit Frame (20,000lb), add $799.50
Rice Lake 39599 RoughDeck HP-H 5 ft x 5 ft Pit Frame (20,000lb)
Rice Lake 39599 RoughDeck HP-H 5 ft x 5 ft Pit Frame (20,000lb), add $742.60
Rice Lake 39600 RoughDeck HP-H 5 ft x 6 ft Pit Frame (20,000lb)
Rice Lake 39600 RoughDeck HP-H 5 ft x 6 ft Pit Frame (20,000lb), add $834.60
Rice Lake 39601 RoughDeck HP-H 5 ft x 7 ft Pit Frame (20,000lb)
Rice Lake 39601 RoughDeck HP-H 5 ft x 7 ft Pit Frame (20,000lb), add $869.70
Rice Lake 39602 RoughDeck HP-H 6 ft x 6 ft Pit Frame (20,000lb)
Rice Lake 39602 RoughDeck HP-H 6 ft x 6 ft Pit Frame (20,000lb), add $967.20
Rice Lake 39603 RoughDeck HP-H 6 ft x 7 ft Pit Frame (20,000lb)
Rice Lake 39603 RoughDeck HP-H 6 ft x 7 ft Pit Frame (20,000lb), add $1,006.20
Rice Lake 39604 RoughDeck HP-H 6 ft x 8 ft Pit Frame (20,000lb)
Rice Lake 39604 RoughDeck HP-H 6 ft x 8 ft Pit Frame (20,000lb), add $1,160.25
Rice Lake 39605 RoughDeck HP-H 7 ft x 9 ft Pit Frame (20,000lb)
Rice Lake 39605 RoughDeck HP-H 7 ft x 9 ft Pit Frame (20,000lb), add $1,131.00
Rice Lake 39606 RoughDeck HP-H 7 ft x 10 ft Pit Frame (20,000lb)
Rice Lake 39606 RoughDeck HP-H 7 ft x 10 ft Pit Frame (20,000lb), add $1,193.40
Rice Lake 39607 RoughDeck HP-H 8 ft x 10 ft Pit Frame (20,000lb)
Rice Lake 39607 RoughDeck HP-H 8 ft x 10 ft Pit Frame (20,000lb), add $1,236.30
Rice Lake 39608 RoughDeck HP-H 4 ft x 4 ft Pit Frame (30,000lb)
Rice Lake 39608 RoughDeck HP-H 4 ft x 4 ft Pit Frame (30,000lb), add $730.75
Rice Lake 39609 RoughDeck HP-H 4 ft x 5 ft Pit Frame (30,000lb)
Rice Lake 39609 RoughDeck HP-H 4 ft x 5 ft Pit Frame (30,000lb), add $766.30
Rice Lake 39610 RoughDeck HP-H 4 ft x 6 ft Pit Frame (30,000lb)
Rice Lake 39610 RoughDeck HP-H 4 ft x 6 ft Pit Frame (30,000lb), add $822.90
Rice Lake 39611 RoughDeck HP-H 4 ft x 7 ft Pit Frame (30,000lb)
Rice Lake 39611 RoughDeck HP-H 4 ft x 7 ft Pit Frame (30,000lb), add $904.80
Rice Lake 39612 RoughDeck HP-H 5 ft x 5 ft Pit Frame (30,000lb)
Rice Lake 39612 RoughDeck HP-H 5 ft x 5 ft Pit Frame (30,000lb), add $869.70
Rice Lake 39613 RoughDeck HP-H 5 ft x 6 ft Pit Frame (30,000lb)
Rice Lake 39613 RoughDeck HP-H 5 ft x 6 ft Pit Frame (30,000lb), add $924.30
Rice Lake 39614 RoughDeck HP-H 5 ft x 7 ft Pit Frame (30,000lb)
Rice Lake 39614 RoughDeck HP-H 5 ft x 7 ft Pit Frame (30,000lb), add $967.20
Rice Lake 39615 RoughDeck HP-H 6 ft x 6 ft Pit Frame (30,000lb)
Rice Lake 39615 RoughDeck HP-H 6 ft x 6 ft Pit Frame (30,000lb), add $1,127.10
Rice Lake 39619 RoughDeck HP-H 7 ft x 10 ft Pit Frame (30,000lb)
Rice Lake 39619 RoughDeck HP-H 7 ft x 10 ft Pit Frame (30,000lb), add $1,251.90
Rice Lake 39620 RoughDeck HP-H 8 ft x 10 ft Pit Frame (30,000lb)
Rice Lake 39620 RoughDeck HP-H 8 ft x 10 ft Pit Frame (30,000lb), add $1,298.70
The Toughest, Most Accurate Floor Scale Available

The RoughDeck HP-H floor scales best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 20,000 to 30,000 pound capacities, the RoughDeck HP-H floor scale is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP-Hs NEMA Type 4 aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

  • Heavy-duty industrial design
  • Structural steel channel frame
  • 4 NTEP Certified alloy steel, shear beam load cells
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable
  • TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
  • Side-access junction box
  • Rugged diamond safety treadplate deck
  • 4 adjustable mild steel SUREFOOT ? support feet
Model with Quick Connect HPH-4X4-20K HPH-4X5-20K HPH-4X6-20K HPH-4X7-20K HPH-5X5-20K HPH-5X6-20K HPH-5X7-20K HPH-6X6-20K HPH-6X8-20K HPH-7X9-20K HPH-7X10-20K HPH-8X10-20K
66474 66475 66476 66477 66478 66479 66480 66481 66482 66483 66484 66485
Rice Lake HPH-4X4-20K Rou
$3,029.95
buy now
Rice Lake HPH-4X5-20K Rou
$3,237.85
buy now
Rice Lake HPH-4X6-20K Rou
$3,530.45
buy now
Rice Lake HPH-4X7-20K Rou
$3,811.50
buy now
Rice Lake HPH-5X5-20K Rou
$3,511.20
buy now
Rice Lake HPH-5X6-20K Rou
$3,946.25
buy now
Rice Lake HPH-5X7-20K Rou
$4,115.65
buy now
Rice Lake HPH-6X6-20K Rou
$4,594.20
buy now
Rice Lake HPH-6X8-20K Rou
$5,700.00
buy now
Rice Lake HPH-7X9-20K Rou
$7,121.20
buy now
Rice Lake HPH-7X10-20K Ro
$8,280.20
buy now
Rice Lake HPH-8X10-20K Ro
$9,355.60
buy now
Capacity x Readability 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb 20000 x 4 lb
Size 4 ft x 4 ft x 4 in 4 ft x 5 ft x 4 in 4 ft x 6 ft x 4 in 4 ft x 7 ft x 4 in 5 ft x 5 ft x 4 in 5 ft x 6 ft x 4 in 5 ft x 7 ft x 4 in 6 ft x 6 ft x 4 in 6 ft x 8 ft x 4 in 7 ft x 9 ft x 4 in 7 ft x 10 ft x 4 in 8 ft x 10 ft x 4 in
Legal For Trade NTEP CC 92-001, Class III, 5,000 d
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (3/4-10NC) located in center of deck for easy liftingg
Warranty (limited) RoughDeck HP-H weldment five years, load cells two years, all other components one year
End Load Capacity 100% full scale at 20,000 lb



Model with Quick Connect HPH-4X4-30K HPH-4X5-30K HPH-4X6-30K HPH-4X7-30K HPH-5X5-30K HPH-5X7-30K HPH-6X6-20K HPH-7X10-20K HPH-8X10-20K
66486 66487 66488 66489 66490 66491 66492 66493 66494
Rice Lake HPH-4X4-30K Rou
$3,622.85
buy now
Rice Lake HPH-4X5-30K Rou
$3,953.95
buy now
Rice Lake HPH-4X6-30K Rou
$4,088.70
buy now
Rice Lake HPH-4X7-30K Rou
$4,389.00
buy now
Rice Lake HPH-5X5-30K Rou
$4,054.05
buy now
Rice Lake HPH-5X7-30K Rou
$4,613.20
buy now
Rice Lake HPH-6X6-30K Rou
$5,225.00
buy now
Rice Lake HPH-7X10-30K Ro
$9,051.60
buy now
Rice Lake HPH-8X10-30K Ro
$10,153.60
buy now
Capacity x Readability 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb 30000 x 6 lb
Size 4 ft x 4 ft x 5 in 4 ft x 5 ft x 5 in 4 ft x 6 ft x 5 in 4 ft x 7 ft x 5 in 5 ft x 5 ft x 5 in 5 ft x 7 ft x 5 in 6 ft x 6 ft x 5 in 7 ft x 10 ft x 5 in 8 ft x 10 ft x 5 in
Legal For Trade NTEP CC 92-001, Class III, 5,000 d
Measurement Canada AM-5284
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt Hole (3/4-10NC) located in center of deck for easy liftingg
Warranty (limited) RoughDeck HP-H weldment five years, load cells two years, all other components one year
End Load Capacity 100% full scale at 20,000 lb
