| Rice Lake Roughdeck SD Polyethylene Deck Floor Scales |
 |
| The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT? support feet. Side brackets assure deck stability during washdown
|
| Rice Lake > Floor Scales |
|
|

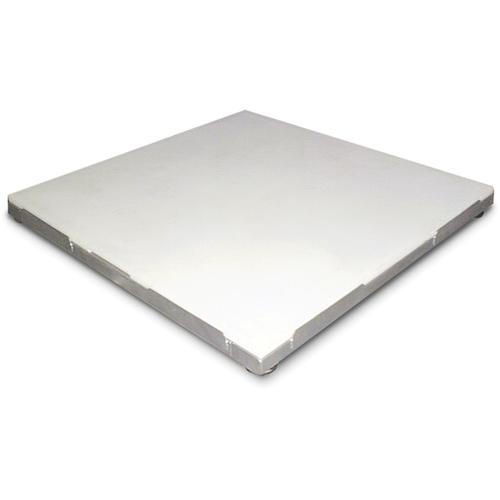

The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT? support feet. Side brackets assure deck stability during washdown.
- Rugged washdown design
- 304 stainless steel construction
- Rigid stainless steel tube frame
- 4 stainless steel, welded seal, shear-beam load cells
- Load cells protected on all four sides
- 20 ft (6 m) of SURVIVOR® EL147HE hostile environment load cell cable
- Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
- 4 adjustable stainless steel SUREFOOT? support feet
- Removable polyethylene deck (deck weight: 80 lb (36.6 kg) on 4 ft x 4 ft size)
- Side brackets to hold deck during washdown
| Models |
50385 |
50386 |
50386 |
50388 |
50389 |
50390 |
50391 |
50392 |
50393 |
50394 |
50395 |
$3,746.05
|
$3,850.00
|
$4,038.65
|
$4,038.65
|
$4,242.70
|
$4,435.20
|
$4,435.20
|
$4,571.40
|
$4,772.80
|
$4,772.80
|
$5,251.60
|
| Size (W x L) |
2.5 ft x 2.5 ft |
3 ft x 3 ft |
4 ft x 4 ft |
4 ft x 4 ft |
4 ft x 4 ft |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 6 ft |
4 ft x 6 ft |
4 ft x 6 ft |
| Capacity x Readability |
2000 x 0.5 lb
| 2000 x 0.5 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
|
| Height |
4.4 in |
4.4 in |
4.4 in |
4.4 in |
5.4 in |
4.4 in |
5.4 in |
5.4 in |
5.4 in |
5.4 in |
6.4 in |
| Legal For Trade |
NTEP CC 92-001, Class III 5000 d |
| End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb |
| Junction Box |
Stainless steel enclosure can be located up to 10 ft away from scale |
| Deck |
Removable polyethylene deck |
| Cable |
20 ft (6.1 m) (for connecting junction box to indicator) |
| Warranty |
RoughDeck SD weldment and load cells two years, all other components one year |
| Approvals |
NTEP CC 92-001, Class III 5000 d |
| Models |
50396 |
50397 |
50398 |
50399 |
50400 |
50401 |
$4,772.80
|
$4,772.80
|
$5,251.60
|
$6,608.20
|
$6,608.20
|
$7,478.40
|
| Size (W x L) |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 7 ft |
5 ft x 7 ft |
5 ft x 7 ft |
| Capacity x Readability |
2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
|
| Height |
5.4 in |
5.4 in |
5.4 in |
6.4 in |
6.4 in |
6.4 in |
| Legal For Trade |
NTEP CC 92-001, Class III 5000 d |
| End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb |
| Deck |
Constructed of two pieces of polyethylene to make up the top deck. |
| Junction Box |
Stainless steel enclosure can be located up to 10 ft away from scale |
| Cable |
20 ft (6.1 m) (for connecting junction box to indicator) |
| Warranty |
RoughDeck SD weldment and load cells two years, all other components one year |
| Approvals |
NTEP CC 92-001, Class III 5000 d |
|
|
