Salter Brecknell DSB-Series Legal for Trade Floor Scales with SBI-505 Indicator

Call Toll Free:
(800) 832-0055

Quick Jump:

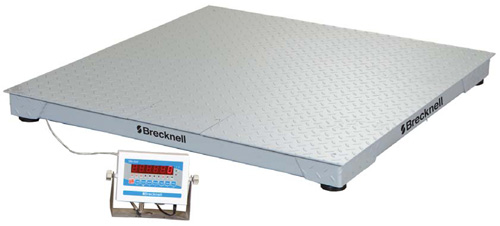

Brecknell DCSB-SBI Legal-for-Trade Floor Scales
This robust DCSB Floor Scale and Indicator System is used for a wide range of general weighing applications where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts. Ideal for most warehouse and shipping areas or where goods need to be consistently weighed.

Salter Brecknell

Legal For Trade

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

This robust DCSB Floor Scale and Indicator System is used for a wide range of general weighing applications where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts. Ideal for most warehouse and shipping areas or where goods need to be consistently weighed.

Accuracy - NTEP at 5000d, Class III
Power - 9V 600mA power supply with USA/UK/EU adapters (included) and four AA batteries (not included)
Construction - Carbon steel fabrication with 0.25" / 6 mm thick safety tread top plate & heavy duty welded channel under structure
Indicator - Comes fully calibrated with the robust aluminum SBI 240 legal-fortrade indicator
Capacity - 2500 lb x 0.5 lb / 1250 kg x 0.2 kg - 5000 lb x 1 lb / 2500 kg x 0.5 kg - 10,000 lb x 2 lb / 5000 kg x 1 kg
Display - 6½ digits 1" / 25 mm high, large seven segment LCD with white backlight
Operator Keys - Setup, Print/Func, Acc/Total, Unit/Data, Tare/Preset, Zero/On/Off

Brecknell Brecknell DCSB-SBI Legal-for-Trade Floor Scales

	Salter Brecknell CP103 Thermal Printer with Power Adapter , add $375.00
	Brecknell 816965005437 Ramp, 36 x 36 for DSB-Series, add $595.00
For 36 x 36 in Only
For 48 x 48 in Only
	Salter Brecknell 52775-0020 Ramp, 48 x 36, add $745.00
For 59 x 59 in Only
	Salter Brecknell 52775-0038 Ramp, 60 x 36, add $795.00
For SBI-240 Only
	Salter Brecknell 810036380355 Indicator Stand for SBI-100 - SBI-140 SBI-210 - SBI -240 - PS500 - PS1000 - PS2000 - PS3000, add $95.00

DCSB Specififications
Deck Construction: Fabricated from high quality carbon steel with a 1/4" / 6 mm hard wearing checker plate top deck structure and specially designed folded channel understructure to help maximize strength where needed
Finish: Powder coated finish
Load Cell: NTEP/OIML approved, IP68 potted 350 ohm +/- 3.5ƒ¶ Load Cell Rated Output: 3 mv/V
J-Box: IP65 stainless steel junction box with floor scale top access for ease of installation and service Interface Cable Length: 16�L/ 5 m
Leveling Feet: Four adjustable leveling feet with top hole access for quick installation
Threaded Eye Bolts: Four threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corner protection to prevent damage to leveling feet
Overload Protection: 150% of rated capacity
Floor Scale Height Adjustment: min 3.1" / 79 mm; max 4.1" / 104 mm
Shipping Weight with Indicator: DCSB3636: 154 lb/ 70 kg - DCSB4848: 265 lb / 120 kg - DCSB5959: 355 lb / 161 kg

SBI 240 Specififications
Indicator Construction: Die cast aluminum indicator housing with adjustable steel desk/wall bracket
Display: 6.5 digits 1" / 25 mm high, large seven segment LCD with white backlight
Operator Keys: Setup, Print/Func, Acc/Total, Unit/ Data, Tare/Preset, Zero/On/Off
Functions: Weighing, counting, check weighing, precentage weighing and accumulation Unit: lb, oz, lb/oz, kg, g, pcs, %
Protocol: Standard NCI interfaces to most common shipping software including USPS™ Worldship Online
Load Cell Capability: Can run up to four 350 ohm load cells
Excitation: 5 VDC up to 55mA Internal ADC: 16,000,000
Display Resolution: 100-100,000d primary units / 100-125,000d second unit
Communication: One USB (VCP) and one RS-232 bi-directional full duplex port
Floor Scale Connection: 9.8" / 250 mm cable is fixed to indicator side with quick release connector. An additional 16.4" / 5 mm of cable is connected to the floor scale junction box.
Annunciators: -0-, motion, gross, net, tared, total, pcs, lb, kg, lo, ok, hi
Calibration: Front panel accessible
Power: 9V 600mA, 110-230V switch mode external power supply and comes standard with USA/UK/EU interchangeable plug adapters or four AA batteries
Battery Life: 32 hours with backlight, 45 hours no backlight
Time and Date: Year/Month/Day
Operating Temperature: 14° F to 104° F / -10° C to 40° C
Dimensions (L x W x H): 9.5" x 4.9" x 2.5" 241 mm x 125 mm x 64 mm
Certifications: CE, NTEP CC #15-084 (indicator), Measurement Canada AM-5998, NTEP COC #02-070 (base) RoHS 3, UKCA, UL approved power adapter, WEEE

SBI-521 LED Indicator Indicator Construction: IP65 heavy duty stainless steel Indicator housing
Display: 0.7" / 17 mm LED display
Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Functions: Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CHG
Unit: kg, lb, lb:oz, PCS, %
Display Resolution: Up to 50,000 graduations
Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485
Digital Calibration: Front panel calibration and configuration
Power: 6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer
Battery Life: Up to 30 hours in between re-charges
Certifications: NTEP at 5,000d, Class III, CC #11-119

Specifications

Model	810036380041 SBI240DCSB-36x362500	810036380058 SBI240DCSB-48x485000	810036380072 SBI240DCSB-59x595000	810036380065 SBI240DCSB-48x4810000	810036380089 SBI240DCSB-59x5910000	816965005352 SBI521DCSB-48x485000	810036380096 SBI521DCSB-59x595000	816965005376 SBI521DCSB-48x4810000	810036380102 SBI521DCSB-59x5910000
Price	$1,339.00	$1,349.00	$1,691.00	$1,439.00	$1,785.00	$1,870.00	$2,135.00	$1,950.00	$2,195.00
Capacity x Redability	2500 x 0.5 lb	5000 x 1 lb	5000 x 1 lb	10000 x 2 lb	10000 x 2 lb	5000 x 1 lb	5000 x 1 lb	10000 x 2 lb	10000 x 2 lb
Platform Size	36 x 36 in	48 x 48 in	59 x 59 in	48 x 48 in	59 x 59 in	48 x 48 in	59 x 59 in	48 x 48 in	59 x 59 in
Legal for Trade	NTEP CC #15-084 (indicator) - NTEP COC #02-070 (base)					NTEP CC #11-119 (indicator) - NTEP COC #02-070 (base)
Functions	Weighing, counting, check weighing, precentage weighing and accumulation Unit: lb, oz, lb/oz, kg, g, pcs, %					Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CH
Communication	USB, RS-232					RS-232
Rating	-					IP65
Protocol	Standard NCI (USPS™, Worldship)					-
Display	6.5 digits 1" / 25 mm high, large seven segment LCD with white backlight					0.7" / 17 mm LED display Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
Indicator	SBI-240 (Die cast aluminum)					SBI-521 (stainless steel)
Battery Life	32 hours					30 hours
Operator Keys	Setup, Print/Func, Acc/Total, Unit/ Data, Tare/Preset, Zero/On/Off					Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off
