Itin Scale Company - your scale SuperStore
    Height Rods |  Industrial Scales |  Jewelry Scales |  Kitchen Scales |  Legal for Trade |  Medical Scales |  Retail Scales |  Shipping Scales |  Professional Medical
Sartorius Cubis II Tenth-of-a-Gram Balances 0.01 g Sartorious balances and weighing products
Authorized Dealer
The Cubis® was developed for users, who expect the best possible performance from a lab balance across the board but only want to invest in what is necessary. For this reason, Sartorius has gone far beyond simply further developing what already exists. The new Cubis® represents a groundbreaking new concept.

MCA

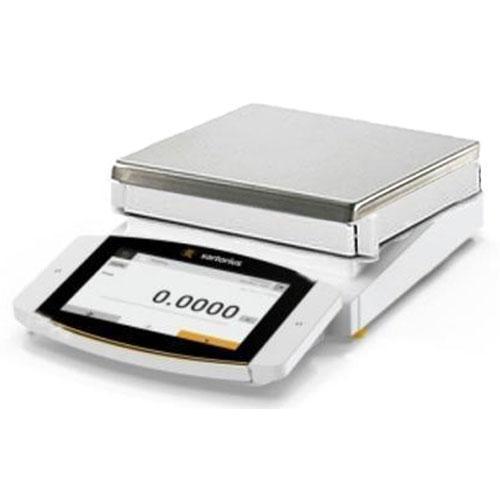

Sartorius MCA5201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 5200 x 0.1 g

Pan Size
206 x 206 mm

MCE

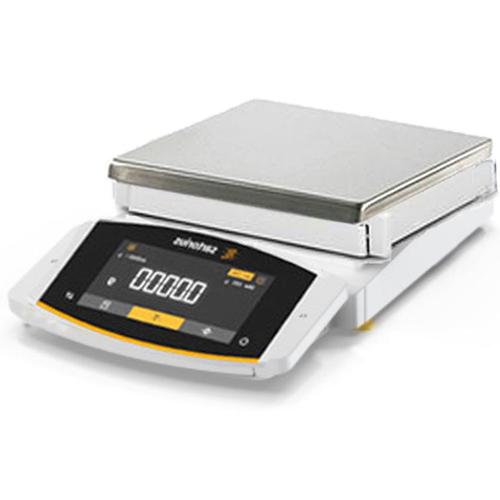

Sartorius MCE5201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 5200 x 0.1 g

MCA

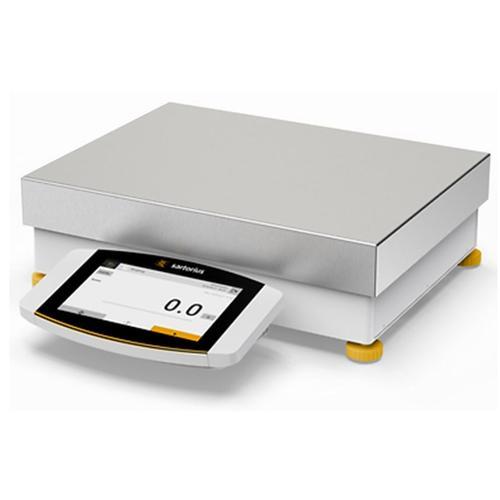

Sartorius MCA11201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 11.2 kg x 0.1 g

Pan Size
300 x 400 mm

MCE

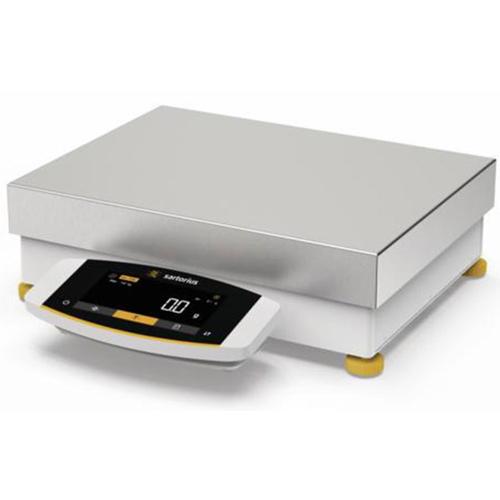

Sartorius MCE11201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 11.2 kg x 0.1 g
Find model by Capacity x Readability:

Sartorius Cubis II Tenth-of-a-Gram Balances 0.1 g

FREE UPS Ground Shipping
(within the 48 continental US States)


Specifications Chart
5200 x 0.1 g
8200 x 0.1 g
12.2 kg x 0.1 g

Specifications Chart
11.2 kg x 0.1 g
20.2 kg x 0.1 g
32.2 kg x 0.1 g

Specifications Chart
4200 x 0.01g
32.2 kg x 0.1 g

Specifications Chart
36.2 kg x 0.1 g
50.2 kg x 0.1 g
70.2 kg x 0.1 g

The New Generation of Modular Premium Laboratory Balances

For scientists in R&D and analytical laboratories needing the most reliable lab weighing results, the Cubis® II from Sartorius is a completely configurable, high performance portfolio of balance hardware and software that will align with your unique demands and compliance requirements to maximize operational efficiency and experimental outcomes.

All modules of the Cubis® II balance were designed for an intuitive operation, further aided by intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows while lowering the probability of human error during measurement.

Trusted Results The Cubis® II balance offers several advantages over other lab balances:
  • Leading Performance: the Cubis® II balance offers best-in-class performance, including high-capacity and high readability, regardless of sample type
  • Error-free Operations: Ensure a high level of trust and transparency by using Cubis® II’s functionality to assess relevant factors during data acquisition.
  • Full End-to-End Data Integrity: Ensure your data is reliable and cannot be manipulated with Cubis® II’s user management function and LIMS connectivity.
  • Reliable Support: Our lab weighing team provides expert support to help ensure your success, even when making very specific and/or unique requests.

The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 ìg to 1 g provide the ideal model for every application.

Cubis® II Display and Control Units

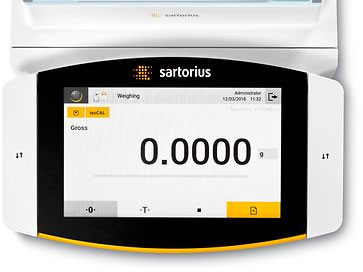

Advances User Interface MCA


Advances User Interface MCA

Large 7“ color touch display including touch, scroll, swipe functionality with factory installed essential weighing applications and diverse QApp Packages for optional software extension. Features:

  • High-performance touch screen with high resolution and brilliant colors
  • Modern user guidance with outstanding ease of use, even in complex lab situations

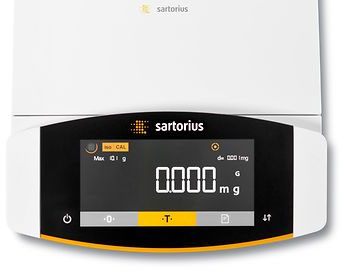

Essential User Interface MCE


Essential User Interface MCE

Large, high-contrast touch display with factory-installed essential weighing applications for easy operation of highest weighing performance. Features:

  • For users who do not have complex applications but need to weigh with the highest level of accuracy
  • High-contrast touch display with clearly structured functionality
  • Easy-to-use essential weighing applications included

Sartorius Cubis II Percision Balances 0.1 g Specs:


Model MCA5201S-2S00-0 MCE5201S-2S00-0 MCA8201S0-S00 MCA8201S-2S00-0 MCE8201S-2S00-0 MCA12201S0-S00 MCA12201S-2S00-0 MCE12201S-2S00-0
Price Sartorius MCA5201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 5200 x 0.1 g
$4,173.50
Sartorius MCE5201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 5200 x 0.1 g
$3,366.00
Sartorius MCA8201S0-S00 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan with QP99 Package 8200 x 0.1 g
$7,675.50
Sartorius MCA8201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 8200 x 0.1 g
$5,372.00
Sartorius MCE8201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 8200 x 0.1 g
$4,564.50
Sartorius MCA12201S0-S00 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan with QP99 Package 12.2 kg x 0.1 g
$8,168.50
Sartorius MCA12201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 12.2 kg x 0.1 g
$5,865.00
Sartorius MCE12201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 8.11 x 8.11 inch pan 12.2 kg x 0.1 g
$5,057.50
Preconfigured Model - - - - MCE8201S0-S00 - - MCE12201S0-S00
Preconfigured Price - - - - $4,564.50
- - $5,057.50
Capacity x Readability 5200 x 0.1 g 5200 x 0.1 g 8200 x 0.1 g 8200 x 0.1 g 8200 x 0.1 g 12.2 kg x 0.1 g 12.2 kg x 0.1 g 12.2 kg x 0.1 g
Draft Shield Type Draft Shield 0
Flat Stainless Steel Pan
Software Standerd Package All Inclusive Package QP99 Standerd Package All Inclusive Package QP99 Standerd Package
Software

MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting

MCE Factory installed basic set of essential weighing applications

Display MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface
Repeatability at 5 % load
Standard deviation of the load values, tolerance
50 mg
Repeatability at 5 % load
Standard deviation of the load values, typical value
20 mg
Repeatability near Max
Standard deviation of the load values, tolerance
50 mg
Repeatability near Max
Standard deviation of the load values, typical value
20 mg
Linearity Deviation Tolerance 100 mg
Typical value 20 mg
Tolerance 100 mg
Typical value 30 mg
Interfaces USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight 2000 g 2000 g 5000 g
Tolerance 200 mg
Typical value 100 mg
Sensitivity drift between +10 °C and +30 °C 4 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU II
Verification scale interval (e) according to Directive 2014/31/EU 1000 mg
Minimum load (Min) according to Directive 2014/31/EU 5000 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight 82 g
Typical minimum weight 82 g
Typical stabilization time 0.8 s
Typical measurement time 1 s
Recommended calibration weight 5 kg F1 8 kg F1 12 kg F1
Dimensions
MCE/MCA Weighing module (L × W × H)* 425 x 240 x 95
Electronics module (L × W × H) MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm
Weighing pan size 206 x 206 mm
Weight, approx.* 5.4 kg*
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany


Model MCA11201S-2S00-0 MCE11201S-2S00-0 MCA20201S0-S00 MCA20201S-2S00-0 MCE20201S-2S00-0 MCA32202P0-S00 MCA32202P-2S00-0 MCE32202P-2S00-0
Price Sartorius MCA11201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 11.2 kg x 0.1 g
$7,208.00
Sartorius MCE11201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 11.2 kg x 0.1 g
$6,400.50
Sartorius MCA20201S0-S00 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan with QP99  Package 20.2 kg x 0.1 g
$9,749.50
Sartorius MCA20201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 20.2 kg x 0.1 g
$7,446.00
Sartorius MCE20201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 20.2 kg x 0.1 g
$6,638.50
Sartorius MCA32202P0-S00 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan with QP99  Package 4200 x 0.01 g and 32.2 kg x 0.1g
$16,736.50
Sartorius MCA32202P-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 4200 x 0.01 g and 32.2 kg x 0.1g
$14,433.00
Sartorius MCE32202P-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 4200 x 0.01 g and 32.2 kg x 0.1g
$13,625.50
Preconfigured Model - - - - MCE20201S0-S00 - - MCE32202P0-S00
Preconfigured Price - - - - $6,638.50
- - $13,625.50
Capacity x Readability 11.2 kg x 0.1 g 11.2 kg x 0.1 g 20.2 kg x 0.1 g 20.2 kg x 0.1 g 20.2 kg x 0.1 g 4200 x 0.01 g
32.2 kg x 0.1g
4200 x 0.01 g
32.2 kg x 0.1g
4200 x 0.01 g
32.2 kg x 0.1g
Draft Shield Type Draft Shield 0
Flat Stainless Steel Pan
Software Standerd Package All Inclusive Package QP99 Standerd Package All Inclusive Package QP99 Standerd Package
Software

MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting

MCE Factory installed basic set of essential weighing applications

Display MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface
Repeatability at 5 % load
Standard deviation of the load values, tolerance
100 mg
Repeatability at 5 % load
Standard deviation of the load values, typical value
20 mg
Repeatability near Max
Standard deviation of the load values, tolerance
100 mg
Repeatability near Max
Standard deviation of the load values, typical value
20 mg
Linearity Deviation Tolerance 200 mg
Typical value 60 mg
Interfaces USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight 5000 g 5000 g 5000 g
Tolerance 300 mg
Typical value 200 mg
Sensitivity drift between +10 °C and +30 °C 2 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU II
Verification scale interval (e) according to Directive 2014/31/EU 1000 mg
Minimum load (Min) according to Directive 2014/31/EU 5000 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight 82 g
Typical minimum weight 82 g
Typical stabilization time 1.5 s
Typical measurement time 2 s
Recommended calibration weight 10 kg F1 20 kg F1 12 kg F1
Dimensions
MCE/MCA Weighing module (L × W × H)* 412 x 400 x 126/159
Electronics module (L × W × H) MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm
Weighing pan size 400 x 300 /Ø 233
Weight, approx.* 15.8/17.1
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany



Model - MCA36201S-2S00-0 MCA36201P-2S00-0 MCE36201P-2S00-0 MCE36201S-2S00-0 MCA50201S-2S00-0 MCE50201S-2S00-0 - MCA70201S-2S00-0 MCE70201S-2S00-0
Price
Sartorius MCA36201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 36.2 kg x 0.1 g
$9,324.50
Sartorius MCA36201P-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 10.2 kg x 0.1 g and 36.2 kg x 1 g
$7,879.50
Sartorius MCE36201P-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 10.2 kg x 0.1 g and 36.2 kg x 1 g
$7,072.00
Sartorius MCE36201S-2S00-0 Cubis-II Tenth of a Gram Balance - Preconfigured  Toploading 11.81 x 15.75  inch pan 36.2 kg x 0.1 g
$8,517.00
Sartorius MCA50201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 50.2 kg x 0.1 g
$11,067.00
Sartorius MCE50201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 50.2 kg x 0.1 g
$10,259.50

Sartorius MCA70201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 70.2 kg x 0.1 g
$14,518.00
Sartorius MCE70201S-2S00-0 Cubis-II Tenth of a Gram Balance - Toploading 11.81 x 15.75  inch pan 70.2 kg x 0.1 g
$13,710.50
Preconfigured Model MCA36201S0-S00 - - - MCE36201S0-S00 - - MCA70201S0-S00 - -
Preconfigured Price $11,628.00
- - - $8,517.00
- - $16,821.50
- -
Capacity x Readability 36.2 kg x 0.1 g 36.2 kg x 0.1 g 10.2 kg x 0.1 g
36.2 kg x 1 g
10.2 kg x 0.1 g
36.2 kg x 1 g
36.2 kg x 0.1 g 50.2 kg x 0.1 g 50.2 kg x 0.1 g 70.2 kg x 0.1 g 70.2 kg x 0.1 g 70.2 kg x 0.1 g
Draft Shield Type Draft Shield 0
Flat Stainless Steel Pan
Software All Inclusive Package QP99 Standerd Package Standerd Package All Inclusive Package QP99 Standerd Package
Software

MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting

MCE Factory installed basic set of essential weighing applications

Display MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface
Repeatability at 5 % load
Standard deviation of the load values, tolerance
100 mg
Repeatability at 5 % load
Standard deviation of the load values, typical value
20 mg
Repeatability near Max
Standard deviation of the load values, tolerance
100 mg
Repeatability near Max
Standard deviation of the load values, typical value
50 mg 40 mg
Linearity Deviation Tolerance 200 mg
Typical value 100 mg
Tolerance 200 mg
Typical value 150 mg
Interfaces USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight 10000 g 20000 g 20000 g
Tolerance 300 mg 500 mg
Typical value 200 mg 150 mg
Sensitivity drift between +10 °C and +30 °C 4 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU II
Verification scale interval (e) according to Directive 2014/31/EU 1000 mg
Minimum load (Min) according to Directive 2014/31/EU 5000 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight 82 g
Typical minimum weight 82 g
Typical stabilization time 1.5 s
Typical measurement time 2 s 1.5 s
Recommended calibration weight 30 kg F1 50 kg F1 70 kg F1
Dimensions
MCE/MCA Weighing module (L × W × H)* 412 x 400 x 126/159
Electronics module (L × W × H) MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm
Weighing pan size 400 x 300 /Ø 233
Weight, approx.* 15.8/17.1
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany



Model MCA36200S-2S00-0 MCE36200S0-S00 MCA70200S-2S00-0 MCE70200S-2S00-0
Price Sartorius MCA36200S-2S00-0 Cubis-II Gram Balance - Toploading 11.81 x 15.75  inch pan 36.2 kg x 1 g
$6,570.50
Sartorius MCE36200S0-S00 Cubis-II Gram Balance - Preconfigured  Toploading 11.81 x 15.75  inch pan 36.2 kg x 1 g
$5,763.00
Sartorius MCA70200S-2S00-0 Cubis-II Gram Balance - Toploading 11.81 x 15.75  inch pan 70.2 kg x 1 g
$10,778.00
Sartorius MCE70200S-2S00-0 Cubis-II Gram Balance - Toploading 11.81 x 15.75  inch pan 70.2 kg x 1 g
$9,970.50
Capacity x Readability 36.2 kg x 1 g 36.2 kg x 1 g 70.2 kg x 1 g 70.2 kg x 1 g
Draft Shield Type Draft Shield 0
Flat Stainless Steel Pan
Software Standerd Package Standerd Package
Software

MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting

MCE Factory installed basic set of essential weighing applications

Display MCA Advanced User Interface MCE Essential User Interface MCA Advanced User Interface MCE Essential User Interface
Repeatability at 5 % load
Standard deviation of the load values, tolerance
500 mg
Repeatability at 5 % load
Standard deviation of the load values, typical value
20 mg
Repeatability near Max
Standard deviation of the load values, tolerance
500 mg
Repeatability near Max
Standard deviation of the load values, typical value
20 mg
Linearity Deviation Tolerance 1000 mg
Typical value 200 mg
Interfaces USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight 10000 g 20000 g
Tolerance 1000 mg
Typical value 500 mg 600 mg
Sensitivity drift between +10 °C and +30 °C 3 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU II
Verification scale interval (e) according to Directive 2014/31/EU 10000 mg
Minimum load (Min) according to Directive 2014/31/EU 50000 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight 820 g
Typical minimum weight 820 g
Typical stabilization time 1 s
Typical measurement time 1.2 s
Recommended calibration weight 30 kg F1 70 kg F1
Dimensions
MCE/MCA Weighing module (L × W × H)* 412 x 400 x 126/159
Electronics module (L × W × H) MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm
Weighing pan size 400 x 300 /Ø 233
Weight, approx.* 15.8/17.1
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany














Your account Search Contact Us Store Directory Home page Your account Contact Us Search our site Site map and product categories
