Shimpo Grips and Adapters

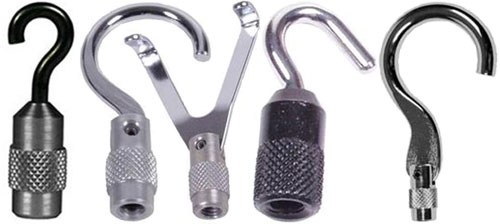

Shimpo FG-M4HK Aluminum Hook Adapter, M4 Thread For use with 0.5 and 1 lb force gauges
Shimpo FG-M6HK-AL Aluminum Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6HKL-AL Aluminum Large Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6FKL-AL Aluminum Forked Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6HK Steel Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M6HKL Steel Large Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M6FKL Steel Forked Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M10HK Steel Forked Hook Adapter, M6 Thread For use with 500 lb force gauges
Shimpo FG-M10HK-1000HX Steel Forked Hook Adapter, M6 Thread For use with 1000 lb force gauges

Model	FG-M4HK	FG-M6HK-AL	FG-M6HKL-AL	FG-M6FKL-AL	FG-M6HK	FG-M6HKL	FG-M6FKL	FG-M10HK	FG-M10HK-1000HX
Model	$22.50	$22.50	$26.10	$27.00	$26.10	$27.00	$67.50	$46.80	$108.00
Use with force gauges	0.5 and 1 lb	2 - 20 lb	2 - 20 lb	2 - 20 lb	2 - 200 lb	2 - 200 lb	2 - 200 lb	500 lb	1000 lb
Thread	M4	M6	M6	M6	M6	M6	M6	M10	M10
Type	Hook	Hook	Large Hook	Forked Hook	Hook	Large Hook	Forked Hook	Hook	Hook
	Aluminum	Aluminum	Aluminum	Aluminum	Steel	Steel	Steel	Steel	Steel

Standard Adapter Sets

Shimpo FG-M4DP Aluminum Standard Adapter Set, M4 Thread For use with 0.5 and 1 lb force gauges
Shimpo FG-M6DP-AL Aluminum Standard Adapter Set, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6DP Steel Standard Adapter Set, M6 ThreadFor use with 2 - 200 lb force gauges
Shimpo Steel FG-M10DP Standard Adapter Set, M10 Thread For use with 500 & 1000 lb force gauges

Model	FG-M4ADP	FG-M6DP-AL	FG-M6DP	FG-M10DP
Model	$76.50	$76.50	$99.00	$180.00
Use with force gauges	0.5 and 1 lb	2 - 20 lb	2 - 200 lb	500 & 1000 lb
Thread	M4	M6	M6	M10

Compression Plates

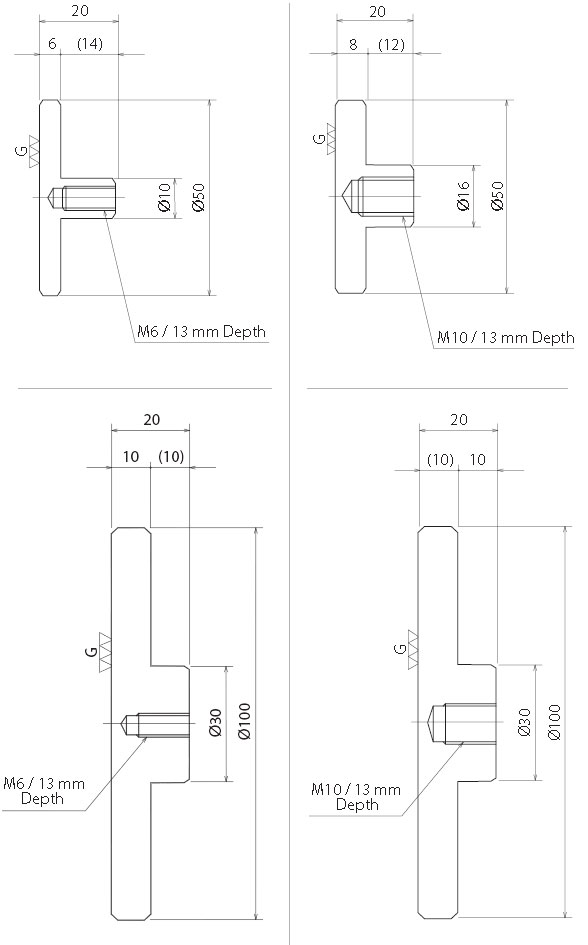

SHIMPO Compression Plate attachments, 2 in (50 mm) and 4 in (100 mm) steel compression plates with polished finish are designed for top-loading compression or crush tests. Compression Plate attachments are available in 2 in (50 mm) or 4 in (100 mm) and M6 or M10 threading.

Model	FG-M6COMP50U	FG-M10COMP50U	FG-M6COMP100U	FG-M10COMP100U
Model	$76.50	$135.00	$76.50	$139.50
Capacity	200 lb (100 kg)	200 lb (100 kg)	200 lb (100 kg)	200 lb (100 kg)
Thread Connection	M6 thread	M10 thread	M6 thread	M10 thread
Size	2 in (50 mm)	2 in (50 mm)	4 in (100 mm)	4 in (100 mm)

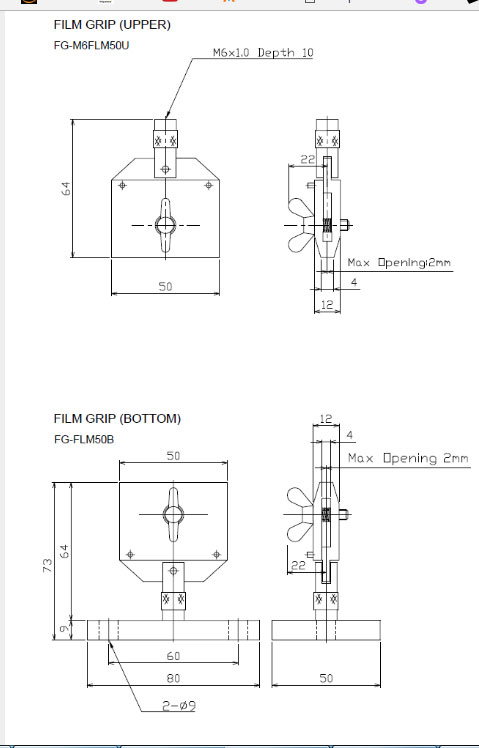

Film Grips

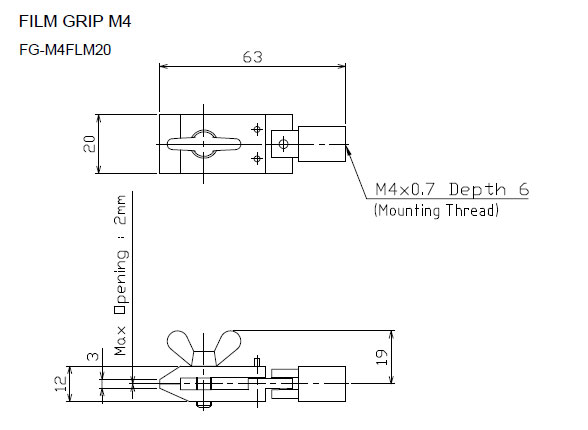

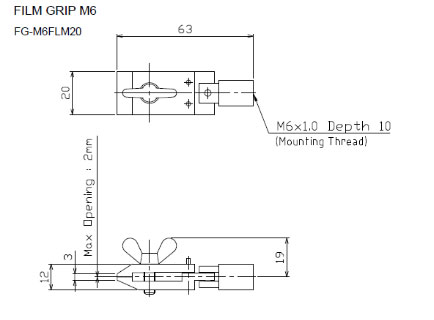

SHIMPO Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws which are ideal for handling film samples up to 0.39? (10 mm) thick and 0.79? (20 mm) or 1.97? (50 mm) wide. Grips and attachments sold individually

Model	FG-M4FLM20	FG-M6FLM20	FG-M6FLM50U
Model	$153.00	$153.00	$153.00
Range Thickness	0.079in (2 mm)	0.079in (2 mm)	0.079in (2 mm)
Width	0.79in (20 mm)	0.79in (20 mm)	1.97in (50 mm)
Capacity	100 lb (50 Kg)	100 lb (50 Kg)	100 lb (50 Kg)
Thread	M4	M6	M6

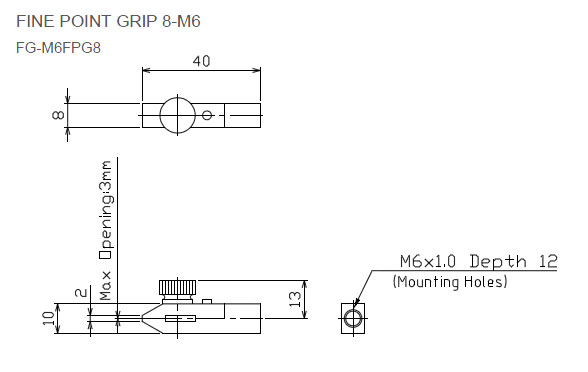

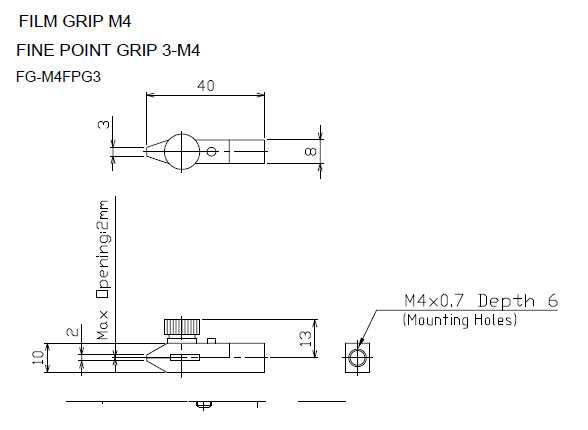

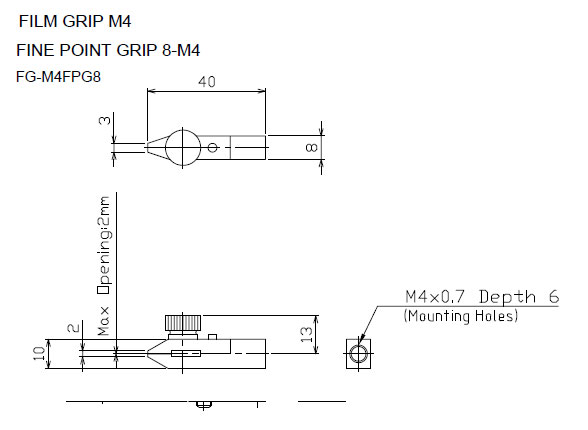

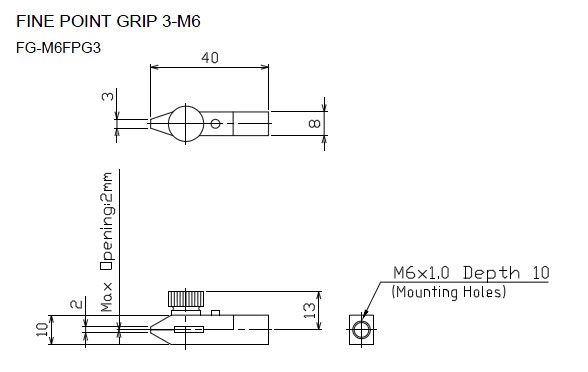

Fine Point Grips

SHIMPO?s Fine Point Grip attachments are perfect for testing fi.ne and medium gauge wire, ribbon, tape, and paper. Two jaw widths and load capacities are available; both can handle material thickness up to 0.04? (1 mm).

Model	FG-M4FPG3	FG-M4FPG8	FG-M6FPG3	FG-M6FPG8
Model	$153.00	$153.00	$153.00	$153.00
Range Thickness	0.04in (1 mm)	0.04in (1 mm)	0.04in (1 mm)	0.04in (1 mm)
Capacity	30 lb (15 Kg), 0.12in (3 mm)	60 lb (30 Kg), 0.31in (8 mm)	30 lb (15 Kg), 0.12in (3 mm)	60 lb (30 Kg), 0.31in (8 mm)
Thread	M4	M4	M6	M6

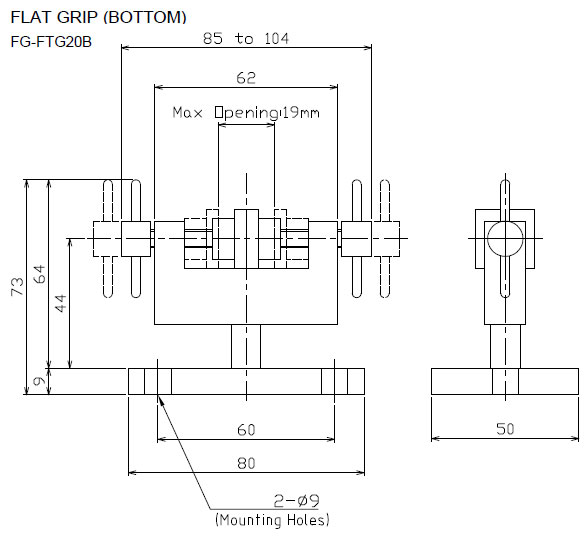

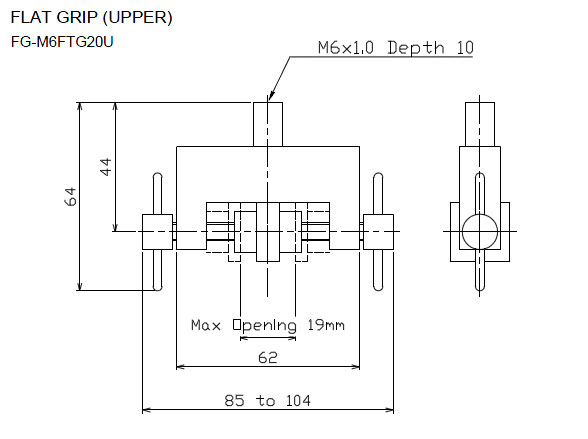

Flat Tensile Grip

SHIMPO?s Flat Chuck Tensile Grip attachments possess a 0.79? (20 mm) square, serrated gripping face that can accept samples up to 0.75? (19 mm) thick.

Model	FG-M6FTG20U
Model	$225.00
Material Thickness	0.75 inch (19 mm)
Capacity	100 lb (50 Kg)

Heavy-duty Tensile Grip

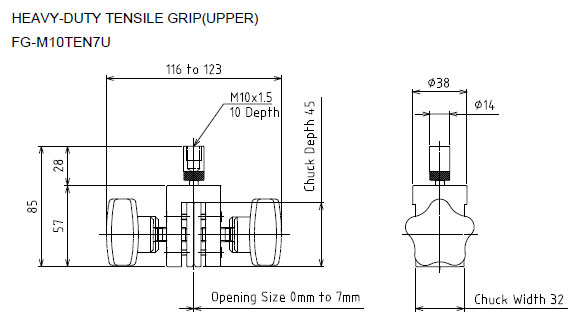

SHIMPO?s Heavy-duty Tensile Grip attachments with manually tightened jaw faces can accept samples 1.25? (31.75 mm) wide and 0.25? (6.35 mm) thick. Contact faces are serrated hardened tool steel.

Model	FG-M10TEN7U
Model	$337.50
Range Thickness	1.25? (31.75 mm) wide, 0.25? (6.35 mm) thick
Capacity	187 lb. (85 kg)
Thread	M10

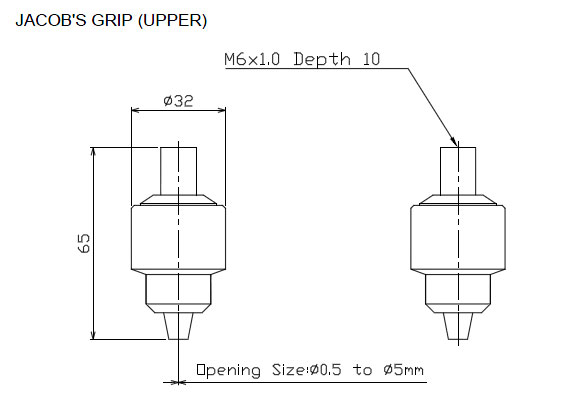

Jacobs Chuck Grip

Jacob?s Chuck Grip attachments are designed for testing low gauge wire and rigid rods. The Chuck Grip accepts material diameters from 0.02? (0.05 mm) to 0.20? (5 mm).

Model	FG-M6JAC5U
Model	$162.00
Material Diameters	0.02 in (0.05 mm) to 0.20 in (5 mm)
Capacity	100 lb (50 Kg)

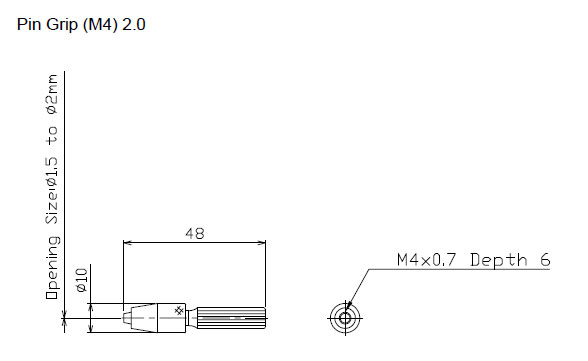

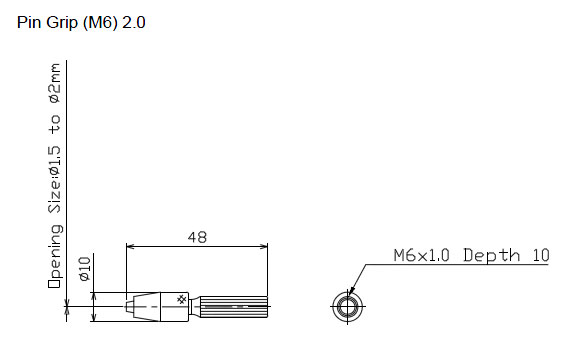

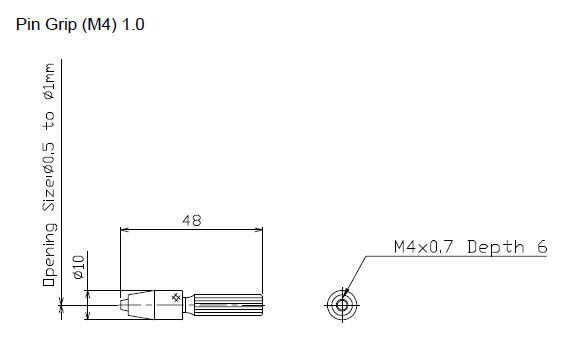

Pin Head Grip

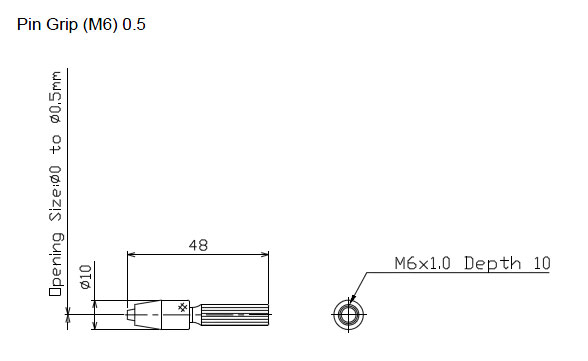

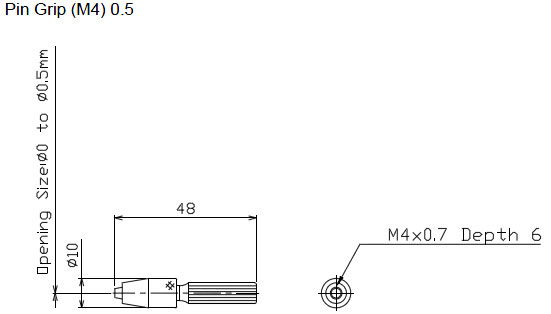

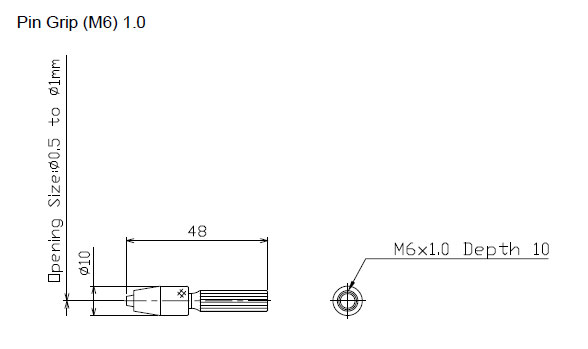

SHIMPO?s Small Pin Grip attachments are ideal for gripping fi.ne wires and .laments, which enables precise and accurate testing results for small and hard-to-hold items. With various width and load capacities available, these grips are available in three ranges for checking sample thicknesses of 0.02?, 0.04? and 0.08? (0.5, 1 and 2 mm).

Model	FG-M4PIN05	FG-M4PIN1	FG-M4PIN2	FG-M6PIN2
Model	$130.50	$135.00	$135.00	$135.00
Range	0.02 in (0.5 mm) thick	0.04 in (1 mm) thick	0.08 in (2 mm) thick	0.08 in (2 mm) thick
Capacity	22 lb (11 Kg)	22 lb (11 Kg)	22 lb (11 Kg)	22 lb (11 Kg)
Thread	M4	M4	M4	M6

Puncture Test Attachment

Puncture Test Measure the hardness or puncture resistance of a material.

A large variety of materials need to be able to withstand a specific threshold of puncture force in order to pass certain quality standards. Specifically Gypsum board, or drywall, must be tested in order to determine the ASTM Standard classification level of the product. ASTM C1629 provides details for classifying Abuse-Resistance Non-decorated Interior Gypsum Panel Products and Fiber-Reinforced Cement Panels.

Quality Technicians needing to classify their products to this ASTM standard can utilize the Nidec-SHIMPO FG-M6PUNCTURE-ST adapter. Attaching this adapter to one of Shimpo?s digital or mechanical force gauges creates an ideal testing kit for determining the indentation resistance.

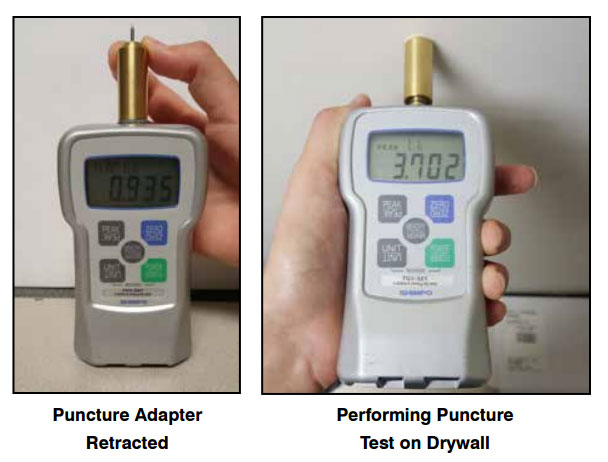

The FG-M6PUNCTURE-ST adapter operation is quite simple. The outer shell of the FG-M6PUNCTURE-ST retracts as a load is applied to the test material. As the retraction of the outer shell occurs, the pin becomes exposed. The puncture test continues until the outer shell comes to a stop from contact with the base of the force gauge. The maximum force reading displayed on the gauge is the resultant puncture resistance of the test material.

The FG-M6PUNCTURE-ST combined with the Shimpo force gauge can be used to test puncture resistance on a multitude of materials such as: foam, cardboard, cork, tubing, membranes, baked goods, and even the ripeness of fruits or vegetables.

FG-M6PUNCTURE-ST accessory
Any Shimpo Series Mechanical or Digital Force Gauge with recommended ranges of 20 lb (10 kg) to 100 lb (50 kg):

Model	FG-M6PUNCTURE-ST
Model	$76.50
Range	20 lb (10 kg) to 100 lb (50 kg)
Thread	M6

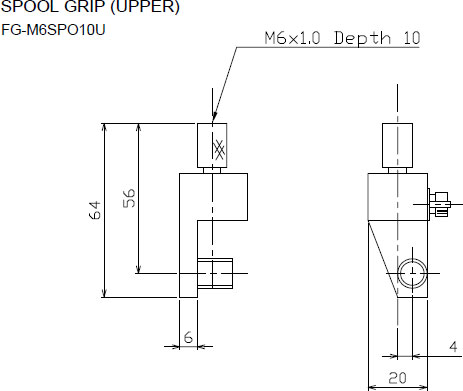

Spool Grip

SHIMPO?s Spool Grip attachments are ideal for hard-to-hold items like thread, .laments, etc. The sample is wrapped around the spool, anchored by friction

Model	FG-M6SP010U
Model	$225.00
Capacity	100 lb (50 Kg)
Thread	M6

Tape Grip

SHIMPO?s Tape Grip attachments with self-tightening lever action are the perfect fixture for testing rubber, tape and paper

Model	FG-M6SP010U
Model	$261.00
Capacity	100 lb (50 Kg)
Thread	M6

Wedge Grips

SHIMPO?s Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films. The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied.

Model	FG-M6WDG50U	FG-M10WDG500U
Model	$427.50	$1,012.50
Capacity	100 lb (50 Kg)	500 lb (250 Kg)
Thread	M6	M10

Clevis Grip

SHIMPO?s Clevis Grip easily attach and secure odd shaped parts, punched samples or tension springs. Concave shape of pins assures centering under load. Throat clearance with pin is 0.5? (12.7 mm) and can easily accept samples up to 0.375? (9.65 mm) wide. Grips and attachments sold individually (not in pairs).

Model	FG-M10CLV10U	FG-CLV10B
Model	$99.00	Call
Throat Clearance	0.5? (12.7 mm) with pin	0.5? (12.7 mm) with pin
Samples Width	0.375? (9.65 mm) wide	0.375? (9.65 mm) wide
Capacity	500 lb (250 Kg)	500 lb (250 Kg)
Thread	M10	-

Fabric Grip

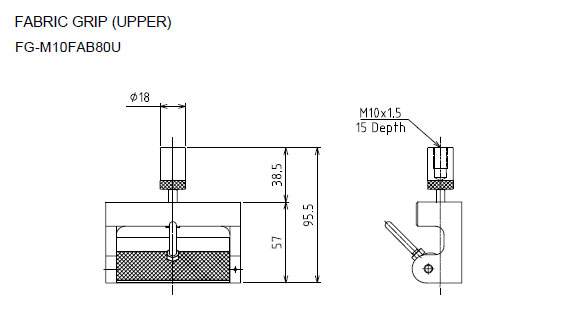

SHIMPO?s Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3? (76.20 mm) wide and 0.25? (6.4 mm) thick.Grips and attachments sold individually (not in pairs).

Model	FG-M10FAB80U	FG-FAB80B
Model	$355.50	Call
Self-tightening Jaw Width	3? (76.20 mm)	3? (76.20 mm)
Range Thickness	0.25? (6.4 mm) thick	0.25? (6.4 mm) thick
Capacity	500 lb (250 Kg)	500 lb (250 Kg)
Thread	M10	-

Cord/Twine Grip

SHIMPO?s Cord and Twine Grip attachments contain a figure 8 wrap that assures a center break. These grips feature non-locking pins which permit quick installation and release. Throat and pin clearance is 0.375? (9.65 mm) wide with the throat width being 0.5? (12.7 mm). The FG-M10TWN500U is the upper grip only while the FG-M10TWN500UB includes both the upper grip and lower bottom grip attachments.

Model	FG-M10TWN500U	FG-M10TWN500UB
Model	$337.50	$355.50
Throat Clearance	0.375? (9.65 mm) wide	0.375? (9.65 mm) wide
Throat Width	0.5? (12.7 mm)	0.5? (12.7 mm)
Capacity	500 lb (250 Kg)	500 lb (250 Kg)
Thread	M10	M10

Adhesive Test Plates

SHIMPO?s Adhesive Test Plate attachments with hardened tool steel, detachable face-plates can test samples up to 3? (76.20 mm) in diameter. Ball socket mounting screws in both grips assure parallelism and perpendicularity to force when load is applied. Grips and attachments sold individually (not in pairs).

Model	FG-M10ADHE3
Model	$562.50
Capacity	500 lb (250 Kg)
Thread	M10
