Shimpo MF Mechanical Force Gauges SHIMPO Equipment
Authorized Dealer
Incredibly durable and user-friendly, the economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications.
Call New

Specifications Chart

Shimpo MF Mechanical Push Pull Force Gauge

Price: $427.50

Shimpo MFP-HANDLE Handle for MF Series Mechanical Gauges
Shimpo MFP-HANDLE Handle for MF Series Mechanical Gauges, add $103.50
Shimpo ERGO-KIT Padded Ergonomic Testing Attachments, Set of 3
Shimpo ERGO-KIT Padded Ergonomic Testing Attachments, Set of 3, add $301.50
Shimpo CARRY-CASE-MF Replacement Carrying Case for MF Series Force Gauges
Shimpo CARRY-CASE-MF Replacement Carrying Case for MF Series Force Gauges, add $58.50

View Spec Cart

Incredibly durable and user-friendly, the economical MF mechanical force gauges are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or in quality control. The large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The MF was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected to 165 pounds (75 kg)!

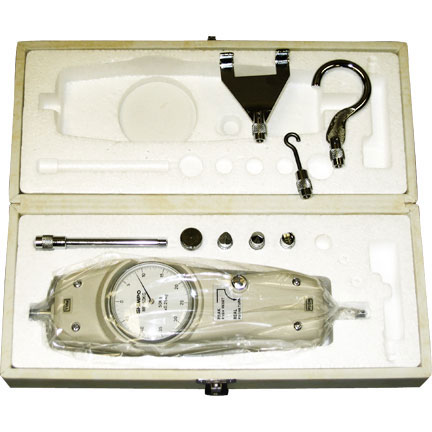

MF gauges feature a die-cast aluminum housing which mounts easily to all Shimpo Instruments test stands for even greater control of repetitive testing. All standard Series MF gauges include a protective carrying case plus attachment adapters.

A complete kit is available that includes adapters, padded ERGO accessories, handle, large rugged case and NIST traceable certificate. This kit is perfect for the professional Physical Therapist or Ergonomist that performs Isokinetic testing or job task analysis.

  • Outstanding ±0.2% F.S. accuracy makes the MF’s Ideal even for the strictest applications
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces - Only one gauge required for insertion withdrawal tests
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Exceptionally rugged die-cast aluminum housing enables usage in harshest conditions
  • Overload protected to 165 pounds (74.84 kg) protects gauge from accidental damage
  • Peak Mode Reset is an ideal for repetitive peak testing applications
  • English and metric models available satisfies many testing parameters
  • Compact, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands
  • Two year warranty provides peace of mind

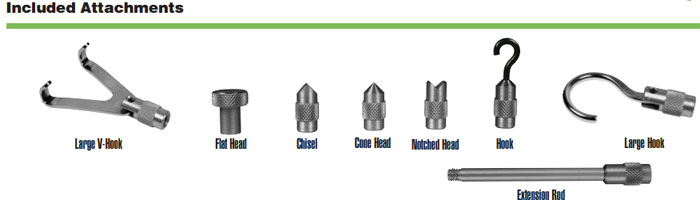

    Included Attachments
  • Carrying case
  • Large
  • V-Hook
  • Chisel
  • Cone Head
  • Notched Head
  • Hook
  • Large Hook
  • Extension Rod
Model MF-2 MF-5 MF-10 MF-20 MF-30 MF-50 MF-100
Shimpo MF-2 Mechanical Pu
$405.00
buy now
Shimpo MF-5 Mechanical Pu
$405.00
buy now
Shimpo MF-10 Mechanical P
$405.00
buy now
Shimpo MF-20 Mechanical P
$405.00
buy now
Shimpo MF-30 Mechanical P
$405.00
buy now
Shimpo MF-50 Mechanical P
$405.00
buy now
Shimpo MF-100 Mechanical
$405.00
buy now
Capacity x Dial Graduation 2 x 0.01 lb 5 x 0.025 lb 10 x 0.05 lb 20 x 0.1 lb 30 x 0.2 lb 50 x 0.25 lb 100 x 0.5 lb
Accuracy ±0.2% F.S.
Display Analog 2” in diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Product Weight 1.6 lbs (0.73 kg)
Package Weight 4 lbs (1.81 kg)
Warranty 2-Year
Included Accessories Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook)



Model MF-1KG MF-2KG MF-3KG MF-5KG MF-10KG MF-20KG MF-30KG MF-50KG
Shimpo MF-1KG Mechanical
$405.00
buy now
Shimpo MF-2KG Mechanical
$405.00
buy now
Shimpo MF-3KG Mechanical
$405.00
buy now
Shimpo MF-5KG Mechanical
$405.00
buy now
Shimpo MF-10KG Mechanical
$405.00
buy now
Shimpo MF-20KG Mechanical
$405.00
buy now
ShimpoMF-30KG Mechanical
$405.00
buy now
Shimpo MF-50KG Mechanical
$405.00
buy now
Capacity x Dial Graduation 1 x 0.005 kg 2 x 0.01 kg 3 x 0.02 kg 5 x 0.025 kg 10 x 0.05 kg 20 x 0.1 kg 30 x 0.2 kg 50 x 0.25 kg
Accuracy ±0.2% F.S.
Display Analog 2” in diameter (50 mm); rotatable 360° for taring purposes
Live/Peak Mode Selectable
Needle Update Immediate
Threaded Insert Eight M3 inserts
Overload Capacity 165 lbs (75 kg)
Product Weight 1.6 lbs (0.73 kg)
Package Weight 4 lbs (1.81 kg)
Warranty 2-Year
Included Accessories Carrying case and attachments (flat head, hook, chisel, notched head, cone head, extension rod, large hook and large V-hook)

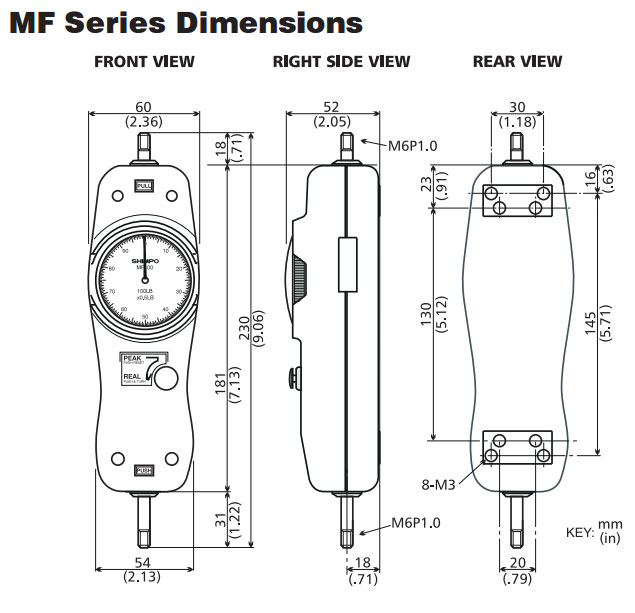

dims
