The CAS CL-5000 Scale is now Discontinued

Please take look at the new


CAS CL-5500 Scale

CL-5000B CL-5000R CL-5000H The CL5000 Label Printing Scale has the functions you need at an affordable price. Includes CL-Works software package. Use in supermarkets, specialty stores, deli's and more! Legal for Trade Features 60 lb Capacity Dual Range Standard: 3,000 PLU?s & 1,000 Ingredients Optional: 10,000 PLU?s & 1,500 Ingredients Speed Keys: CL5000B: 96 (48 keys x 2) - CL5000R: 144 (72 keys x 2) CL5000H: 144 (72 keys x 2) 50 Standard Label Formats/Up to 20 Custom Labels High Speed Thermal Printer Flash ROM for easy firmware upgrades Multiple barcode formats English, Chinese, Korean, or Spanish Characters Menu Code System CL-Works Software Package Included - PLU Editor - Label Editor - Keypad Editor - Compatible with Microsoft Windows® 2000/XP/Vista/WIN 7/WIN 8/WIN 10 Legal for Trade - COC # 07-042A2 Options: Ethernet or Wireless Networking - Expanded Memory Full Body Protective Cover Fish Pan Remote Platform Label Cartridge Model CL5000B CL5000B-60(W) CL5000B-60(NE) CL5000R CL5000H Price Weighing Capacity Dual Range 30 x 0.01 lb and 60 x 0.02 lb 15 kg x 5 g and 30 kg x 10 g Legal for Trade COC # 07-042A2 Interface RS-232C WIFI, RS-232C Ethernet, RS-232C RS-232C RS-232C Platter Size (inch/mm) 15 (W) x 9.6 (D) / 381 (W) x 244 (D) 15.3 (W) x 11.06 (D) / 389 (W) x 281 (D) Dimensions (inch/mm) 16 (W) x 17 (D) x 6.8 (H) 406.4 (W) x 432 (D) x 173 (H) 16 (W) x 17 (D) x 23.9 (H) 406.4 (W) x 432 D) x 607 (H) 16.5 (W) x 11.06 (D) x 27.8 (H) 420 (W) x 281 D) x 706 (H) Product Weight 24 lbs (10.9 kg) 25 lbs (11.3 kg) 31.3 lbs (14.2 kg) Measurement Type Load Cell Display Type VFD & Alphanumeric Display Digit 4/4/6/6 - Tare/Weight/Unit Pr/Total Pr Weight Units Lb or kg Printer Thermal Print Label Size Width: 40mm ~ 60mm Length: 30mm ~ 120mm Barcode Formats UPC, UPC13, EAN13,EAN13+5,I2of5, Code128, Code93, Codabar, and more. Keyboard Interface PS/2 Power Source AC 100~240V, 50/60Hz Operating Temperature -10°C ~ 40°C / 14°F ~ 104°F Speed Keys 96 (48 keys x 2) 144 (72 keys x 2) 144 (72 keys x 2) Label Formats 50 Standard / 20 Custom Characters English, Chinese, Korean, or Spanish Display The VFD display is used for displaying Tare, Weight, Unit Price and Total Price. The Alphanumeric Display is used for all program menus, PLU names, scrolling message, etc. The bright purple display gives high legibility for programming and promotion. PLU Keys The Double Click Call feature allows the operator to recall PLU s by double-clicking the speed key instead of having to use the shift key. The Standard Bench Model comes with 96 total speed keys, while the Pole Model & Hanging Model comes equipped with a total of 144 Speed Keys.

CAS CL5000 Series Label Printing Scales FREE UPS Ground Shipping (within the 48 continental US States) Labels by the Roll: 8000 - Non UPC Labels, $8 8010 - UPC Labels, $8 8020 - UPC with Ingredients, $8 8030 - Non-UPC with Safe Handling, $8 8040 - UPC with Safe Handling, $8 Labels by the Case: 8000 - Non UPC Labels 12 Rolls, $60 8010 - UPC Labels 12 Rolls, $60 8020 - UPC with Ingredients 12 Rolls, $60 8030 - Non-UPC with Safe Handling 12 Rolls, $60 8040 - UPC with Safe Handling 12 Rolls, $60 8051 - Continuous Strip (Blank) 12 Rolls, $75.00

Label Formats
The CL 5000 comes with 50 preset common label formats stored in memory. Up to 20 more custom label formats can be added using the label editing function of the CLWorks software program. Various die cut or continuous label sizes up to 120mm in length can be used.

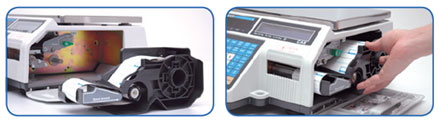

PRINTER & LABEL CARTRIDGE
Achieve print speeds up to 100 mm/sec and print resolution of 202 dpi for crisp clear labels. The removable label cartridge makes it easy for users to quickly reload labels. Designed for simplicity.

CL WORKS - PC SOFTWARE
The CL Works software program allows you to create and edit PLUs, program store information, design custom labels and unique keyboard layouts and much, much more. Compatible with Microsoft Windows® 2000/XP/Vista/WIN 7/WIN 8/WIN 10

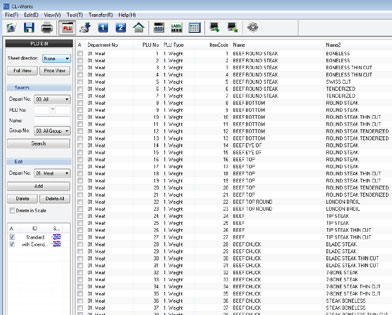

PLU Editor
Easy PLU Management control for all scales. PLU?s can be imported and exported easily

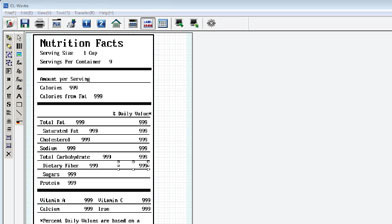

Label Editor
Create and edit custom label formats. Easily download your custom labels to the scales (Now including Nutrition Facts Label)

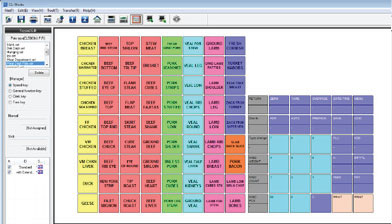

Keypad Editor
Setup and download custom keyboard designs. Use color images in your keys for easy recognition.

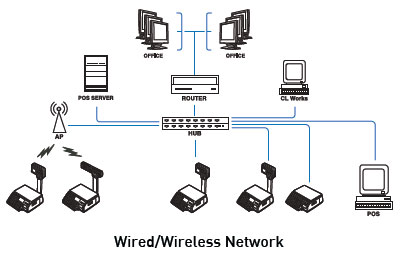

OPTIONAL NETWORKING

• TCP/IP Communication Protocol
• Up to 99 Scales
• IEEE 802.11B Specification Wireless Network
• 64/128 bit WEP Security system
• 1 to 1, Multi to Multi. Wired/Wireless Network
• Network structure suitable for large, medium or small markets

Label Formats

Label #	CAS Part #	Label Type	Label Size	Labels per Roll	Price Per Roll		Price Per Case (12 Rolls)
LST-8000	600-0002	Non-UPC	58 x 30 mm	1000	$8.00		$60.00
LST-8010	600-0001	UPC	58 x 40 mm	700	$8.00		$60.00
LST-8020	600-0005	Ingredient	58 x 60 mm	500	$8.00		$60.00
LST-8030	600-0003SH	Non-UPC Safe Handling	58 x 50 mm	600	$8.00		$60.00
LST-8040	600-0004SH	UPC Safe Handling	58 x 60 mm	500	$8.00		$60.00
LST-8051	LST-8051	Continuous Strip	58mm x 100`	-	-		$75.00
