CAS RWT-F Wireless Wheel Weighting Platform Scales

Call Toll Free:
(800) 832-0055

Quick Jump:

CAS RWT-F Wireless Wheel Weighting Scales	Authorized Dealer
The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer.
CAS Scales >> Wheel Weigher Scales

The RWT-F Series wheel weigher pads are available in 4 different sizes and 4 capacities. The ultra low profile platforms are designed to weigh trucks with a multitude of axle configurations and capacity requirements. Each wheel weigher platform includes an integral weight display, and can be wirelessly interfaced up to 12 platforms via the RWT-5000F Indicator/ Printer. Full Featured & Fully Accessorized

Each RWT-F Series wheel weigher includes (2) two rechargeable Lithium Polymer (Li-Po) batteries and optional lightweight urethane ramps

10K, 20K, 30K,& 40K Capacities
Ultra Low Profile Design - 1.4" (34mm) high
Rechargeable Lithium Polymer Battery Pack
Optional Portable Indicator w/Thermal Printer
Connect up to 12 Wireless Platforms Simultaneously
Static and In-Motion Weighing Capabilities

Build the Right Wheel Weigher System for your specific needs!

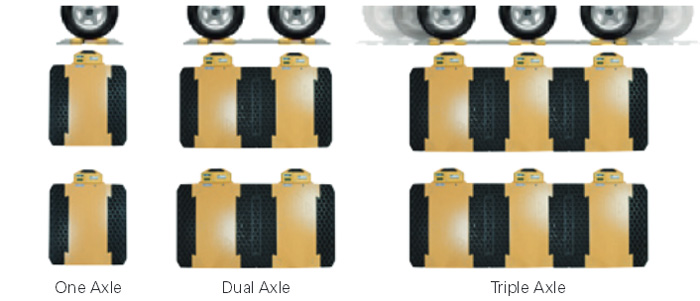

Utilizing optional dummy plates and dummy plate connectors, build a wheel weigher system that fits your specific needs! For in-motion weighing applications, use a single axle layout (2 scale platforms) including sufficient ramps and dummy plates to insure optimum level weighing conditions. For static weighing, the RWT-F wheel weighers may be joined via optional plates and connectors, allowing up to 12 platforms to be wirelessly interfaced via the RWT-5000F Indicator/Printer.

CAS Wireless Wheel Weighting
Platform Scales

Model

	CAS RWT-5000F Wireless Indicator for RWT wireless wheel weighers, add $1,350.00
	CAS RWT-DMY1 Dummy Plat for RWT wireless wheel weighers 27.6 x 10 inch, add $50.00
	CAS RWT-DMY2 Dummy Plat for RWT wireless wheel weighers 35.4 x 8.2 inch, add $50.00
	CAS CRD-2300F Wireless Remote Display - 5 Digit 2.3 Inch Display, add $360.00
	CAS CRD-3000F Wireless Remote Display - 5 Digit 3 Inch Display, add $450.00
	CAS TS25050 2 1/4 x 50ft (55g), Thermal Paper Roll, 50 Rolls/Case for RWT500F, add $46.00
Cases for RWT-505F
	CAS WIL-62179 Case for 2 x RWT-505F Scales, add $695.00
	CAS WIL-62180 Case for 4 x RWT-505F Scales, add $795.00
	CAS WIL-62181 Case for 6 x RWT-505F Scales, add $945.00
Cases for RWT-705F or RWT-710F or RWT-715
	CAS WIL-62182 Case for 2 x RWT-705F or RWT-710F or RWT-715FScales, add $875.00
	CAS WIL-62183 Case for 4 x RWT-705F or RWT-710F or RWT-715FScales, add $995.00
	CAS WIL-62184 Case for 6 x RWT-705F or RWT-710F or RWT-715FScales, add $1,125.00
Cases for RWT-910F or RWT-915F
	CAS WIL-62185 Case for 2 x RWT-910F or RWT-915F Scales, add $995.00
	CAS WIL-62186 Case for 4 x RWT-910F or RWT-915F Scales, add $1,199.00
	CAS WIL-62187 Case for 6 x RWT-910F or RWT-915F Scales, add $1,395.00
Cases for RWT-920F
	CAS WIL-62188 Case for 2 x RWT-920F Scales, add $995.00
	CAS WIL-62189 Case for 4 x RWT-920F Scales, add $1,295.00
	CAS WIL-62190 Case for 6 x RWT-920F Scales, add $1,995.00

Model	RWT-505F	RWT-705F	RWT-710F	RWT-715F	RWT-910F	RWT-915F	RWT-920F
Price	$1,710.00	$2,700.00	$2,700.00	$2,880.00	$2,640.00	$3,150.00	$3,420.00
Capacity x Readability	10,000 x 5 lb	10,000 x 5 lb	20,000 x 10 lb	30,000 x 20 lb	20,000 x 10 lb	30,000 x 20 lb	40,000 x 20 lb
Capacity x Readability	5,000 x 2 kg	5,000 x 2 kg	10,000 x 5 kg	15,000 x 10 kg	10,000 x 5 kg	15,000 x 10 kg	20,000 x 10 kg
Display	5 Digit LCD - Height: 0.6 in/15mm - Backlight
Keypad	On/Off, Zero, Sum, Backlight
Accuracy	0.1%
In-Motion Speed	Up to 6 miles per hour / 10 kilometers per hour
Operating Time	Approx 70hr
Operating Temp	-4¢ªF ~ 140¢ªF / -20¢ªC ~ +60¢ªC
Power	3.7VDC Lithium Polymer Battery
Product Weight	33.1 lbs / 15 kg	37.5 lbs / 17 kg		44.1 lbs / 20 kg	61.7 lbs / 28 kg	61.7 lbs / 28 kg	88.2 lbs / 40 kg
Safe Overload	150% of rated capacity
Warranty	2

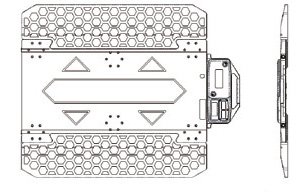

Platform Dimensions (inches)(mm)	19.7 (W) x 15 (D) x 1.4 (H)	27.6 (W) x 16.1 (D) x 1.4 (H)			35.4 (W) x 20 (D) x 1.4 (H)		35.4 (W) x 24 (D) x 1.4 (H)
Platform Dimensions (inches)(mm)	500 (W) x 380 (D) x 34 (H)	700 (W) x 410 (D) x 34 (H)			900 (W) x 510 (D) x 34 (H)		900 (W) x 600 (D) x 34 (H)
Total Dimensions (inches)(mm)	26.5 (W) x 20.9 (D) x 2 (H)	34.9 (W) x 28.8 (D) x 2 (H)			42 (W) x 33 (D) x 2 (H)		42 (W) x 37 (D) x 2 (H)
Total Dimensions (inches)(mm)	674 (W) x 532 (D) x 50 (H)	886 (W) x 730 (D) x 50 (H)			1066 (W) x 840 (D) x 50 (H)		1066 (W) x 940 (D) x 50 (H)

Sets of two

Model	RWT-505F	RWT-705F	RWT-710F	RWT-715F	RWT-910F	RWT-915F	RWT-920F
Price	$4,770.00	$6,750.00	$6,750.00	$7,110.00	$6,630.00	$7,650.00	$8,190.00
Capacity x Readability	2 x 10,000 x 5 lb	2 x 10,000 x 5 lb	2 x 20,000 x 10 lb	2 x 30,000 x 20 lb	2 x 20,000 x 10 lb	2 x 30,000 x 20 lb	2 x 40,000 x 20 lb
Capacity x Readability	2 x 5,000 x 2 kg	2 x 5,000 x 2 kg	2 x 10,000 x 5 kg	2 x 15,000 x 10 kg	2 x 10,000 x 5 kg	2 x 15,000 x 10 kg	2 x 20,000 x 10 kg
Included	CAS RWT-5000F Wireless Indicator for RWT wireless wheel weighers and 2 CAS RWT Wireless Wheel Weighing Scale

Top

Cases for CAS RWT-5000F Wireless Wheel Weighing Scale

Model	RWT-505F	RWT-705F	RWT-710F	RWT-715F	RWT-910F	RWT-915F	RWT-920F
For two Scales	$695.00	$875.00	$875.00	$875.00	$995.00	$995.00	$995.00
For 4 Scales	$795.00	$995.00	$995.00	$995.00	$1,199.00	$1,199.00	$1,295.00
For 6 Scales	$945.00	$1,125.00	$1,125.00	$1,125.00	$1,395.00	$1,395.00	$1,995.00
